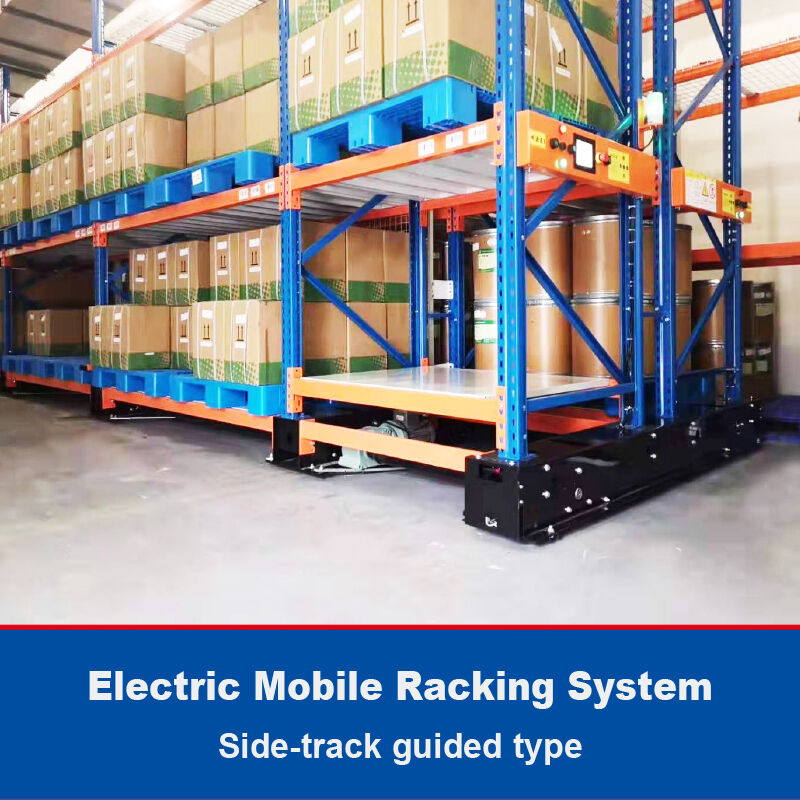

Electric Mobile Pallet Rack Rail Free Racking Warehouse Storage Rack Electric Mobile Racking

Product Description



Electric Mobile Racking
——      Rail-Free   ——



• The electric mobile racking system is ideal for users who want to expand storage but are limited by the floor space in the warehouse. The maximumly used floor space render the mobile racking system a perfect choice for cold storage.
• Only one channel, the space utilization rate is very high. The bearing trolley is driven by the motor, and the trolley is placed with beam type shelves and cantilever shelves. The frequency conversion speed regulation makes the shelves extremely stable from start to brake, and the safety is guaranteed.
• According to the bearing, electric mobile racking system can be divided into heavy, medium and light three kinds, generally heavy racks use electric control for easy movement, light and medium generally use hand movement. The shelf system can greatly improve the utilization rate of the warehouse area, so it is widely used in the media, library, finance, food and other industry warehouses.











Electric Mobile Racking · Warehouse Storage Rack · Made In China

---





Product Advantage

 —

• No ground construction required, no protrusions on the ground for easy forklift traffic；
• No damage to existing ground, simple construction, easy to move facilities；
• No track construction required, short delivery trial period; about 10-15 days shorter than rail type, easy operation；
• Maintenance: polyurethane wheels are easier to maintain; direct drive without chain is more reliable；

Comparison:



Racking type	Mobile storage racking	ASRS
Design	Racking almost the same as pallet racking	Similar as drive in rack or pallet racking
Automatic mode	Semi-automatic	Fully-automatic
Complexity	Simple	A little bit more complicated
Maintenance	Normally	Frequently
Space utilizaton	65 ~ 70%	70%~85%
Control mode	Auto / Remote control / Manual	Computer networking





Applicable Scope

 —

 Suitable for cold storage, explosion-proof and need higher warehouse utilization situations.





Technical Specifications

 —



System Type	Unit Load	Speed	Motor Power	Power	Control Mode
Rail-free	Max.32ton Unit	Max10m/min	0.4-1.5KW	AC380V(50/60Hz) AC200/220V	Manual, Automated Centralized system Remote Control





Electric Mobile Racking · Warehouse Storage Rack · Made In China

---





Structural Principles

—



Electric mobile racking system is a high-density system for optimizing the space in the warehouse, where the racks are put on mobile chassis guided through tracks on the floor, although the advanced configuration can work without tracks.

The chassis is equipped with motor enabling the racks to move along the tracks, leaving the opening for the forklift to access. Opening of only one aisle is required instead of many aisles for forklift to go through as in traditional selective racking system.

The electric mobile racking system is equipped with PLC to execute commands from the remote control by the operator, smart functions like increasing the opening gap between chassis for better air circulation could be done through PLC programming, such functions make it a semi-automated racking system.

Upright frames are fixed to the chassis, and beams are used to load the pallets and connect the uprights and chassis, sometimes shelves are used for storage of smaller items. Because the height a forklift could reach is often limited, this racking system is usually for warehouses with low and medium height.





Floor Guide

On one side of the mobile shelving, there is one set of guided angle rail to keep the mobile shelving moving in line. Under each mobile base there is no more floor rail track required for the movement of the shelving rack.





Guide Rail Mode
Single operation , in the back of the installationguide rail , does not obstruct the traffic.
High performance polyurethane wheel
The noise is smalland no damage to the ground.
The construction period is short , no concrete constructionand solidification time.





Safety Equipment

Huayide Electric Mobile racking have obtained CE certification issued by European authorities,In order to prevent safety problems caused by people or forklifts entering the aisle when the racking are running, the electric mobile racking are equipped with multiple safety devices.

During the operation of the shelf, if there is a foreign object in the aisle, or a person, a forklift enters the aisle, the electric mobile shelf will automatically stop running and issue an acoustic and visual alarm.





Advantages of electric mobile racking system:
1 ) Suitable for cold storage, explosion-proof and need higher warehouse utilization occasions;
2 ) No chain transmission, simple and reliable structure, low failure rate;
3 ) By computer control, automatic, semi-automatic, manual function;
4 ) Can realize single column movement; multi-column group movement can be realized. Uniform dispersion can be achieved;
5 ) Single lane movement is available;multi-lanes movement is available;dispersed evenly is achievable;
6 ) Set up a channel, good sealing, expand the warehouse utilization space. Compared with ordinary shelves, it can improve the warehouse utilization rate of about 80%;
7 ) Fewer channels, no need to find channels when accessing goods, high storage efficiency;
8 ) The structure of the electric mobile rack is simple, the operation is simple, not only the operation process is safe and reliable, but also the emergency movement when the power is cut off;
9 ) Electric mobile racks only need to be equipped with forward forklifts or balanced forklifts to be used. Electric mobile shelves have low operation requirements for forklifts;
10 ) With anti earthquake dumping function;
11 ) Protective measures such as emergency stop switches, photoelectric access barriers, manual release systems, proximity sensors as well as photoelectric safety barriers are in place to ensure the safety of workers and goods;













Electric Mobile Racking · Warehouse Storage Rack · Made In China

---



















Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China









Electric Mobile Racking · Warehouse Storage Rack · Made In China

---





Ensure the quality of Huayide racking products

—



1	The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2	The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3	Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4	Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
