Two Way Radio Shuttle Car Shuttle Pallet Runner Rack System Car radio shuttle racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | Two Way Radio Shuttle Car |
| Document: | Radio Shuttle Pallet Rack.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic Film Protect&Sponge |
| Delivery Time: | Negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | <50000 Kilograms |
|
Detail Information |
|||
| Name: | Two Way Radio Shuttle Car | Product Category: | Semi-Automatic Racking |
|---|---|---|---|
| Material: | Steel | Loading Capacity: | Up To 1500 Kg/Pallet |
| Surface Treatment: | Powder Coating / Galvanized | Battery Life: | At Least 1000times Recharge Cycles |
| Control Mode: | Manual, Automatic,On-line | Operation Temperature: | -30℃～45℃ |
| Highlight: | Two Way Radio Shuttle Car,Pallet Runner Rack System,Radio Shuttle Racking |
||
Product Description

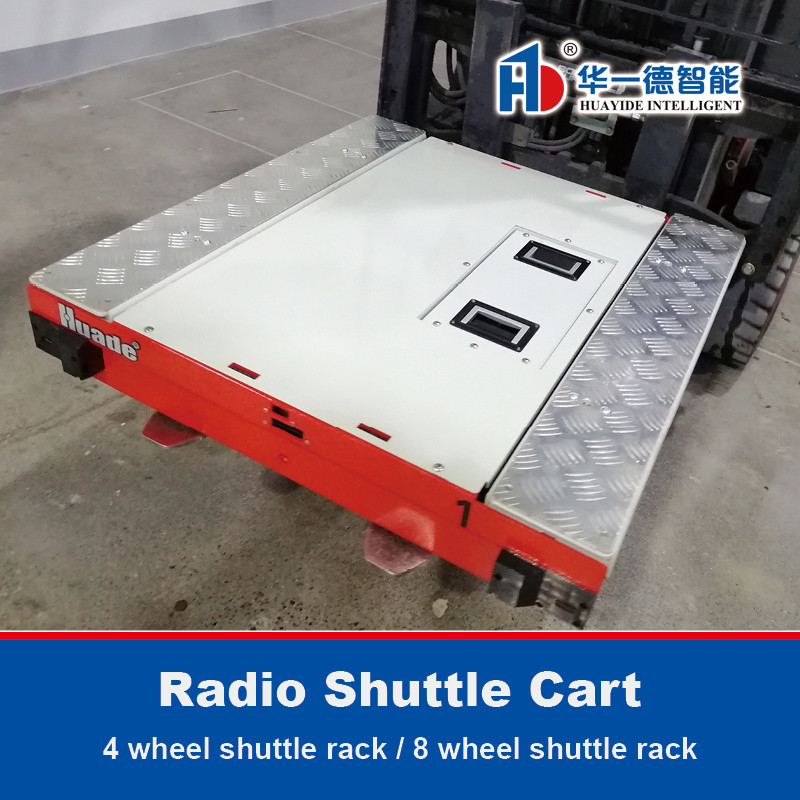

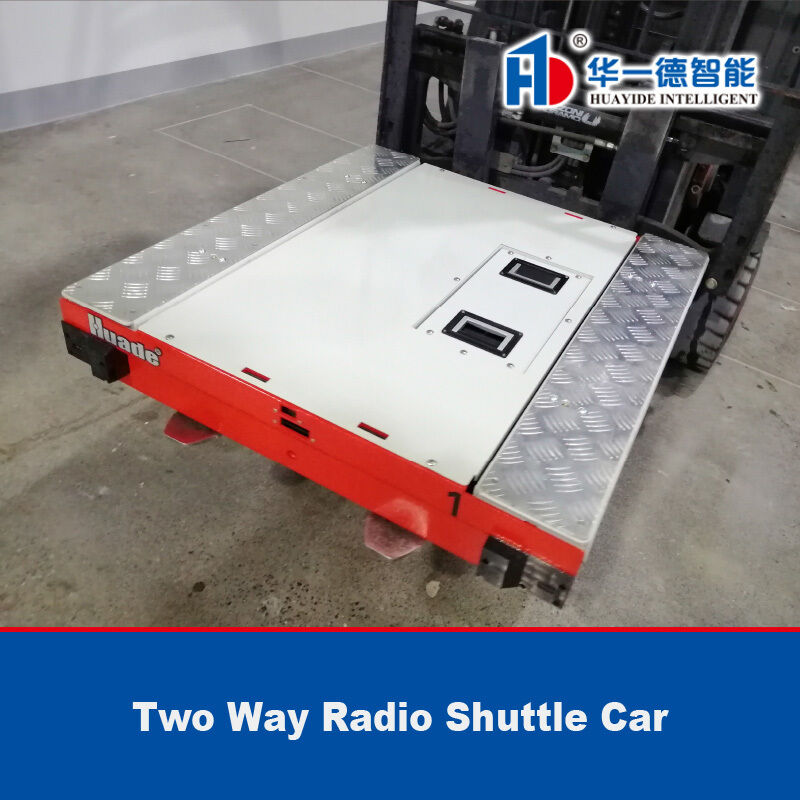

Two Way Radio Shuttle Car
——
Product Advantage
——
1) It has Vector controlled drive system and accurate positioning, meet for high-frequently input and output requirements;
2) It has perfect safety refinements and fault diagnosis function;
3) It transmits information and monitors the entire process;
4) It can operate with touch screen conveniently, easy for maintenance;
Two Way Radio Shuttle Car · Warehouse Storage Rack · Made In China
Scope of application
——
1) High quantity and low variety: industries with large batches of single products and relatively single items such as food, beverages, chemicals
2) Cold storage operations: reduce low-temperature operation time, improve work efficiency and operation safety
3) Expiration management: warehouses with strict requirements on item batches and requiring first-in-first-out operation management
4) Increase storage capacity: warehouses with limited storage space and need to maximize space utilization
Two Way Radio Shuttle Car · Warehouse Storage Rack · Made In China
Technical Specifications
——
Note: Optional cold storage model
| Shuttle model | NDCSZS101012 | NDCSZS101112 | NDCSZS101212 | |
| Power supply model | Powered by battery | Powered by battery | Powered by battery | |
|
Body size ( depth / width mm ) |
D1050/W953 | D1150/W953 | D1250/W953 | |
|
Applicable pallet size ( Pallet depth mm ) |
1000 | 1100 | 1200 | |
|
Applicable pallet size ( Pallet width mm ) |
1100~1300 | 1100~1300 | 1100~1300 | |
| Carrying weight ( kg ) | ≥1500 | ≥1500 | ≥1500 | |
| Running speed | unloaded m/s | ≥1.0 | ≥1.0 | ≥1.0 |
| fully loaded m/s | ≥0.8 | ≥0.8 | ≥0.8 | |
|
Motor power |
shuttle drive motor | 0.4KW | 0.4KW | 0.4KW |
| shuttle jacking motor | 0.37 KW | 0.37 KW | 0.37 KW | |
| Battery | Battery specifications | 24V56Ah | 24V56Ah | 24V56Ah |
| battery full battery life | 8H | 8H | 8H | |
| Charging time | 6H | 6H | 6H | |
| Battery Life | More than 1000 charge cycles |
More than 1000 charge cycles |
More than 1000 chargecycles | |
|
Remote control |
Control distance | 100 m ≤ | 100m ≤ | 100m ≤ |
| power supply model | Powered by battery | Powered by battery | Powered by battery | |
| Operating temperature | 0 ℃~45℃ | 0℃~45℃ | 0 ℃~45℃ | |
| Protection | IP65 | IP65 | IP65 | |
Two Way Radio Shuttle Car · Warehouse Storage Rack · Made In China
Two Way Radio Shuttle Car
Room Temperature Warehouse Type
—
»» Room Temperature Warehouse »»
Operating temperature: 0°C to +45°C
Two Way Radio Shuttle Car · Warehouse Storage Rack · Made In China
Two Way Radio Shuttle Car
Cold Storage Warehouse Type
—
»» Cold Storage »»
Operating temperature: -1°C to -30°C
Two Way Radio Shuttle Car · Warehouse Storage Rack · Made In China
Two Way Radio Shuttle Car
Explosive Proof Warehouse Type
—
● Meet Explosion-Proof Requirements
1 ) Material selection and processing according to explosion-proof requirements,All components meet explosion-proof requirements and have obtained explosion-proof certification.
2 ) The storage area is installed in strict accordance with explosion-proof requirements.
● Built In Safety Feature
Built in safety feature like pallet guide centralizers, rail end stoppers, photoelectric sensors, etc.
»» Explosive Proof Warehouse »»
Gas explosion-proof storage Class B
Two Way Radio Shuttle Car · Warehouse Storage Rack · Made In China
Two Way Radio Shuttle Car

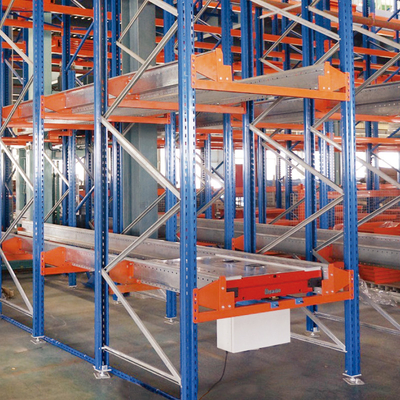

Radio Shuttle Carrier Storage System
—
»» Radio Shuttle Car & Carrier »»
Two Way Radio Shuttle Car · Warehouse Storage Rack · Made In China
Auxiliary Equipment
——
Battery Charging Equipment
Two Way Radio Shuttle Car · Warehouse Storage Rack · Made In China

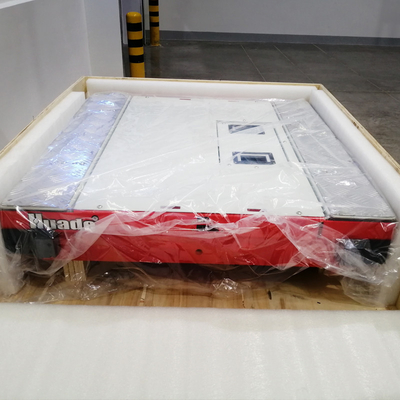

Product Packaging And Transportation
——
Two Way Radio Shuttle Car · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
