Product Details:

Place of Origin: China
Brand Name: Huayide
Certification: CE&ISO
Model Number: HYD-SR

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plastic Film Protect&Sponge
Delivery Time: Negotiated
Payment Terms: L/C, T/T
Supply Ability: <50000 Kg
Get Best Price Contact Now

Detail Information

Name: Shuttle Carrier Product Category: Fully Automated Storage System
Loading Capacity: Up To 1500 Kg Per Pallet Surface Treatment: Powder Coating/Galvanized
Operating Temperature: 0℃~45℃ Space Utilization: Ultra-High Density Storage
Principal: Fifo & Filo
Highlight:

Shuttle Carrier

,

Radio Shuttle Pallet Racking

,

Radio Shuttle Cart

Product Description

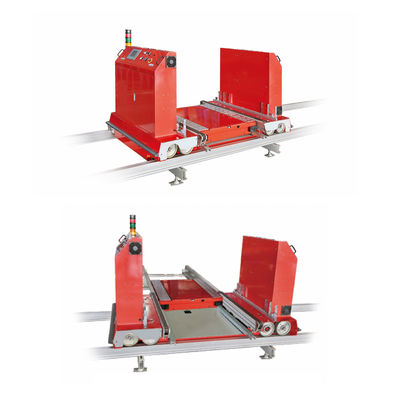

Shuttle  Carrier

It can realize non-contiguous floors and multi-area interworking layout.



Shuttle  Carrier


The shuttle carrier system consists of radio shuttles, carriers, lifts, conveyors, racks, control system and warehouse management system. It is a fully automated system for highly intensive storage



Shuttle  Carrier





Shuttle Carrier · Warehouse Storage Rack · Made In China






Product Advantage

——



  • Powered by sliding trolley conductor
  • High-speed motor with international brand
  • Stable operation 24x7 without human intervention
  • Automatic charge-discharge
  • Smart power control technology
  • Driven by super capacitor with unrestricted recharge cycles
  • Advanced smooth shuttling technology



 Shuttle  Carrier



Shuttle  Carrier



Shuttle Carrier · Warehouse Storage Rack · Made In China



Performance

——

  •  Hidden contactless sliding contact line power supply technology
  • Patented track technology
  • Excellent acceleration performance and smooth running
  • World-leading automatic non-destructive charging technology
  • Intelligent power-off control technology when changing layers
  • Advanced smoothON-OFF technology
  • Using ultra-long life super capacitor power supply technology
  • Online automatic charging, worry-free operation.



Radio Shuttle Cart And Carrier For Pallet Runner Racking Radio Shuttle Rack Shuttle Carrier 4



Radio Shuttle Cart And Carrier For Pallet Runner Racking Radio Shuttle Rack Shuttle Carrier 5



Shuttle Carrier · Warehouse Storage Rack · Made In China






Technical Specification



Type of the carrier

Non-layer-changing model  Layer change model

carrier Model

NDCSZS NDCSZM

carrier power supply model



Sliding contact

line power



Powered

by battery



Sliding contact line power



Powered

by battery

Carrying weight

1500≤ 1500≤ 1500≤ 1500≤

Applicable pallet size

(Pallet length mm)

1100~1300 1100~1300 1100~1300 1100~1300

Running speed

carrier unloaded

m/s

2.5≤ 1.5≤ 2.5≤ 1.5≤

carrier fully loaded

m/s

2.0 ≤ 1.0 ≤ 2.0 ≤ 1.0≤

shuttle unloaded

m/s

1.0 ≤ 0.9 ≤ 1.0 ≤ 0.9 ≤

shuttle fully loaded

m/s

0.6≤ 0.5≤ 0.6 ≤ 0.5≤

motor power

carrier drive motor

2.2 KW

(AC380V)

1.5 KW

(DC48V)

2.2 KW

(AC380V)

1.5 KW (DC48V)

carrier chain motor

0.4 KW

(AC380V)

0.4 KW

(DC48V)

0.4 KW

(AC380V)

0.4 KW (DC48V)

shuttle drive motor

0.4 KW 0.4 KW 0.4 KW 0.4 KW

shuttle jacking motor

0.37 KW 0.37 KW 0.37 KW 0.37 KW

carrier battery

battery capacity

- 80 Ah - 80 Ah

battery full battery life

- 8H - 8H

Charging time

- 8H - 8H

shuttle battery

battery capacity

Super capacitor

56AH

(DC24V)

Super capacitor

56AH

(DC24V)

carrier&shuttle charging mode

Online

Online

Online

Online

control method

 Manual, Automatic,

Online

 Manual, Automatic,

Online

 Manual,

Automatic,

Online

 Manual,

Automatic,

Online



Shuttle Carrier · Warehouse Storage Rack · Made In China






CASE





 Shuttle Carrier



Shuttle Carrier

Shuttle Carrier





Shuttle Carrier · Warehouse Storage Rack · Made In China

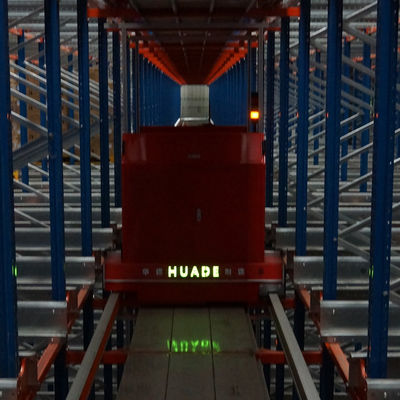

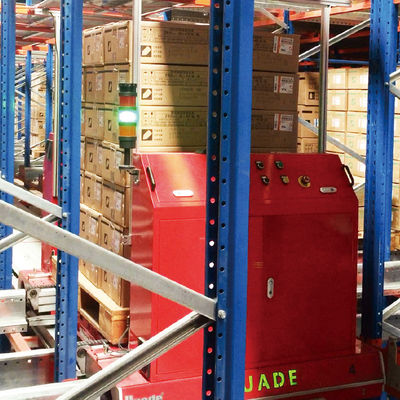

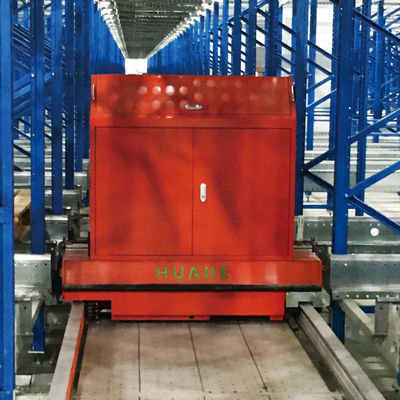

Production Scenarios

——





Shuttle Carrier

Shuttle Carrier



Four-way Shuttle Intelligent Warehouse Storage System



Shuttle Carrier · Warehouse Storage Rack · Made In China






Ensure the quality of Huayide racking products



1 The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2 The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3 Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4 Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
