Product Details:

Place of Origin: China
Brand Name: HUAYIDE
Certification: CE&ISO
Model Number: HYD-PR

Payment & Shipping Terms:

Minimum Order Quantity: 1000KGS
Price: USD1.1~1.29/KGS
Packaging Details: Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack .
Delivery Time: 10-20 working days
Payment Terms: L/C, T/T
Supply Ability: 900000KGS per Month
Get Best Price Contact Now

Detail Information

Name: Push Back Pallet Racking Use: Warehouse Rack
Finish: Powder Coated Load Capacity: 1000-1500kgs Per Pallet
Beam Type: P-Shape Mill Tube Beam; Box Beam; Z-Shape Step Beam Feature: Save Space
Application: Normal Temperature Or Cold Room (Max -40C) OEM: Available
Highlight:

Push Back Pallet Racking

,

Push Back Rack

,

Push Back Racking

Product Description





Push Back Pallet Rack

——





Push Back Racking





Push Back Pallet Racking systems are available in structural or roll-formed frames. The systems work by placing pallet loads on a series of nesting carts fed forward by gravity on rigid structural steel rails. As a pallet is loaded from the front, it pushes the pallet behind it back one position. When unloading, the front pallet is removed and the rear pallets automatically come forward to the front picking position. This allows for easily accessible Last-In-First-Out (LIFO) inventory management. Operators can store product from 2-5 pallets deep, with front-only loading from a single aisle. Push Back offers more versatile storage than Drive-In rack because each lane flows independently and vertical storage operates separately from lanes below. Multiple pick facings for a variety of SKUs can be stored and retrieved without disturbing other product above or below in a single-lane or double-lane format.





Push Back Pallet Racking High Density Warehouse Storage Racking Push Back Rack 1








Push Back Pallet Rack



— Push Back Pallet Racking >www.heavyracking.com< Made In China —






Structural Principles

——



Push Back Pallet Rack High Density Warehouse Storag Rack



Push Back Pallet Rack High Density Warehouse Storag Rack



Push Back Pallet Rack High Density Warehouse Storag RackPush Back Pallet Rack High Density Warehouse Storag Rack

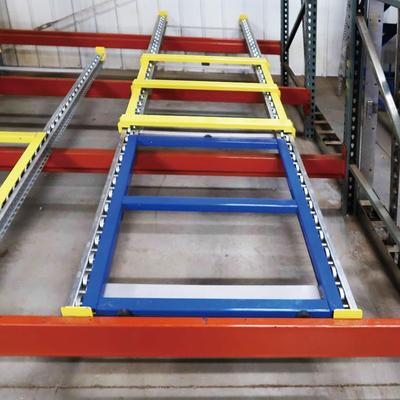

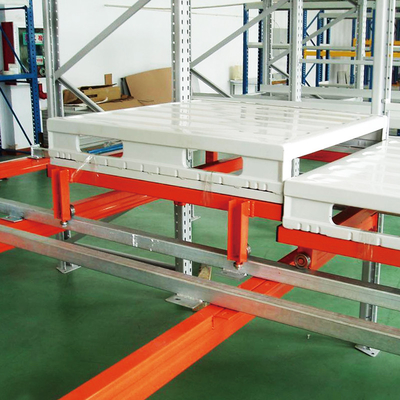

Cart



Push Back Pallet Rack High Density Warehouse Storag Rack





Push Back Pallet Rack High Density Warehouse Storag Rack



Middle Cart:Made of square tube. To save cost, the structure could be as simple as in above picture. Each has 8 bearing. Design could be different as clients' needs.





Push Back Pallet Rack High Density Warehouse Storag Rack



Small Cart or 1st Cart:Made of angle steel, square tube. To save cost, the structure could be as simple as in above picture. Each has 8 bearings. Design could be different as clients' needs.



Push Back Pallet Rack High Density Warehouse Storag Rack





— Push Back Pallet Racking >www.heavyracking.com< Made In China —






Push Back Pallet Racks with Different Depths





Push Back Pallet Rack High Density Warehouse Storag Rack



Push Back Pallet Rack High Density Warehouse Storag Rack





— Push Back Pallet Racking >www.heavyracking.com< Made In China —






Store & Withdraw

——



Push Back Pallet Rack High Density Warehouse Storag Rack


Loading
Carrying cart runs along the inclined support rail. 1st pallet is placed on the carrying cart, 2nd pallet pushed back 1st pallet into the rack, 3rd pallet push the front 2 pallets into rack, the rest keep the same operation.

Unloading
Pallet at the pick-up end is carried out first, the next pallet slides to the pick-up point by gravity for unloading, other keep
the same. Unlike drive in pallet rack, forklift truck don’t drive into the rack



— Push Back Rack >www.heavyracking.com< Made In China —






Product Information



Rack Type
push back pallet rack
Rack Cost
Low, Medium Low,Medium,Medium high,High,Higher
Pick-up Mode
first in, last out(FILO)
Structure
knock down or bolted
Forklift Aisle
around 3200mm,depends on customer's forklift parameter
Load Capacity & Dimension
Load capacity
≤1500kgs/pallet
Size
customized based on clients pallet

Components
core components
frame(upright,also called column or post,bracing,base plate,fasteners),
beam,support rail,cart,spacer
other
upright protector,frame protector, guide rail, protect mesh
Core Components Specification
upright(mm)
80×60, 90×60, 90×70, 100×70, 120×95, 120×135
beam(mm)
80×50, 100×50, 110×50, 120×50, 130×50, 140×50, 160×50
Finish
Epoxy resin electrostatic spraying(powder coating),galvanized
Coating thickness
no less than 60um for average thickness for powder coating
Material
Q235B, or Q355


Color
ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers





— Push Back Pallet Rack >www.heavyracking.com< Made In China —








CASE





Push Back Pallet Rack High Density Warehouse Storag Rack

Push Back Pallet Rack High Density Warehouse Storag RackPush Back Pallet Rack High Density Warehouse Storag Rack



— Push Back Rack >www.heavyracking.com< Made In China —



 Push Back Pallet Rack High Density Warehouse Storag Rack





— Push Back Rack >www.heavyracking.com< Made In China —





Push Back Pallet Rack High Density Warehouse Storag Rack

 Push Back Pallet Rack High Density Warehouse Storag Rack



— Push Back Pallet Rack >www.heavyracking.com< Made In China —



Push Back Pallet Rack High Density Warehouse Storag Rack Push Back Pallet Rack High Density Warehouse Storag Rack

Push Back Pallet Rack High Density Warehouse Storag Rack





— Push Back Pallet Rack >www.heavyracking.com< Made In China —





Push Back Pallet Rack High Density Warehouse Storag Rack



Push Back Pallet Rack High Density Warehouse Storag Rack Push Back Pallet Rack High Density Warehouse Storag Rack



— Push Back Pallet Rack >www.heavyracking.com< Made In China —





Push Back Pallet Rack High Density Warehouse Storag Rack

Push Back Pallet Rack High Density Warehouse Storag Rack



— Push Back Pallet Rack >www.heavyracking.com< Made In China —




Ensure the quality of Huayide racking products



1 The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2 The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3 Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4 Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
