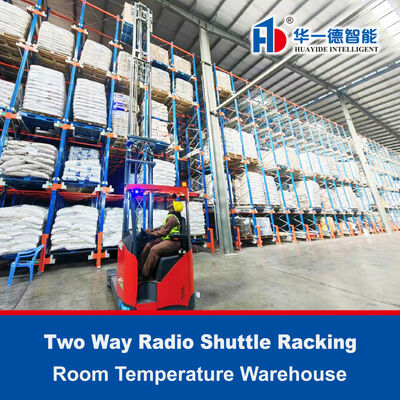

Two Way Radio Shuttle Racking Pallet Runner Rack System Room Temperature Warehouse
Product Details:
| Place of Origin: | China |
| Brand Name: | HuaYiDe |
| Certification: | ISO&CE |
| Model Number: | Radio shuttle racking |
| Document: | Radio Shuttle Pallet Rack.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 15 to 20 working days . |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS Per Month |
|
Detail Information |
|||
| Name: | Radio Shuttle Racking | Color: | RAL Color |
|---|---|---|---|
| Strong Bearing Capacity: | Up To 1.5t Above | Feature: | Corrosion Protection, Secure, Save Space,Corrosion Protection |
| Height: | 5~15m | Material: | Steel |
| Type Of Storage Medium: | Pallet, Metal Cage Or Others | Full Load Speed: | 45m/Min |
| Deep In: | 40m | ||
| Highlight: | Radio Shuttle Racking,Pallet Runner Rack System,Shuttle pallet Rack |
||
Product Description

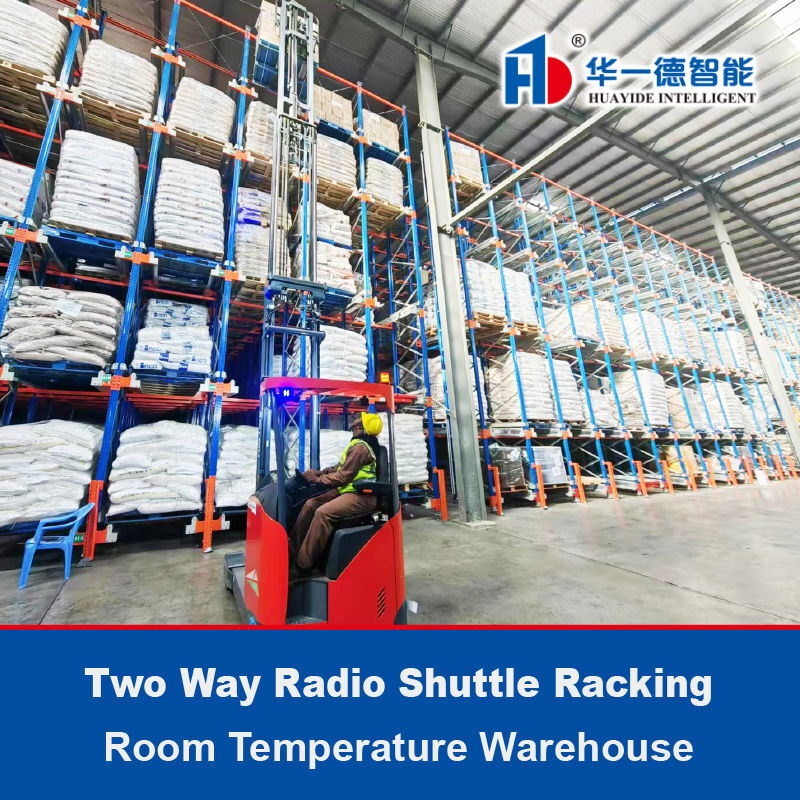

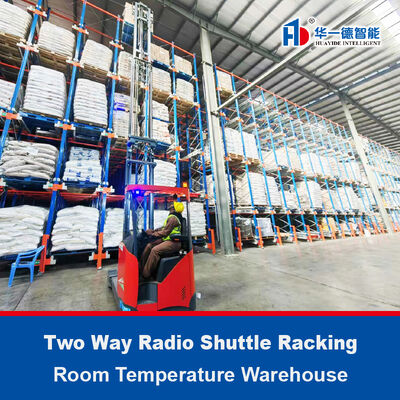

Two Way Radio Shuttle Racking
——
Room Temperature Warehouse
Operating temperature: 0°C to +45°C

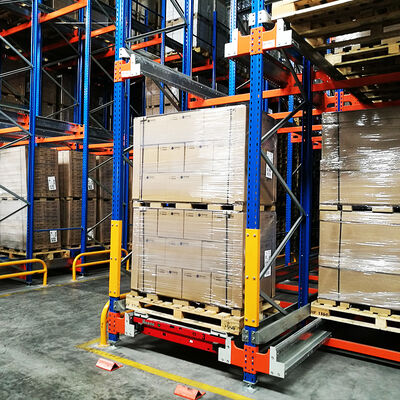

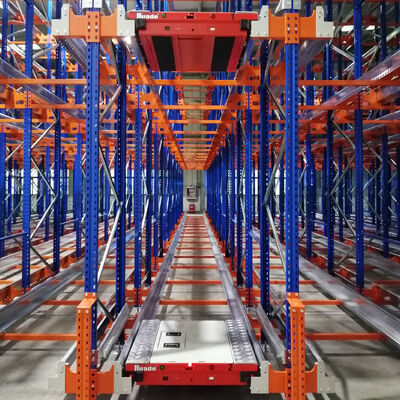

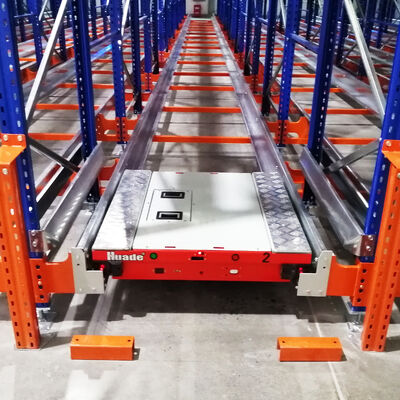

HUAYIDE Radio Shuttle Pallet Rack System is a semi-automated system conjunction with forklift trucks for storage of goods with low variety but high volumes per SKU. This system is highly recommended in manufacturing businesses, Shuttle Racking System is a high-density storage system. The shuttle cart, which is controlled by a wireless remote, takes the pallets in and out of the racking system.
The forklift don’t need to enter the storage area. The first pallet’s location at either end is where the forklift loads and unloads the goods. The system could achieve both FIFO and FILO modes.
● What industry is applicable to Shuttle Racking System?
The shuttle cart can be widely used in various fields such as army, pharmacy, foods, beverage, freezer, machinery, flexible wire,storage, appliances, metallurgy, ports, airports, commercial and high-tech etc.
● Customization
Please let us know the following information for a quick quote: 1. The size of your warehouse; 2. Shelf width and depth; 3. Shelf system height; 4. How many layers do you want; 5. The bearing capacity of each layer; 6. All the colors you want.
We are one of the professional factories in china that are good at the planning, design, manufacture and installation of shuttle racking system. If you have any inquiry of radio pallet shuttle rack, welcome to contact us. And the customized orders are also welcome.
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Construction Site
——
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Accessories
——
»» Two Way Radio Shuttle Car »»
Battery Charging Equipment
Rescue Car
Our company is equipped with a rescue cart system, which ensures safe operation and can both rescue malfunctioning carts and address abnormal cargo situations in the passage.
»» Very Narrow Aisle Fork-type Autonomous Mobile Robot »»
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Product Structure
——
| 1 ) Column | 2 ) Adjustable feet | 3 ) Frame Spacer | 4 ) Diagonal Brace |
| 5 ) Lateral Bracing | 6 ) Rail support Beam | 7 ) Rail Bracket | 8 ) Pallet Rail |
| 9 ) Pallet Guide Plate(Entry Guide) | 10 ) Shuttle Cart Stopper | 11 ) Lateral Bracing | |
| 12 ) Forklift Stopper | 13 ) Radio Shuttle | 14 ) Remote Control | |
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Product Advantage
——
● Advantages of the Pallet Shuttle system
1) Time savings and productivity gains: the shuttle executes orders speedily, and the forklift operates in the aisle without entering the racking. This shortens loading/unloading times and raises the number of cycles/hour.
2) Space savings: storage channels can exceed 60 m in depth, while clearances between levels are minimal, increasing storage capacity.
3) Cost savings: the optimal use of space reduces the system's footprint, thus keeping down land costs. And in cold storage warehouses, this means less surface area to be cooled, resulting in lower energy consumption.
4) Multiple SKUs: grouping SKUs by channels as opposed to complete lanes allows for greater product diversity in the storage system.
5) Compatible with LIFO and FIFO: the system can operate in line with the LIFO (last in, first out) or FIFO (first in, first out) inventory management strategies.
6) Easy to use: all system functions are activated from the control tablet, which is equipped with an intuitive user interface.
7) Safety: as the forklifts do not operate inside the racking, the metal structure remains free from damage, and the risk of accidents is minimized.
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Product Packaging And Transportation
——
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
