B15 Rack Guard Rack protectors Anti-Collision Guardrails Warehouse Safety Barrier Traffic Guardrails
Product Details:
| Place of Origin: | ANHUI |
| Brand Name: | HYD |
| Certification: | ISO |
| Model Number: | HYD-RUP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 30 ~ 230 per set |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Product Category Names: | FS-2021A Warehouse Anti-Collision System | Material: | Memaplex Macromoleclar Polymer |
|---|---|---|---|
| Color: | Yellow And Balck | Usage: | Rack Upright Protector |
| Size: | Customized | Structure: | Assembled Freely |
| Feature: | Anti-Collision | Keyword: | Flexible |
| Highlight: | Rack Protector,Anti-Collision Guardrails for Racking,Traffic Guardrails |
||
Product Description
Rack Guard
——
FS-2021A
Flexible · Plastic · anti-collision
Application Scenario ——
Suitable for the protection of shelf columns to avoid damageto fragile shelves caused by forklifts.
Shelf column section size
—
|
name |
75-85 type |
90-100 type |
110-120 type |
| A |
75~85 |
90~100 |
100~120 |
| B |
20~30 |
34~45 |
40~75 |
Material: It is exclusively developed with imported polymer plastic raw materials, which has strong weather resistance and is not easy to age; the color is natural, and the UV resistance conforms to the ISO4892-3 standard.

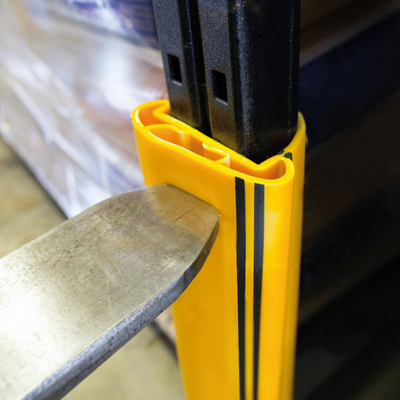

Absorbable impact energy:
3.0 Tons Vehicles , 3.0 Km/h Speed,90° between the forklift and the column foot protection, the impact of the forklift tail on the foot protection.
Rack Protector · Warehouse Storage Rack · Made In China
Installation Steps
——
Rack Protector · Warehouse Storage Rack · Made In China
|
Product Name
|
Rack protections |
| Type | Column Protection-Flexible Plastic |
| Material | Imported Polymer Plastics |
| Maximum load | 3 Tonne vehicle at 3.0 km/h |
| Overall length | 126mm/136mm/168mm |
| Height | 86mm/99mm/130mm |
| Application | Protection of shelf pillars, to avoid damage caused by forklifts to fragile shelves. |
| Advantages | Withstands multiple impacts and returns to its original form |
| Color | Yellow |
| Certified | Refer to PAS13 TUV certified |
| Description | Developed exclusively using imported polymer plastic raw materials, it has strong weather resistance and is not prone to aging; The color is natural and meets the ISO4892-3 standard for UV resistance; Strong chemical resistance, no corrosion, and extremely low chemical activity. |
Product Description
——
1. It is easy to install and disassemble, and can be stacked to the required height.
2. Bright yellow provides excellent visual reference for drivers and other warehouse personnel.
3. Prevent forklift truck and pallet truck from damaging the shelf.
4. It can bend repeatedly and absorb energy when impacted, thus reducing the need for replacement.
5. The product is not easy to fade, durable, no need to repaint, UV protection and testing in line with SO4892-3 standards.
