B17 Drive in Rack Heavy Duty Pallet Rack Drive Through Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-DRI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Type: | Drive In Through Rack | Loading Capacity: | 500-1000kg |
|---|---|---|---|
| Height: | Customized | Color: | RAL System |
| MOQ: | 1 Set | Width: | Customized |
| Port: | Shanghai Prot | Certification: | CE |
| Material: | Q235 Steel | ||
| Highlight: | Drive in Rack,Heavy Duty Pallet Rack,Drive Through Racking |
||
Product Description

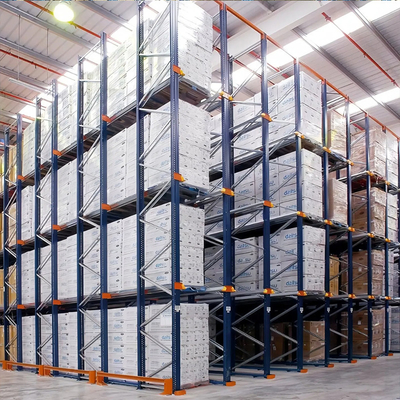

Drive In Racking
—
Drive in racking is also known as drive through racking. It is suitable for the storage of goods at same size by large quantitles, with higher space utilization and lower cost. It has no special channel for trollys and trucks, when storing goods the forklift operates from inner side to outer side, but oppositely when picking, that is called first-in, last-out.
Drive in racking provides a high-density and very space-efficient. Drive In or Double Access Systems (Drive through Racking) consists of continuous lanes of racking with only a single load and retrieval aisle. Loading and unloading is undertaken by means of counter balance or reach trucks that drive down each lane into the racks.
Drive In Racking · Warehouse Storage Rack · Made In China
Feature
—
• Very high utility ratio of the warehouse.
• Can first in - first out or first in - last out
• Structural steel construction for durability
• Pallet positions configure from 2 to 5 deep and 2 to 5 high deal for roofing
• Finish: Powder coating and various color be available.
• Suitable for storing few type of goods with large quantity
• Widely used in milk, drink industry, and also be welcomed by cold storage.
Drive In Racking · Warehouse Storage Rack · Made In China
Structure
—
Drive In Racking · Warehouse Storage Rack · Made In China
Our Feature
—
1. The support rail, storage pallet according to the depth direction, one followed by one, which makes high-density storage possible.
2. Cargo access from the shelves and out of the same side, after the first deposit check and balance weight and reach trucks can easily access of goods into the middle shelf, without taking a number of channels.
3. This racking for storing large quantities and less variety of goods.
4. Plug into the rack assembly of the whole structure, column structure film was fabricated, the total depth of the shelf against the wall region can be designed for the maximum depth of less than 7 pallets, in the middle region could total depth on both sides of the shelves and out usually in the depth of 9 pallets in order to improve the efficiency and reliability of the forklift access.
5. Widely used in various warehouses and logistics centers such as: food, tobacco, dairy and beverage industries, cold storage is also more prevalent.
Drive In Racking · Warehouse Storage Rack · Made In China
Product Parameters
—
| Length | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 |
| Beam Specification | Load/kg | |||||||
| 80×50 | 3000 | 2300 | 1800 | 1500 | 1200 | 1000 | 800 | 700 |
| 100×50 | 4000 | 4000 | 3000 | 2400 | 2000 | 1750 | 1400 | 1100 |
| 120×50 | 4000 | 4000 | 4000 | 3500 | 3000 | 2500 | 2000 | 1800 |
| 140×50 | 4000 | 4000 | 4000 | 4000 | 4000 | 3800 | 3000 | 2500 |
Drive In Racking · Warehouse Storage Rack · Made In China

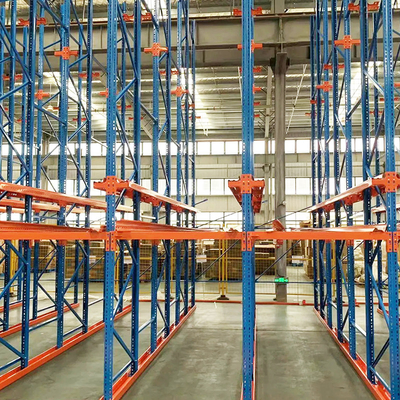

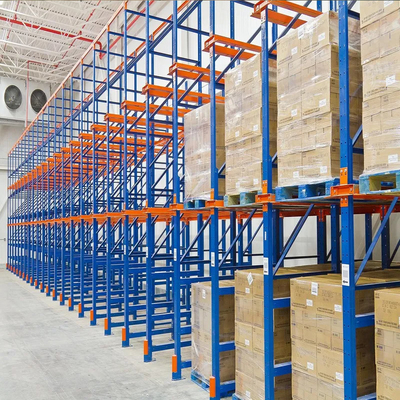

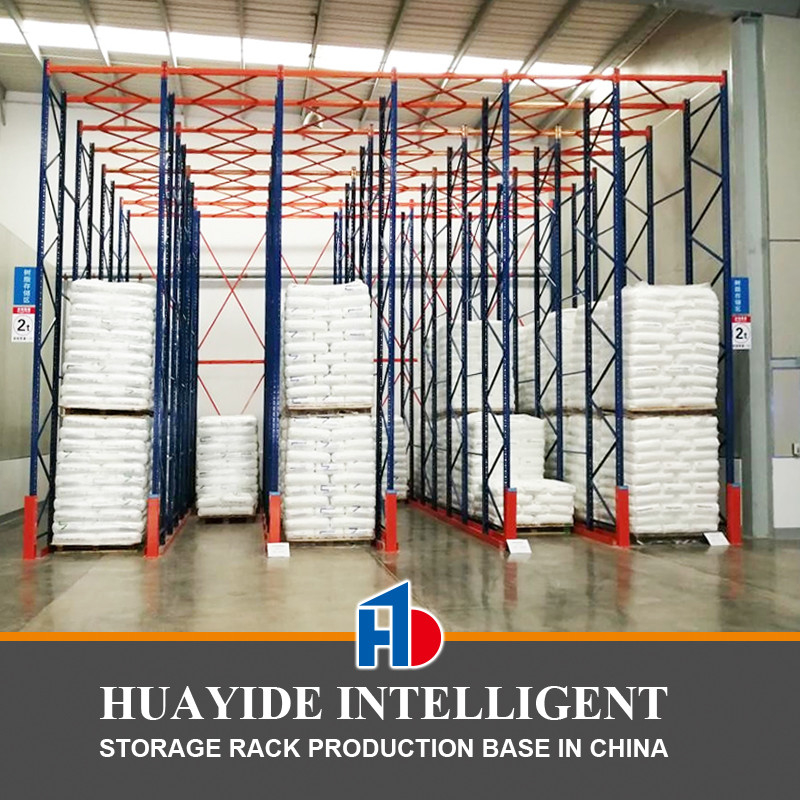

CASE
—
Drive Through Rack · Warehouse Storage Rack · Made In China
Drive Through Rack · Warehouse Storage Rack · Made In China
Drive Through Rack · Warehouse Storage Rack · Made In China
Drive Through Rack · Warehouse Storage Rack · Made In China
Drive In Racking · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
- The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
- The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
- Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
- Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
