B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System

B13 Automatic Heavy Duty Electric Mobile Pallet Storage Racking System

Product Details:

Place of Origin: China
Brand Name: Huayide
Certification: CE&ISO
Model Number: HYD-AHDEM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: can be negotiable
Packaging Details: Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack .
Delivery Time: 10-20 working days
Payment Terms: L/C, T/T
Supply Ability: 900000KGS PER Month
Get Best Price Contact Now

Detail Information

Weight Capacity: 1000kg Type: Pallet Racking
Finish: Powder Coated/Galvanised Usage: Warehouse Rack
Mobility: Mobile Feature: Corrosion Protection
Material: Steel Function: Cold Warehouse
Highlight:

Steel Electric Pallet Racking

,

Electric Mobile Racking

,

heavy duty Pallet Racking

Product Description





Automatic Heavy Duty

Electric Mobile Pallet Storage Racking System

——

Electric Mobile Rack





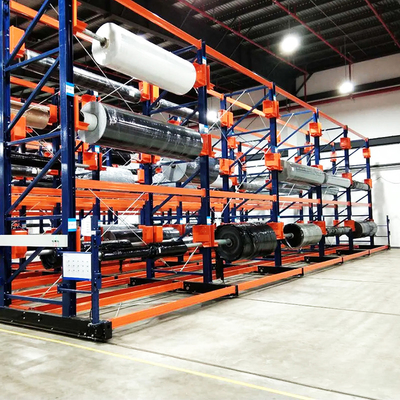

B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 0





Mobile Shelving is a conventional shelving system mounted on carriages which moves to maximize the storage capacity. Aisles can be accessed via manual or remote control. The reduction in the number of aisles achieved by this system provides a high degree of both operational and cost benefits.
Trackless mobile shelving requires no ramps or infill floor, saves on assembly time, is cost-effective, and can be easily relocated when moved. The bases are moved manually with the aid of a crank and a gear ratio adjusted to the loads carried. Drive is provided directly by the castors on the floor.

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China








Features:

——

The traditional static pallet rack needs a fixed aisle between two rows of racks, which occupies too much storage space, while the mobile rack only needs one aisle to produce higher warehouse storage capacity, and the warehouse utilization rate can reach about 80% to 90%.



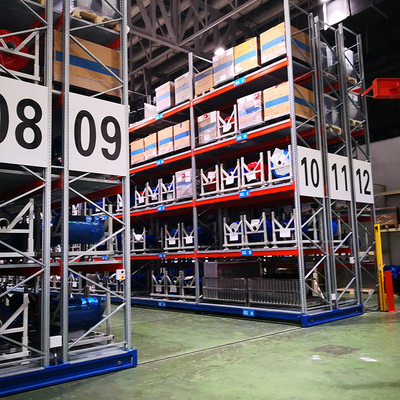

B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 1

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China






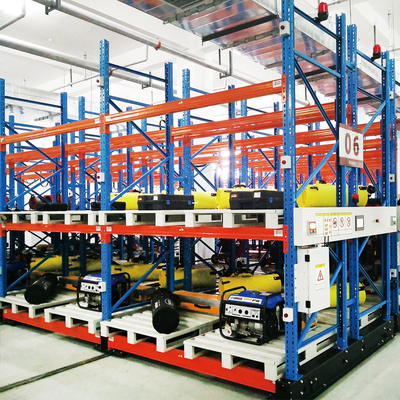

B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 2





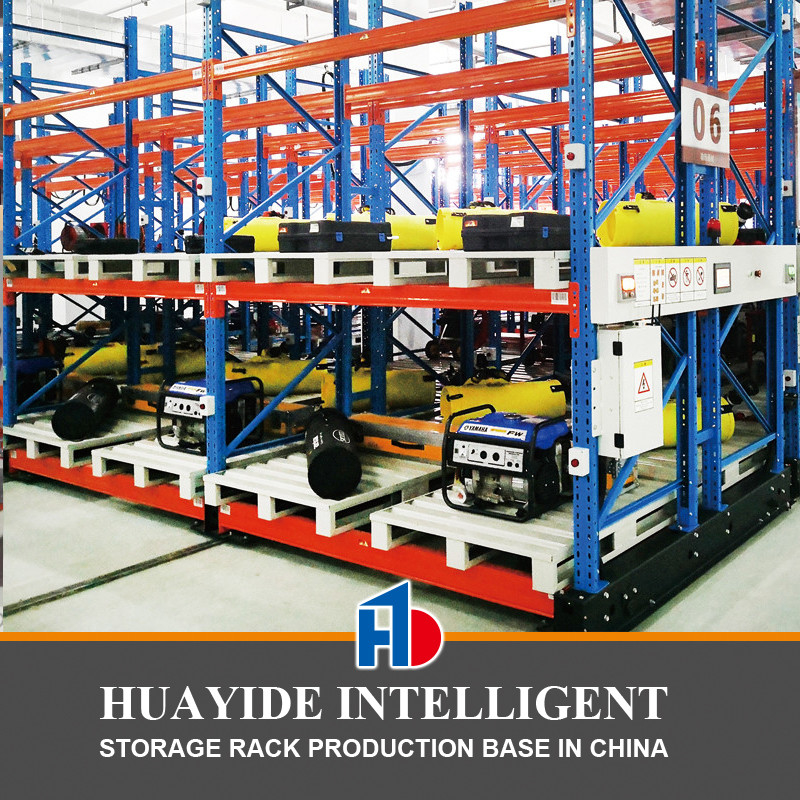

B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 3






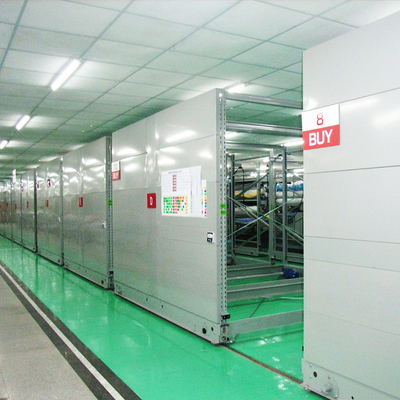

B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 4

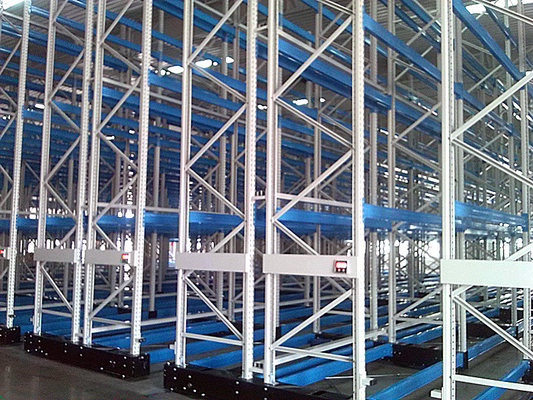

B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 5





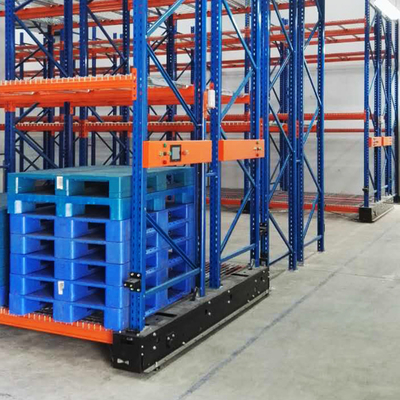

B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 3



Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China






Working Principle

——



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 7

Two rows of back-to-back racks are installed on the mobile base in a group, in a multi-group arrangement, each base is equipped with multiple rollers and drive motors. Through the operation of the electronic control button control motor to drive the entire mobile base along the floor rail together to move, after moving to the operation aisle required by the forklift, you can access the goods, the mobile rack system is mainly composed of racks, mobile bases, motors, floor rails and electronic control electric parts.



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 8

Mobile Base / Drive Motor



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 9

Mobile Carriagee / Electrical Control Panel





B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 10

Sensore / Floor Rails



Model
Railed Trackless
Load Capacity 32 tons/sets 16 tons/sets
Movement Speed Max.10M/min Max.10M/min
Motor power Max.1.5KW Max.1.5KW
Power supply form Two cable synchro line
Power supply 220v/380v
Control mode Automatic linkage /PC control/remote control
Safety device Channel self-locking/Automatic detection /Emergency stop, sound and light alarm overload, overcurrent protection





Two ways to lay the floor rails:
1. Laying of floor rails on existing ground (it is necessary to lay the rails in the ground pits and then carry out secondary cement pouring, and use after the cement ground is hardened)
2. Laying the floor rail on the ground floor of the new warehouse (directly when the warehouse floor is built, the floor rail is pre-buried, and the ground and floor rails are leveled flat)



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 11



The first layer of concrete is poured to a depth of 100MM and then the floor rail is laid, and then the second layer is poured to the horizontal plane.



Safety Protection Function

The mobile rack is operated manually or automatically by means of an integrated PLC system, The PLC software may be adapted to the client's specific needs or linked to client's WMS. Safety is guaranteed by a photoelectric beam system. mounted on mobile rack upright. Adding P&D locations may further increase the warehouse efficiency, resulting in a higher return on investment.



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 12 B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 13



Touch Screeen And Operation Panelh



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 14



Uprights (t=1.8/2.0/2.3/2.5/3.0mm)



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 15



Kaku Beams



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 16



Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China






Classification Of Mobile Rack

——

Electrical mobile racks can also be made into trackless, trackless mobile racks do not have to damage the ground to make floor rails, and the high-strength polyester wheels of the trolley can roll directly on the ground. Electrical trackless mobile racks are installed with ground guides on the side of the wall, generally provided for angle steel guides on the ground, while the entire row racks do not need to be equipped with floor rails.
Depending on the use environment, mobile racks can also be made into refrigerated and explosion-proof mobile racks.



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 17



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 18








B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 19





B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 20

B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 21



Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China





B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 22



Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 23



Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China





B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 24



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 25





Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China





 B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 26

B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 27

B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 28



Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China






B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 3






Ensure the quality of Huayide racking products



1 The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2 The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3 Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4 Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 30



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 31



B13  Automatic Heavy Duty Electric Mobile Pallet Storage Racking System 32



Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
