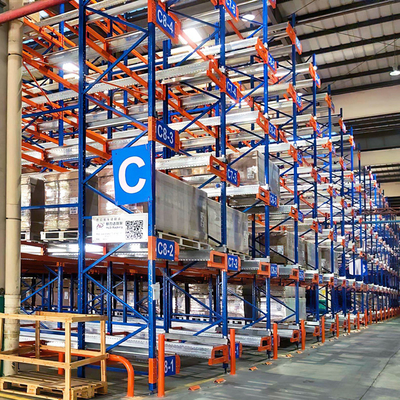

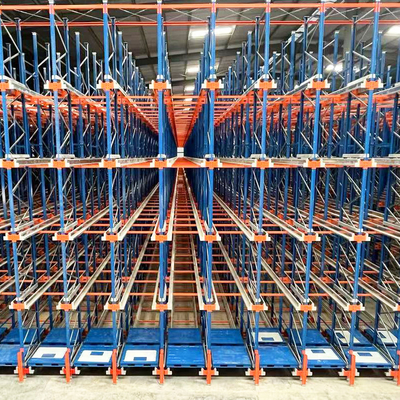

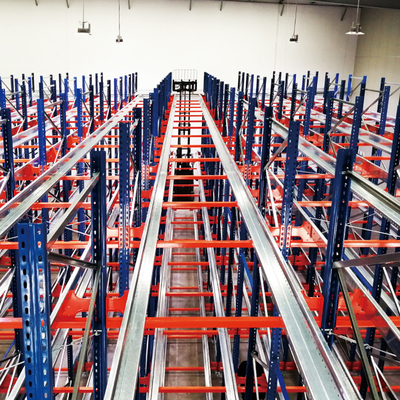

A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking

A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking

Product Details:

Place of Origin: China
Brand Name: Huayide
Certification: CE&ISO
Model Number: HYD-SR

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Plastic Film Protect&Sponge
Delivery Time: Quantity(Kilograms)1 - 10000: Lead Time (Days) 20 ; Quantity(Kilograms)>10000: To Be Negotiated
Payment Terms: L/C, T/T
Supply Ability: <50000 Kilograms
Get Best Price Contact Now

Detail Information

Name: Radio Shuttle Racking Product Category: Semi-Automatic Racking
Material: Q235 Steel Loading Capacity: Up To 1500 Kg/Pallet
Surface Treatment: Powder Coating/Galvanized Principal: Fifo&Filo
Space Utilization: 80% Above Operation Temperature: 0°C~+ 45°C
Highlight:

Radio Shuttle Rack

,

Pallet Runne Racking

,

Radio Shuttle Pallet Racking

Product Description



Radio Shuttle Racking
—— Common Design ——

Strong bearing capacity, easy installation, expansion space & durability.

Operating temperature: 0°C to +45°C



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 0

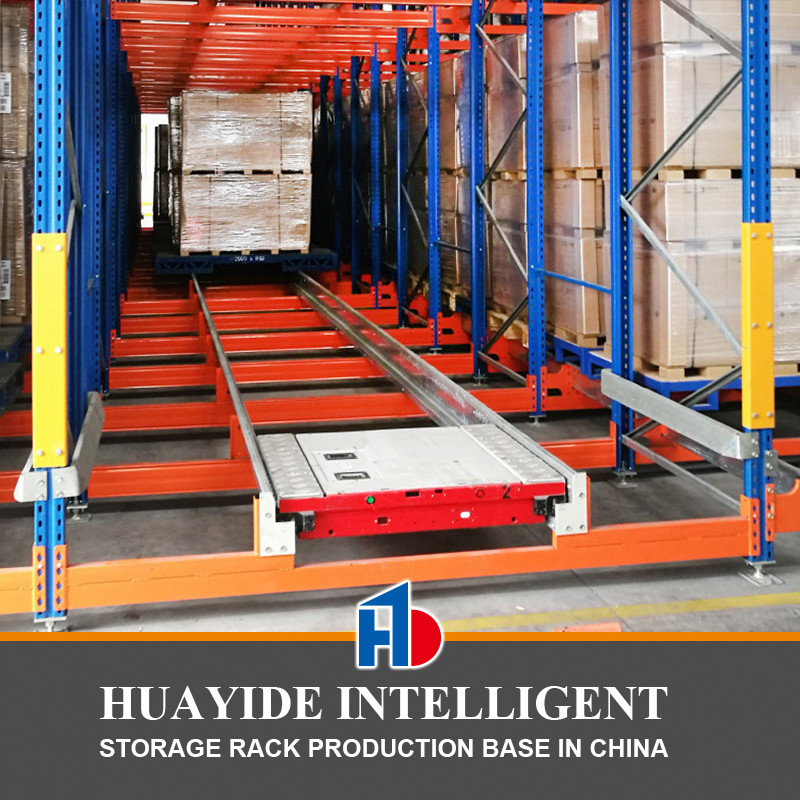

The Radio shuttle cart runs on the rails and is propelled by an electric motor. It also has a platform on the top that can lift up and down. The lifting action is required to lift a pallet that is placed on the rail and then the electric motor moves the cart with the pallet on top into the rack in order to deposit the pallet in its right position.



Radio Shuttle cart can provide the perfect solution to dense storage situations. One of the conventional methods would be to install drive in racking which is great at space utilization but can sometimes inhibit efficiencies when storing the deep pallets as well as potential damage to uprights.













Product Advantage

——



No.1 / Rigorous Material Selection

Strict selection of materials, the use of Q235 structural steel, is a large steel group in china to provide steel.
Q235: low carbon content, good comprehensive performance, strength, plasticity and welding are well matched.



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 2

No.2 / Cost Effective And Time-Saving

Forklifts are not required to enter the racking area, shuttles can work continuously while operator handles the pallet with forklift.
Compared with other types of shelves, the overall investment is less, for example: warehouse lighting requirements.



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 3



No.3 / High-Density Storage

Maximum floor space utilization, the aisle for forklift in selective racks is eliminated, space utilization increased almost 100%.



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 4



No.4 / Strong Bearing Capacity: Up To 1.5t Above

Up to 1500 kg/pallet could be handled in the system



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 5





No.5 / Secure Storage And Pickup

Forklifts are not required to enter the racking area, Low level of risks or damage to the racks and operating staff.



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 6



No.6 / Built In Safety Feature

Built in safety feature like pallet guide centralizers, rail end stoppers, photoelectric sensors, etc.



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 7





No.7 / Flexible And Convenient Inventory & Pickup

For FIFO, the warehousing end can be easily switched, when all the goods in the roadway are not taken out, the warehousing can be moved with one key for convenient operation.

LIFO Handling – Ideal for durable product without a use by date, improves productivity, increases the warehouse capacity.
FIFO Handling – Ideal for perishable goods, requires two aisles (one for loading, one for unloading).



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 8





No.8 / High Precision Automatic Storage& Pickup

Automatically handles pallet picking and retrieval with high precision.



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 9



No.9 / 40m Deep In The Lane

The pallet configuration can go up to 40m deep in the lane



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 10





No.10 / Strong & Durable, Beautiful Rust Proof

The shelves are made of cold-rolled steel material, which is electrostatic sprayed after pickling and phosphating at high temperature.



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 11



No.11 / Easy Installation And Maintenance

A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 12 A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 13



Radio Shuttle Racking · Warehouse Storage Rack · Made In China






Structural Principles

——





A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 14



Radio shuttle racking system is a semi-automated, high-density pallet storage solution, working with radio shuttle cart and forklift.

With a remote control, operator can request radio shuttle cart to load and unload pallet to requested position easily and quickly.





Shuttle performance Full-load speed 35 ~ 45 m/min.
Unloaded speed 55 ~ 60 m/min
Effective working time 8 hours
Motor Travelling motor power 400 w
Lifting motor power 370 w
Battery Voltage 24 v
Battery capacity 50 ~ 60 AH
Weight 13 kg
Charging time for 80% electricity at ambient temperature 5 hours
Time when fully charged at ambient temperature 8 hours
Battery life At least 1000 times recharge cycles
Remote control Display LCD 16X2
Protection IP65
Power supply mode Battery
Hibernation Automatically enter into hibernation after 3 minutes
Battery service under normal using condition

Continuous service time: 10 hours

Standby time: 1300 hours

Character Working temperature

Standard: +5 ~ +45 Celsius degree

Cold temperature: -30 ~ +5 Celsius degree









Radio Shuttle Racking · Warehouse Storage Rack · Made In China






Have A Bright Future



Radio Shuttle Racking





Explosion-Proof Storage

Explosion-Proof Shuttle Rack + Explosion-Proof Shuttle Car



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 15







Cold Chain Racks

Radio Shuttle Rackings Made Of High Strength Steel Plate





A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 16





Radio shuttle rack & four-way shuttle



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 17





Radio shuttle racking   +  four-wheel shuttle / eight-wheel shuttle



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 18





Radio Shuttle Rack+ Shuttle Carrier System



 A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 19





Radio Shuttle Rack + Stacker Crane



 A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 20





Radio Shuttle Rack +AGV



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 21



Radio Shuttle Racking · Warehouse Storage Rack · Made In China








A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 22

















A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 24



Radio Shuttle Racking · Warehouse Storage Rack · Made In China





A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 25



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 26

A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 27



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 28



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 29



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 30





Radio Shuttle Racking · Warehouse Storage Rack · Made In China







A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 31

A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 32



Radio Shuttle Racking · Warehouse Storage Rack · Made In China




Ensure the quality of Huayide racking products



1 The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2 The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3 Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4 Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 33



A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 34



 A39: Radio Shuttle Racking Warehouse Storage Racking Pallet Runner Rack Shuttle Racking 35
