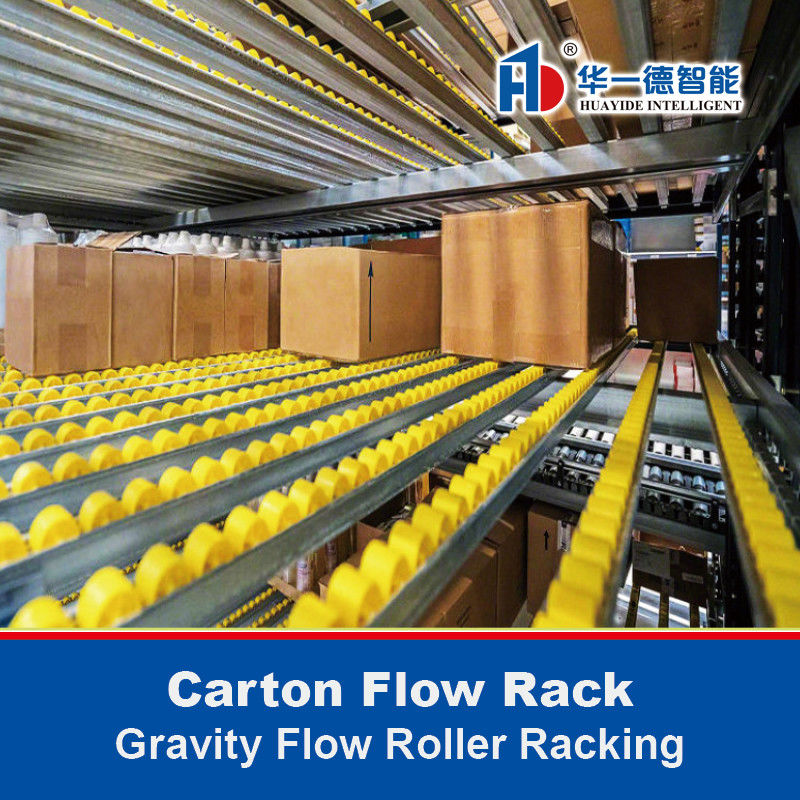

Powder Coated Gravity Flow Roller Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-CFR |
Payment & Shipping Terms:
| Minimum Order Quantity: | set |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack |
| Delivery Time: | 10~20 Working Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS per Month |
|
Detail Information |
|||
| Material: | Steel Q235 | Finish: | Powder Coated Or Galvanized |
|---|---|---|---|
| Depth: | Customized | Height: | Customized |
| Origin: | China | Color: | RAL Color |
| Design: | CAD Drawing | Name: | Carton Flow Storage Rack Sliding Roller Rack Carton Flow Racking |
| Highlight: | Carton Flow Racks,Carton Flow Racking,Gravity Roller Rack |
||
Product Description
Carton Flow Rack Gravity Flow Roller Racking Carton Flow Racking Warehouse Storage Rack
Carton Flow Rack
——
Carton flow racking is a FIFO rack system that provides excellent volume utilization for high volume case pick or piece pick applications.

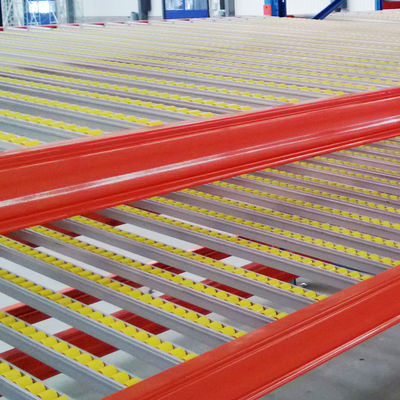

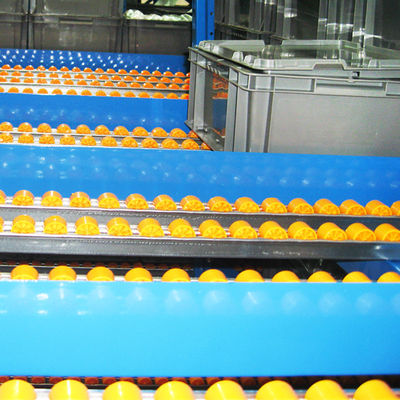

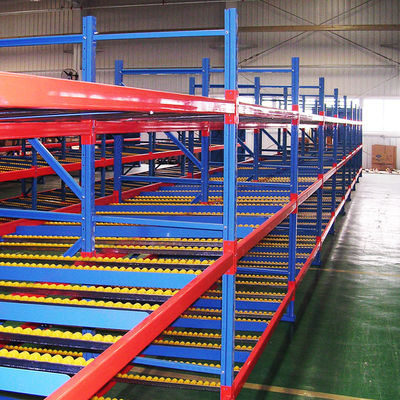

Customers can integrate carton flow roller tracks into various size racks, whether that be a stand-alone system or integrated with various pallet rack types.Carton flow rack is made up of uprights, beams, and inclined lanes of rollers or wheels that allow cartons to glide from the back loading aisle to the front picking aisle. When the front carton is unloaded, the next automatically glides into picking position.
Carton flow rack systems can be configured with three styles of rollers based on the size of the cartons being stored: full bed polycarbonate wheels, full width steel rollers, and full width polycarbonate wheels. Accessory options for carton flow rack include guides to create individual lanes, and tilt trays located at the discharge end to allow for easy access into the top of a case or tote for piece-picking.
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Features
——
1. Unique aluminium or steel roller rail system which cartons move smoothly to the other side.
2. FIFO( first in first out) realized.
3. Flexible design on size and structure according to box or carton size.
4. Dramatically improve warehouse efficiency.
5. Keep labor cost down.
6. Convenient access for two sides of assembly line.
7. Perfect for warehouse slit case or piece picking.
Carton Flow Rack · Warehouse Storage Rack · Made In China
Pallet Storage Solutions
—
Carton Flow Rack
Structural Principles
——
High densitystorage rack
Rack design customized for packages to flow by force of gravity ,It's being FIFO, simple,easy storage.

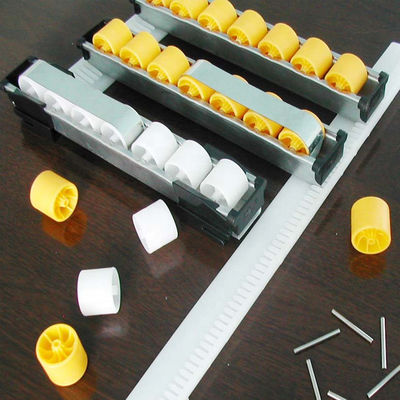

Flou rails
Rails for conveying packages from one to other side . Using durable material . smoothflow , well sorting , improve work efficiency.
strengthened beams
Made of high quality steelmaterial ,excellent load capacity , beams and uprights make a stable structure. Sizecan be customized.
Label information management
With lables, convenient to sort the packages and record information ,and quickly locate them .
Carton Flow Rack · Warehouse Storage Rack · Made In China
Technical Data for Pallet Rack System
—
| Rack Type | Carton Flow Rack | ||
| Pick-up Mode | first in, first out (FIFO) | ||
| Structure | bolted | ||
|
Load Capacity & Dimension |
Load capacity | ≤1500kgs/layer | |
| length | 1000mm~3000mm | ||
| depth/width | 500mm~3000mm | ||
| height | ≤3000mm | ||
| level | ≥2 | ||
| Components | core components | frame(upright,also called column or post,bracing,base plate,fasteners), beam, roller | |
| optional components | divider, side plate | ||
| Core Components Specification | upright section | face | 55mm,80mm,90mm |
| height | 47mm,57mm,60mm,67mm | ||
| thickness | 1.5mm,1.8mm,2.0mm | ||
| adjust step | 50mm,75mm | ||
| roller | material | alluminum alloy, galvanized steel | |
| beam | thickness | 1.5mm,2.0mm | |
| Material | Q235(ss400),alluminum alloy, galvanized steel | ||
| Finish | Epoxy resin electrostatic spraying(powder coating), galvanized | ||
| Coating thickness | no less than 40um for average thickness for powder coating | ||
| Color | ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey) Customized colors are available when order above 2*40gp containers |
||
Carton Flow Rack · Warehouse Storage Rack · Made In China
CASE
—
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Carton Flow Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
