VNA Rack Very Narrow Aisle Heavy Duty Rack VNA Pallet Racking Warehouse Storage Rack with three way forklift





VNA Rack

—

Very Narrow Aisle Rack

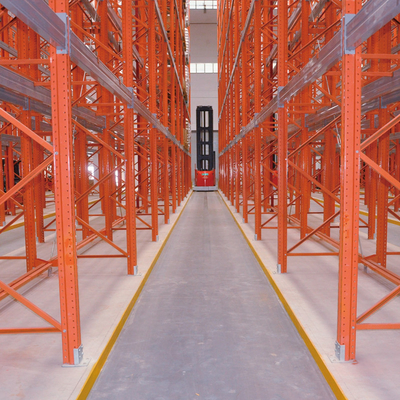

VNA pallet racking is a kind of extended application of crossbeam shelf. Because the forklift handling passage of its shelf system is narrower, it is named NVA pallet racking . The main body of shelf system is crossbeam shelf, the difference is that the limit guide rail of "three-way stacking forklift" is installed on the bottom floor of shelf. The guide rail is made of unequal edge angle steel with national standard. Material handling forklift is limited to special "three-way stacking forklift ". The three-way stacking forklift glides along the established guide rail, the width of the forklift passage is slightly larger than the width of the pallet cargo, the high density storage requirement is realized, and all the advantages of the crossbeam shelf system are integrated. All materials stored in the shelf system are 100% optional, forklift can access any pallet at any time.Fast access efficiency, very high storage density, for the storage and logistics center suitable for VNApallet racking system, bring significant production efficiency and cost-effectiveness.







Very Narrow Aisle Heavy Duty Rack · Warehouse Storage Rack · Made In China

---





Structural Principles

—







1.Crash Barrier / 2.Post / 3.Bracing / 4.Bot & Nut / 5.Row Spacer / 6.Upright Guard

7.Wedge Anchor / 8.Mesh Deck / 9.Steel Deck / 10.Pallet Support / 11.Loading Beam / 12.Pallet







Very Narrow Aisle Heavy Duty Rack · Warehouse Storage Rack · Made In China

---





Uprights

—



t=1.8/2.0/2.3/2.5/3.0mm





Very Narrow Aisle Heavy Duty Rack · Warehouse Storage Rack · Made In China

---





Beams

—









50 face box beam





Very Narrow Aisle Heavy Duty Rack · Warehouse Storage Rack · Made In China

---





Guard rail

—









Technical Data for Pallet Rack System

—



Style	Pallet storage warehouse rack
Selection	Single Row, back-to-back Rows and multiple Rows
Dimension of pallet rack	Standard Pallet: 1200*800(F)/1200*1000(F)/1100*1100(F)/1066(F)*1220 Depth: 1000MM/900MM/1020MM Width: 2700MM/2300MM/2500MM/2432MM Height: pitch is adjusted by increments of 75mm
Customized Pallet	other special size( you can contact us directly)
Beam Range	Height: 80~160mm; Width: 45mm/50mm; Thickness: 1.5~2.5mm
Upright Range	80*60; 90*60; 90*70; 90*75; 100*67; 100*70; 100*75; 120*75; 120*87mm, Thickness: 1.5~3.0mm
Color	Standard: Customized: MOQ( per 20FT container) (kakuequipment.en.made-in-china.com)
Weight Capacity	5000KG per level max ; 1500KG per pallet max
Package	Full container: Nude Package; manual handling Less than container: steel pallets + steel straps + corrugated paper
Lead time	15-20 days for one container



— VNA Rack ＞www.heavyracking.com＜ Made In China —

---





Warehouse Rack Safety Flexible Anti-Collision System

—





— VNA Rack ＞www.heavyracking.com＜ Made In China —

---







Pallet Storage Solutions

—



Very Narrow Aisle Rack













Very Narrow Aisle Heavy Duty Rack · Warehouse Storage Rack · Made In China

---

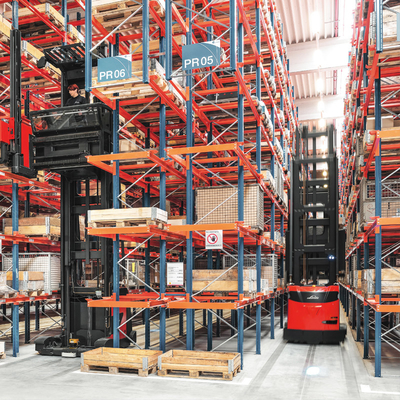

Engineering CaseⅠ







Very Narrow Aisle Heavy Duty Rack · Warehouse Storage Rack · Made In China

---

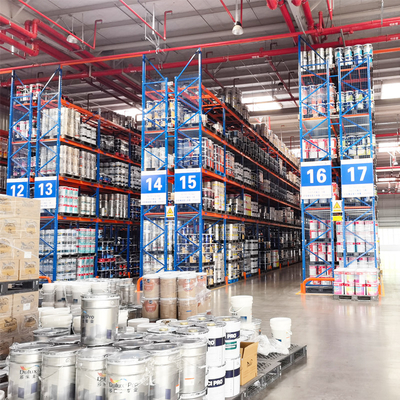

Engineering Case Ⅱ











Very Narrow Aisle Heavy Duty Rack · Warehouse Storage Rack · Made In China

---

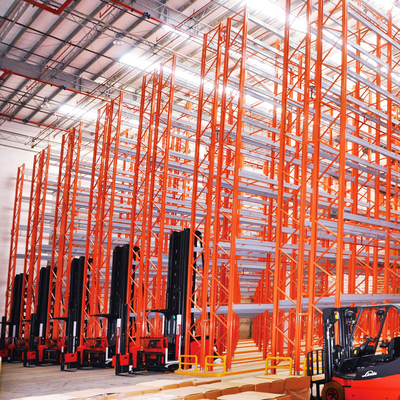

Engineering Case Ⅲ







Very Narrow Aisle Heavy Duty Rack · Warehouse Storage Rack · Made In China

---

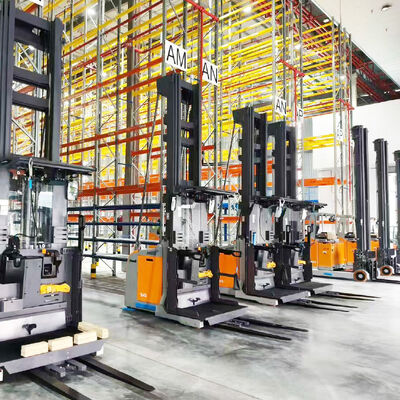

Engineering Case Ⅳ







Very Narrow Aisle Heavy Duty Rack · Warehouse Storage Rack · Made In China

---





Engineering Case Ⅴ





Very Narrow Aisle Heavy Duty Rack · Warehouse Storage Rack · Made In China

---





Engineering Case Ⅵ















— VNA Rack ＞www.heavyracking.com＜ Made In China —

---



Optional Accessories

—











Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

---





Ensure the quality of Huayide racking products

—









1	The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2	The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3	Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4	Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.



Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.

Welcome everyone visit and give guidance.



»» About Us »»
