B55: Metal Wire Mesh Fence Warehouse Security Robot Safety Fencing Machine Guard Panel Workshop isolation network Workshop Safety Fence
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | Warehouse Security Fencing |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Type: | Fencing, Trellis & Gates | Usage: | Machine Safety Fence |
|---|---|---|---|
| Frame Material: | Metal | Frame Finishing: | Powder Coated |
| Height: | 1500-3000mm, Customized | Width: | 1000mm Or Customized |
| Wire Dia: | 3.5mm | Mesh: | 20*100, 30*30, 40*40, 50*50mm |
| Color: | Black/white/yellow/gray | ||
| Highlight: | Wire Mesh Fence,Warehouse Security Fencing,Robot Safety Fencing |
||
Product Description

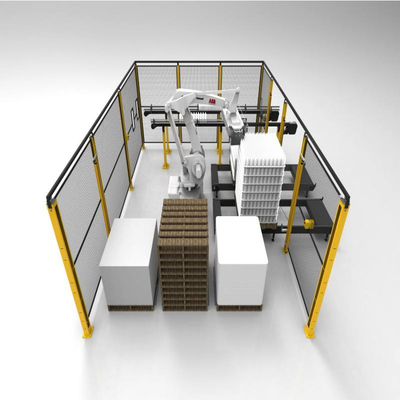

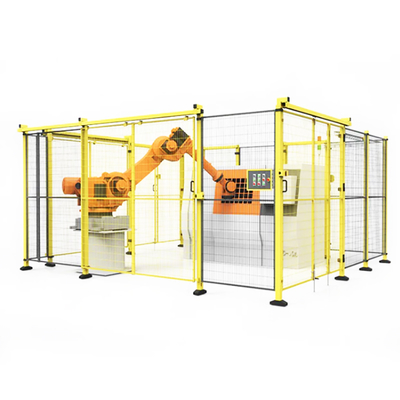

Warehouse Security Robot Safety Fencing
——
Robot fence, also called robot fence, safety fence, if it is used in the workshop, also known as workshop aluminum profile isolation net, workshop partition, aluminum alloy fence, automatic fence net, etc. Without expansion screws, industrial aluminum profiles are generally used as the guardrail frame, with mesh in the middle, transparent acrylic or aluminum plastic plate, etc. The grid size and color can be customized. The grid size of the commonly used robot fence or workshop isolation net is 20*100 grid, but also 30•30 grid, 50*50 grid or 40*40 grid. Common grid colors are yellow, grey, black and so on.
Reasonable area planning for efficient storage.
Modular installation is adopted for flexible Installation and removal. It can be both temporarily used and reused. Mesh panels have various heights and widths for you to suit dimensions of all taller made warehouse partition systems. Welded mesh panels offer a clear and unobstructed view. It allows light, air and far extinguishing systems passing through easily while maintaining its structural stability in the best way. Optional door components: swing door, sliding door, top rail door or folding door. Electro-galvanized or powder coating is employed for surface treatment to ensure the luster and corrosion resistance of the warehouse partition.
Safety Barrier · Warehouse Storage Rack · Made In China
|
Product Name
|
Robot fence
|
|
Type
|
LW GUARD FENCING/Equipment Guarding/Safety Robotics Fencing
|
|
Material
|
Imported Polymer Plastics
|
|
Maximum load
|
1.5 Tonne vehicle at 5 km/h
|
|
Overall length
|
600mm-1537mm or Customized size
|
|
Height
|
1800mm or Customized size
|
|
Application
|
Suitable for areas with independent isolation of personnel and materials, as well as high stacking of goods, to protect the safety
of personnel and materials. |
|
Advantages
|
Withstands multiple impacts and returns to its original form
|
|
Color
|
Yellow+ black
|
|
Certified
|
Refer to PAS13 TUV certified
|
|
Pipe
|
Developed by imported polymer plastic, which have strong weather and chemical resistance, not easy to age; natural color with low
chemical activity, UV resistance meets ISO4892-3; no corrosion. |
|
Base
|
Metal, rubber and other materials combined assembly,metal is treat by electrophoresis ,withstand 72 hours exposure to neutral salt
spray with no rust . |
|
Ground Connection
|
Fixed by inverted cone chemical anchor bolt, with dacromet, withstand 1000 hours exposure to neutral salt spray with no rust .
|
|
Mesh board and connectors
|
Made of Q235 through intermediate frequency welding machine, it is not easy to detach and has high tensile strength. In the
welding of the frame and mesh, the method of welding the metal wire flat onto the frame is used to prevent scratches caused by human contact with the guardrail. The surface is treated with spray molding and subjected to a neutral salt spray test for 500 hours without rusting. |
Mesh Panel
Height: 1000mm/1200mm/1800mm/2000mm Width: 200/300/500/700/800/1000/1200mm
Square tube: 20*20mm Wire diameter: 3mm, 3.5mm Grid: 100*20mm
Post
Size of fast insertion & fast screw post: Height: 1200mm/1400mm/2000mm/2200m
Section:60*60mm Size of Light curtain post: Section:80*80mm*2.5mm
Safety Barrier · Warehouse Storage Rack · Made In China

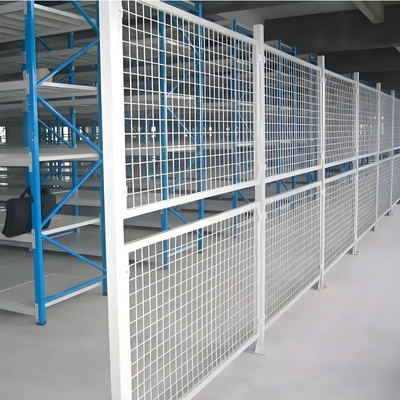

Workshop isolation network
——
They are different from woven wire mesh fences. Due to the line welding processing, it has more firm structure and longer service life compared with woven wire fences.
Hot dipped zinc coated welded wire fence offers thicker zinc plating than electro galvanized one and stronger zinc plating adhesion, while costs a little higher.
PVC coated welded wire fence has more colors available than galvanized welded fences.
The surface treatment of welded wire fence include electro galvanized, hot-dipped galvanized, PVC coated
|
Fence Height |
Panel Width |
Wire Diameter |
Mesh size |
Folds No. |
Post style |
Post size |
Post Length |
|
103 |
200cm
225cm
250cm |
3.5mm 4.0mm 4.5mm 5.0mm 6.0mm 8.0mm |
50x50 50x100 50x150 50x200 60x120 75x150 |
2 |
Square post 1 |
40x60x1.5 |
150 |
|
123 |
2 |
40x60x1.8 |
170 |
||||
|
150 |
2/3 |
40x60x2 |
197 |
||||
|
153 |
2/3 |
Square post 2 |
60x60x1.5 |
200 |
|||
|
170 |
3 |
60x60x1.8 |
217 |
||||
|
173 |
3 |
60x60x2 |
220 |
||||
|
180 |
3 |
60x60x2.5 |
227 |
||||
|
193 |
3 |
Peach post |
50x70 |
240 |
|||
|
200 |
3/4 |
70x100 |
250 |
||||
|
203 |
3/4 |
Holland post |
48x1.5 |
250 |
|||
|
240 |
4 |
290 |
