B43 Warehouse Storage Gravity Pallet Racking System Carton Flow Roller Rack Live Pallet Rack
Product Details:
| Place of Origin: | Anhui |
| Brand Name: | Hua Yide |
| Certification: | ISO & CE |
| Model Number: | Gravity Pallet Racking |
| Document: | PALLET RACKING.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000kg |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 600000 kg per month |
|
Detail Information |
|||
| Material: | Cold-rolled Steel ,steel | Type: | Gravity Flow Pallet Rack |
|---|---|---|---|
| Color: | Blue/orange/yellow/grey Or Other RAL System | Surface Treatment: | Powder Coated |
| Feature: | High Storage Capacity | Packing: | Customers' Request |
| Height: | >15m | Usage: | Warehouse Rack |
| Highlight: | Gravity Pallet Racking,Pallet flow rack,live pallet rack |
||
Product Description

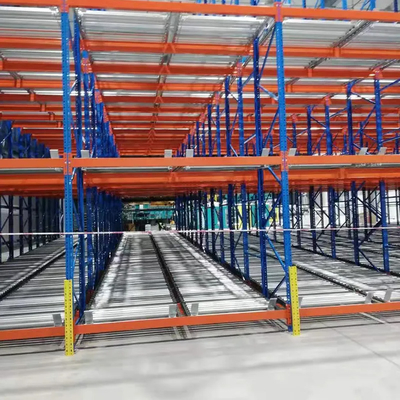

Gravity flow pallet rack
—
Gravity Pallet Racking is ideal for situations where strict FIFO (First In First Out Solution) is required and it is also popular. When pallets need to be moved quickly from one area to another, without the assistance of lift trucks.
1. Reduced warehouse cost; Easy, efficient goods loading and unloading;
2. First In First Out (FIFO) pallet goods storage;
3. Heavy duty long life construction;
4. Reduced aisie space by 60-70%;
5. Increased warehouse utilization and space savings;
6. Reduced forklift damage and pallet or carton flows to the operator or unloading area.
Gravity Pallet Racking · Made In China
Product Features
—
First - in - first - out
Goods are stored from the high - end and slide to the low - end for pickup, following the first - in - first - out order. This is suitable for goods with a shelf - life requirement, effectively ensuring the freshness and quality of the goods
High storage density Safe and reliable
A damper is installed on the slideway to control the sliding speed of the goods within a safe range. A separator is installed at the shipping end to facilitate the removal of goods by handling machinery. Meanwhile, a buffer device is installed at the lowest part of the ramp to prevent the goods from tipping over due to excessive impact.
High storage density
Safe and reliable
A damper is installed on the slideway to control the sliding speed of the goods within a safe range. A separator is installed at the shipping end to facilitate the removal of goods by handling machinery. Meanwhile, a buffer device is installed at the lowest part of the ramp to prevent the goods from tipping over due to excessive impact.
Gravity Pallet Racking · Made In China

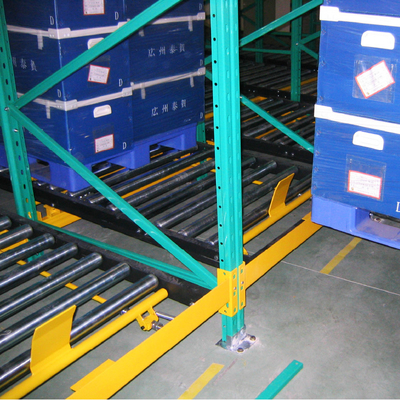

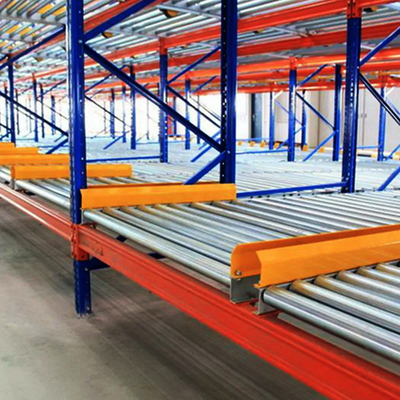

Gravity flow pallet rack components
—
Gravity Pallet Racking · Made In China
Product information
—
|
Rack Type
|
live pallet racking
|
||
|
Rack Cost
|
Low, Medium Low,Medium,Medium high,√High,Higher
|
||
|
Pick-up Mode
|
first in, first out (FIFO)
|
||
|
Structure
|
knock down or bolted,welded structure available
|
||
|
Forklift Asile
|
around 3200mm,depends on customer's forklift parameter
|
||
|
|
Load capacity
|
≤1500kgs/pallet
|
|
|
length
|
1000mm～3000mm
|
||
|
depth/width
|
2000mm～30000mm
|
||
|
height
|
≤10000mm
|
||
|
level
|
≥2
|
||
|
|
core components
|
frame(upright,also called column or post,bracing,base plate,fasteners),spacer, beam, roller line, damping, separator
|
|
|
other
|
upright protector,frame protector, forklift stopper etc
|
||
|
|
upright section
|
face
|
80*60mm,90*60/67mm,100*67/95mm,120*95/135mm
|
|
adjust step
|
75mm
|
||
|
roller
|
thickness
|
2.0mm, 2.5mm
|
|
|
damper
|
diameter
|
92mm,120mm
|
|
|
beam section
|
height
|
80*50mm,100*50mm,110*50mm,120*50mm,130*50mm,140*50mm,160*50mm,180*50mm
|
|
|
Material
|
Q235(ss400),Q355(S355B,S355JR)
|
||
|
Finish
|
Epoxy resin electrostatic spraying(powder coating), galvanized
|
||
|
Coating thickness
|
no less than 60um for average thickness for powder coating
|
||
|
Color
|
ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers |
||
Gravity Pallet Racking · Made In China
Working Principle
—
The rack working principle as following.
1. The higher end is equipped with guide rail.
2. Pallet is placed on the higher end and flow down under the function of its gravity.
3. Guide rail make the pallet flow in the right direction.
4. Damping systems are equipped along the roller line to make the pallet flow down with speed around 200mm per second.
5. Separator is placed on the lower end with its position between the first pallet and the second one.
6. When first pallet reaches the lowest end, separator start work and prevents the second pallet from flowing down. After the first pallet is picked up, the separator release, and the second pallet takes the pick-up position.
Gravity Pallet Racking · Made In China
Project Show
—
Gravity Pallet Racking · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
