B36 Intelligent Warehouse Storage System Electric Mobile Pallet Racking Electric Movable Rack System for Cold Room Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | HuaYide |
| Certification: | CE&ISO |
| Model Number: | HYD-EMPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Name: | Electric Mobile Pallet Racking | Material: | Q234 Steel, Q345 Steel |
|---|---|---|---|
| Height: | 5 -15m | Finish: | Powder Coated |
| Weight: | 1000kg-2000kg/Pallet | Color: | Ral Color System |
| Steel Materia: | Q235/Q355 | Type: | Closed / Open |
| Usage: | Warehouse,auto Parts,industry,cold Storage ,and So On | ODM &OEM: | Both Are Available |
| Highlight: | Electric Mobile Pallet Racking,Mobile Rack System,Cold Room Storage |
||
Product Description
Mobile Pallet Racking
——
Automatic Electric Mobile Pallet Racking Warehouse Shelves
—

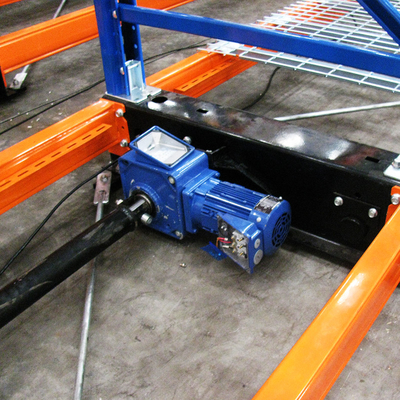

Electric mobile rack takes full advantage of the warehouse space 3 times space using rate as the general shelves. Each unit could be moved separately on the guide rail. It is easy to operate drive a unit just press the button. Every rack has its own transmission equipment link to electromotor, and equipped with safety device. It is mostly applied in refrigeratory or anti-explosion warehouse and provides a 100% access to load and retrieve.
Electric Mobile Rack is the most common form of density storage, with the aid of forklift to access the goods. Its space
utilization rate can reach more than 85%. The electric mobile rack is made up of track (or guide device), trolley (walking
device), motor, rack, detection device, operation panel and software control system. According to the rail style, it is divided
into guide rail type and non-guide rail type.
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
product structure
—
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Product Advantage
—
High storage efficiency: only one aisle is needed, compared with traditional shelves, it can improve the utilization rate of the ground by about 80%.
Flexibility: Provides high pickability, no need to look for aisles to access goods.
Safety: Simple structure, safe and reliable, can be moved in case of power failure.
Suitable for special environments: Suitable for special environments such as cold storage and explosion-proof warehouses.
Easy to operate: intuitive and easy to operate, through the computer control, it is extremely convenient to find the goods.
Seismic: It has good seismic resistance, after the earthquake, the shelves will move smoothly, and will not fall down directly.
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Technical Parameter
—
| Frame depth | Require 3 posts for bigger depth | Post section |
80*60,90*68, 90*70, 100*75, 120*75,120*95, 140*120 |
| Frame Height | H2000*H11700 Require post splice kit for higher post |
Loading capacity | 8000kg-32000kg/bay |
| Box beam | W1000-W4000 | Box beam section |
80*50,90*50,100*50,110*50, 120*50,130*50,140*50,155*50 |
| Accessories | 100% 8.8G bolt & nut | Loading capacity | 800kg-4000kg/level |
| Surface treatment | Powder coating & Galvanization | Painting Colour |
Blue, Orange, Grey (Ral 5015, Ral2004, Ral7035, etc) |
| Factory capacity | 25 * 40HQ/month | Factory inspection | "FIRST-PIECE" at every stage of production, for every order. |
| Max loading per container | 25000kg | Shipping package | Use Dunnage bag to avoid damage |
| Compliance | European FEM, Australia AS4084 | OEM | Acceptable |
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

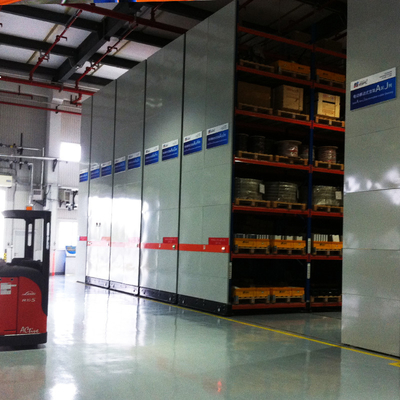

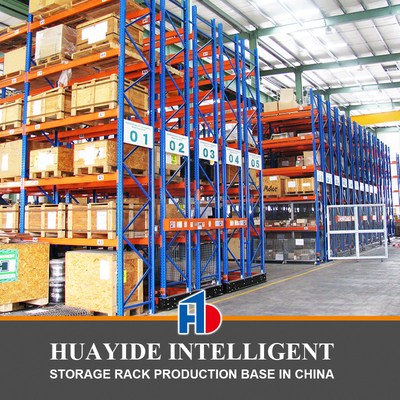

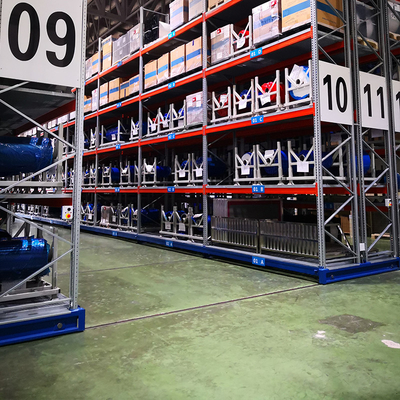

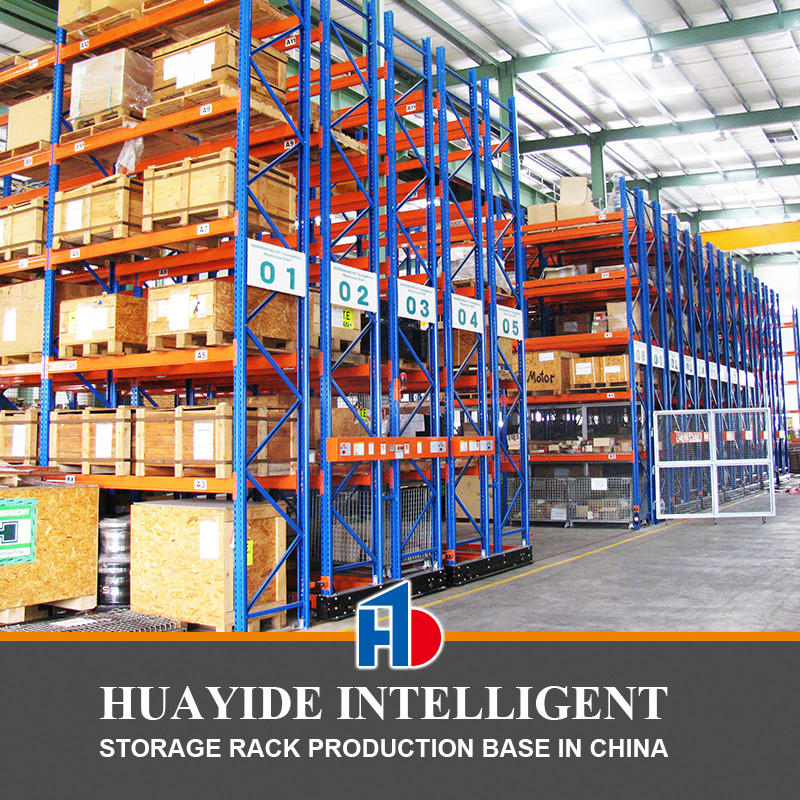

CASE
—
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
