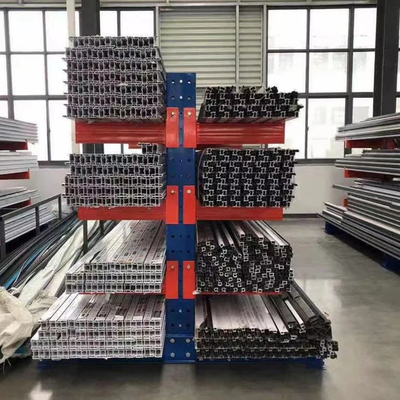

B23 Industrial Heavy Duty Warehouse Single or Double-Sided Cantilever Racking for Pipe Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-CR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Material: | Steel | Height: | 5-15m |
|---|---|---|---|
| Surface Treatment: | Powder Coated | Load Capacity: | 200~1000 Kgs Per Arm |
| Specification: | According To Pallet Size And Weight | Application: | Warehouse Storage Racking System |
| Color: | Customized Color | Arm Length: | Customized |
| Transport Package: | Banding, Plastic Film, Wood Pallet, Carton | ||
| Highlight: | Cantilever Racking,Pipe Storage Racking,Heavy Duty Warehouse Storage Racking |
||
Product Description

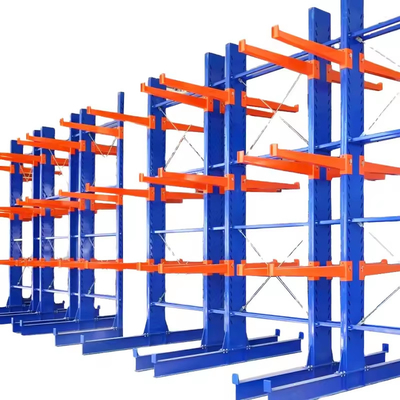

Cantilever Racking
——
Cantilever rack which also called arm rack ,is ideal for loads that require no obstruction at the pick face, so that bulky and awkwardly sized or shaped products can be safely stored and accessed. This type of racking allows you to use your warehouse space more efficiently - you do not need to waste horizontal space with awkward posts and columns obstructing storage areas. Items best suited to such a system include furniture, building materials, piping, rolls, appliances, and flooring.You can fit this racking system to your facility by adjusting the shelf height, ensuring that the maximum amount of vertical storage space is maintained. Moreover, the support arms can vary in depth and capacity depending on the type of load. Open rows allow not only secure load support but also easy access - safety, flexibility and selectivity are all maintained.
— Cantilever Racking ＞www.heavyracking.com＜ Made In China —
Advantages
—
1).Cantilever racking system is optimal for the storage of long-shaped and bulky materials,profiles,pipe,timber and moulding etc;
2).Constructed of structural H steel and traditionsl roll-formed style both are avaliable
3).Single and double sided configuration available;
4).Different column and arm sizes available to suit various loading requirement;
5).Bolted arm and base connection;
6).Surface treatment:Spray-painting
7).Packing:Neutral paper box or in bulk or upon clients requirements
Single Side Arm Structure / Double Side Arm Structure
— Cantilever Racking ＞www.heavyracking.com＜ Made In China —
Product Parameters
—
| Length | 1500 | 1800 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 |
| Beam Specification | Load/kg | |||||||
| 80×50 | 3000 | 2300 | 1800 | 1500 | 1200 | 1000 | 800 | 700 |
| 100×50 | 4000 | 4000 | 3000 | 2400 | 2000 | 1750 | 1400 | 1100 |
| 120×50 | 4000 | 4000 | 4000 | 3500 | 3000 | 2500 | 2000 | 1800 |
| 140×50 | 4000 | 4000 | 4000 | 4000 | 4000 | 3800 | 3000 | 2500 |
— Cantilever Racking ＞www.heavyracking.com＜ Made In China —
Information required to obtain a quote and project progress process
—
| Detailed information required |
Customer information
|
Notes
|
| Warehouse condition | Room temperature/cold storage | Need layout design |
| Handling mode | Manual/forklift (standing/sitting) | Channel requirement |
| Carrying capacity | Weight of goods per pallet | Single layer load |
| Type of goods | Tray (L W H) | Beam length |
| Turnover of goods | Turnover frequency | First in first out |
| Pallet type | Plastic tray/wooden tray | Pallets can be mounted on shelves/planks |
| Plane graph | Mark warehouse dimensions and reserved areas | Shelf number |
Project details confirmation.
Based on customer requirements, we draft detailed design drawings and conduct feasibility studies. Through collaborative reviews, we refine the proposed plan and finalize it through multi-stakeholder approval.Sign a contract - order production.
Our production processes encompass precision punching, forming, welding, automated shot blasting, high-performance coating, rigorous quality inspections, meticulous packaging, and reliable delivery.Quality control.
Our company implements rigorous quality control measures, including systematic inspections, random sampling, and load-bearing tests at every production stage. Additionally, we allow customers to commission third-party independent quality verification to further ensure product compliance.Package and ship.
Our standard packaging method employs pallet film wrapping, while customizable packaging solutions can also be tailored to meet specific client requirements.Installation support.
After finalizing the plan, we will present the installation drawings and videos. Additionally, we offer paid on-site support options, including dispatching a professional installation team for direct assistance.After-sales service.
For products covered under our warranty period, in the event of any quality issues arising from our manufacturing, we will promptly offer complimentary replacements, including transportation and installation costs at no additional charge.
— Cantilever Racking ＞www.heavyracking.com＜ Made In China —
Details lmages
—
— Cantilever Racking ＞www.heavyracking.com＜ Made In China —
Transport Package
—
— Cantilever Racking ＞www.heavyracking.com＜ Made In China —

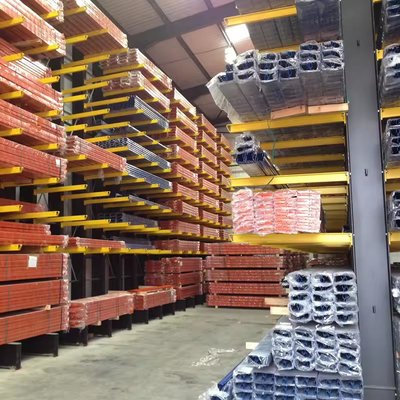

CASE
—
— Cantilever Racking ＞www.heavyracking.com＜ Made In China —
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
