B38 Heavy Duty Stackable Galvanized Steel Pallet Bulk Steel Pallets Industrial Steel Pallet
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | ISO&CE |
| Model Number: | HYD-GSP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 15 to 20 working days . |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS Per Month |
|
Detail Information |
|||
| Keyword: | Galvanized Steel Pallet | Raw Material: | Q235B Cold Rolled Steel |
|---|---|---|---|
| Color: | As Your Request | Surface Treatment: | Galvanized |
| Size: | Customized | Dynamic Load: | 1-3T |
| Static Load: | 3-8T | Supply Ability: | 3000 Tons Per Month |
| Entry Type: | 2-way 4-way | ||
| Highlight: | Galvanized Steel Pallet,Industrial Steel Pallet,Stackable Steel Pallet |
||
Product Description

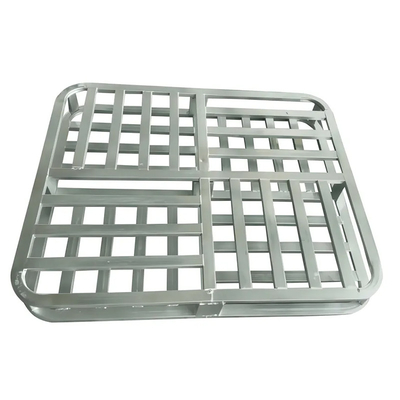

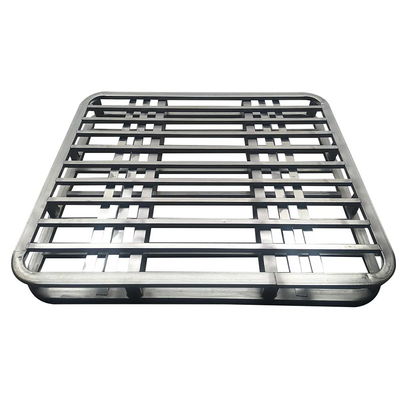

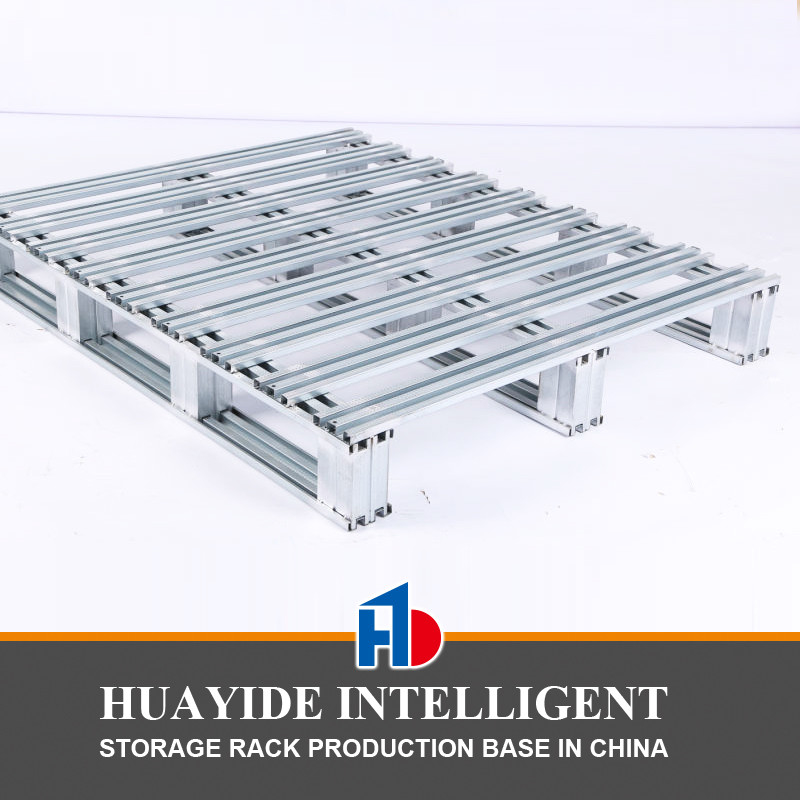

Galvanized Steel Pallet
——
— Factory Direct Sales · Customizable —
Galvanized steel pallet is stronger than plastic and wooden pallet on loading capacity. It is durable and hard to be damaged so that cost can be saved. Steel pallet is an indispensable part in the whole logistics chain. It is widely applied in all kinds of industries.
Metal galvanized steel pallet is becoming more and more popular all around the world.
Steel pallet is made up of support feet and face board. It can be sorted as two-way access type and four-way access type. It is mainly used for ground storage, shelf storage, cargo transport and turnover, as container, stacking, handling and transportation of the place as a horizontal platform device unit load of goods and products, and is now an important warehousing and transportation industry auxiliary equipment one.
Steel Pallet · ASRS · Made In China
Advantages of Galvanized steel pallet
—
1. Welded construction
2. Eliminates need for wooden pallets
3. Heavy corrugated deck and stringers
4. Bacteria resistant
5. Easily cleanable
6. 100% recyclable and repairable
7. Contains holes for drainage
8. Large load capacity
9. Great for shipping
10. Available in standard colors and galvanized
Steel Pallet · ASRS · Made In China
Details Of Steel Pallet
—
1.The number of panels can be increased or decreased according to your requestment.
2.Panel can be added to the bottom of the pallet according to actual loading products if you need.
3.The pallet loading with goods can be stacked if the goods are without fear of pressure and with unitized packaging.
4.The pallet can be used on selective rack, drive in rack and flow rack. Both folklift and hand pallet truck are applicative.
5.Both sides are processed with Angle wrapping edge, which enhances the surface effect of thepallet and reduces the risk of damage to the packaging.
6.In order to reduce the damag to the pallet caused by frequent forklift operation, rectangular tubes are arranged at both ends of the insertion direction to increase the service life.
7.The design of corrugated pane is conducive to improve the anti-skid effect and increase the load capacity of the panel but keep the weight light.
8.The 4-way insert design increase the space utilization and make it more convenient on operation.
9.Customer's logo or special marks can be ptinted on the palletas required.
Steel Pallet · ASRS · Made In China
Specification
—
|
Product Name
|
Metal galvanized steel pallet
|
|
Material
|
Galvanized steel Q235
|
|
Surface treatment
|
Galvanized / powder coating
|
|
Entry Type
|
2way / 4 way
|
|
Face
|
Single face/deck, double face
|
|
Dynamic Load
|
1000KG
|
|
Static Load
|
3000KG
|
|
Load of putting on racks
|
1000KG
|
|
Dimension (Width * Depth * Height)
|
EU pallet: 1200*1000*130 / 1200*800*130
|
|
American&Canada:48”(1219mm) * 40”(1016mm) * 5”(130mm)
|
|
|
Asia: 1100*1100*130mm
|
|
|
Australia:1140*11140*130mm/ 42”(1067mm)*42”(1067mm)*5''(130mm)
|
|
|
Handing equipment
|
Forklift, Hand lift
|
|
Structure
|
Stick - Shielded Metal Arc Welding
|
|
Other |
All the size and load can be customized
|
Steel Pallet · ASRS · Made In China
The differences of wooden, plastic and steel pallet
—
Steel pallet is stronger than plastic and wooden pallet on loading capacity. It is durable and hard to be damaged so that cost can be saved. Steel pallet is an indispensable part in the whole logistics chain. It is widely applied in all kinds of industries.
|
Pallet
|
Wooden pallet | Plastic pallet | Steel pallet |
|
Environmental protection |
The quality is not easy to control Since wood is a natural material. its quality is affected by many factors such as regional climate. Even if it is the same batch ofraw materials,it is difficult to achieve uniform standards in terms of dry humidity and wind cracks. | The damage to the environment is general.Ahigh-power injection molding machine is required in the manufacturing process of plastic pallets, and the energy consumption is high. | Low environmental damage. the raw material is coiled steel, and the manufacturing energy consumption is also low |
| Ouality | The quality is not easy to controlSince wood is a natural material. itsquality is affected by many factorssuch as regional climate. Even if itis the same batch ofraw materialsit is difficult to achieve uniformstandards in terms of dry humidityand wind cracks. | With the same raw materials, the quality is good. | Good quality |
| Load |
The max dynamic load is 2000KG, static load is 6000KG |
The max dynamic load is 3000KG, static load is 8000KG |
The max dynamic load is 5000KG, static load is 12000KG |
|
Breakage rate |
High, short liftspan.average 200-500 times for turnover | Middle, middle longliftspan,average 300-600 times forurnover | Low, can be repaired, even if it is treated as waste. there is a residual value of not less than 10%. |
| Feature | Can not prevent fire, mildew and insects | Can prevent mildew, insects, not fire | Can prevent mildew, insects and fire |
| Price | Low | High | Middle |
Steel Pallet · ASRS · Made In China
Steel Pallet · ASRS · Made In China

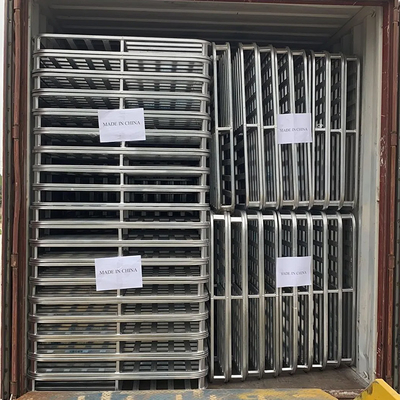

CASE
—
Steel Pallet · ASRS · Made In China
FACTORY SCENE
—
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
