B24 Heavy Duty Steel Structure Platform for Industrial Workshop Warehouse Office

Steel construction platform

——

Additional storage space without change in the building structure

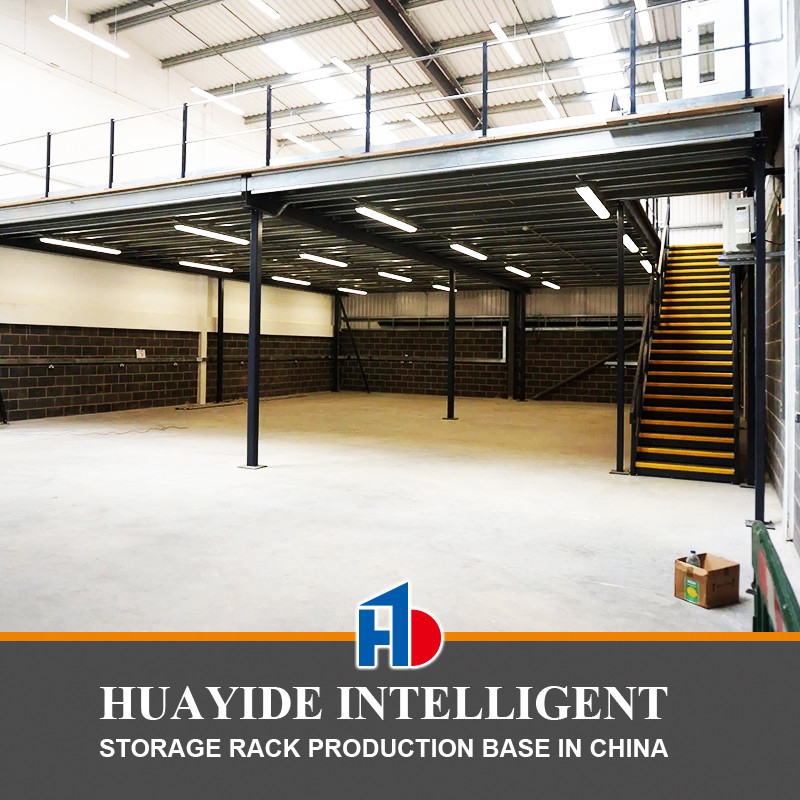

A structural steel platform is a quick way to gain additional space at height without having to make costly structural changes to the floor plan.

More efficient use of room height

The self-supporting, walk-on and optional drive-on steel construction creates space at multiple levels

Flexible adaptation to existing needs

When new storage and work areas are provided, the lower level can also be used for production, for example, Compared with integral mezzanine floors,structural steel platforms offer many individual design options. They can be used as picking platforms, for instance.

Many individual design options

Structural steelplatforms can be designed so that not only hand pallet trucks but also electric pallet trucks can operate on them. Forklift trucks or conveyor systems provide the of material flow from the ground floor to the platform; personnel gain access via steps or integrated lifts.

Steel platform · Warehouse Storage Rack · Made In China

Product Specification

—

Steel platform · Warehouse Storage Rack · Made In China

Features

—

Versatile

As block storage, office space, production area or for order picking.

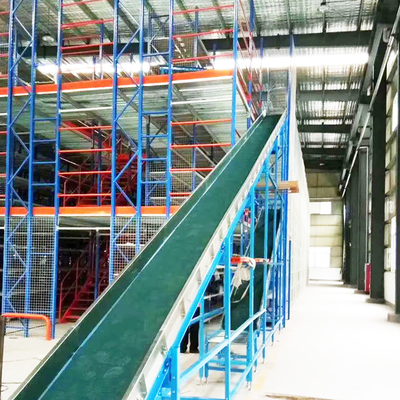

Platforms as substructure and maintenance access for conveyor lines.

Versatile

As block storage, office space, production area or for order picking.
Platforms as substructure and maintenance access for conveyor lines.

Multiply usable space

Build above to create additional space.
Optimum utilisation of the entire height of the room.

Cost savings,Conformity with standards,Safety accessories

Cost-effective variant compared with expanding the floor area.
Racking system, railings and fall protection are designed according to applicable standards.
Safety railings.Support guard.Bumper.
Pallet gates for a safe means of transporting goods to the individual levels

Steel platform · Warehouse Storage Rack · Made In China

Details lmages

—

1.Column Upright   2.Main Beam   3.Beam   4.Sub Beam   5.Staircase   6.Floor Grating   7.Plywood    8.Handrail    9.Slide Door

Stairs And Hydrauliclifting Platforms

The lifting platform is used to transport goods up and down between floors,with a large practical carrying capacity.Smooth lifting and lowering, reducingmanual handling, and slides can be configured according to needs

Floor Board Beam

Floor board + bottom support frame, smooth and stable,mildew-proof and moisture-proof, with strong load-bearingcapacity

Beam

Floor board + bottom support frame, smooth and stable,mildew-proof and moisture-proof, with strong load-bearingcapacity

Mezzanine Panels

Cold rolled steel is strong and stable, with a textured surface.The surface is textured,which increases the friction and prevents slipping and falling.The steel is impact-resistantload-bearing and protected against corrosion in accordance with international standards.

Column

The cross beams on both sides are hung on the columnsand fixed with safety pins for a higher safety factor.

Steel platform · Warehouse Storage Rack · Made In China

Types of Steel Structure Mezzanine Floor Systems

—

Mezzanine floor

Structure: mezzanine with staironly
Application:The height of the warehouse isrequired to be greater than 4.3meters

Multi tiers mezzanine floor

Structure: 3 levels mezzaninefloor with stair.The racks and mezzanine floorsystems are two completelyseparate partsApplication:The height of the warehouse isrequired to be greater than 6.5meters

Mezzanine floor

Structure:mezzanine with stair andsliding door

The racks and mezzanine floor systems are two completely separateparts

H steel structure mezzanine floor

Structure: Upright in H shapepost.
Application:The distance between the twocolumns is required to be bigge,than 4.2 meters.2.The load capacity of mezzaninefloor is bigger than 1000kg

Steel platform · Warehouse Storage Rack · Made In China

Types of Rack-Supporting Mezzanine Floor Systems

—

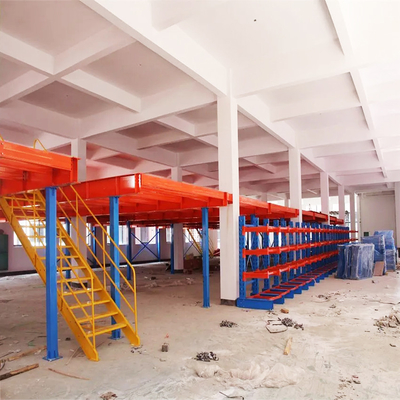

Racking shelves on the groundfloor, mezznaine platfomm on theupper layer.

Both upper and ground floors areracking shelves

Both upper and ground floorsare racking shelves.

What's more, racking mezzaninefloor and mezzanine platfomn two in one

3 tiers racking mezzanine withmezzanine platform on top

Steel platform · Warehouse Storage Rack · Made In China

Transport Package

—
