B25 Warehouse Storage Cage Medium Duty Container Wire Metal Container Pallet Stackable Cage
Product Details:
| Place of Origin: | China |
| Brand Name: | HuaYide |
| Certification: | ISO&CE |
| Model Number: | HYD-WSCWMC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 15 to 20 working days . |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS Per Month |
|
Detail Information |
|||
| Type: | Wire Mesh Container | Color: | Orange Blue Or Any Other Color |
|---|---|---|---|
| Surface Treatment: | Powder Coating Process | Additional Features: | Option To Add Wheels |
| Loading Method: | 1.5~3.0mm,Customized | Transport Package: | Plastic Banding+Stretch Film Wrapped |
| Wire Diameter: | 6 Mm | Load Capacity: | 1300kg |
| Material: | Mild Steel Q235 | ||
| Highlight: | Storage Cage,Wire Metal Container,Pallet Stackable Cage |
||
Product Description

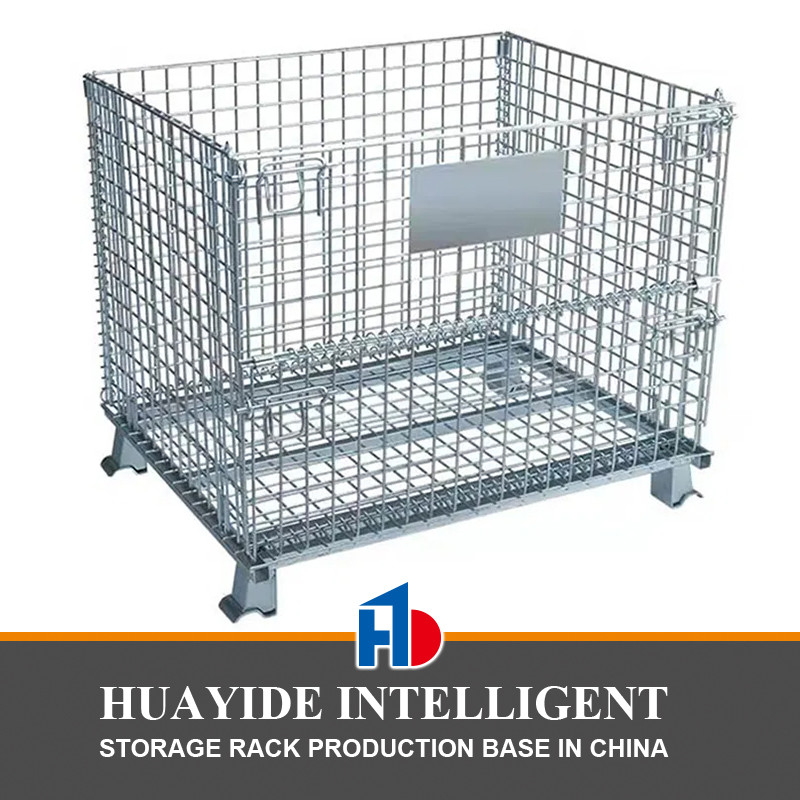

Foldable Storage Cage
——
The storage cage is an efficient and durable storage and transportation device widely used in warehouses, logistics centers, and factories. Made of high-strength steel, it features a solid structure, excellent load-bearing capacity, and strong corrosion resistance. The storage cage is designed with foldability, allowing for easy storage when not in use, saving warehouse space. It can be used for both static storage and material turnover, providing a flexible and efficient storage solution, making it an ideal tool for modern warehouse management.
Storage Cage · ASRS · Made In China
Product Specification
—
1) Triangular metal frame ensures the strength of spiral hinge.
2) Special feet ensures the stability of wire container.
3) Bolts make us easy to get the objects in the wire container and prevent objects from falling during shipping.
4) Spot welding technique ensures the strong and durable structure of wire container.
5) Spiral hinge can help to folded to save space.
6) Bending-shaped metal handle make us easy to close or lock the wire container.
7) Independent bolt and drop gate help us open the wire container easily when stacked.
8) U-shaped steel beam reinforces the bottom to ensure the bearing capacity ofwire container.
9) Steel card makes us easy to identify the product or something else.
Storage Cage · ASRS · Made In China
Features
—
Sturdy and Durable: The storage cage is made from high-quality steel with a galvanized or powder-coated surface, offering excellent rust and corrosion resistance, making it suitable for long-term use in harsh environments.
Foldable Design: The storage cage can be folded for convenient storage when not in use, significantly saving space. It can be quickly unfolded when needed, providing ease of use.
High Load Capacity: Constructed with welded steel wires and reinforced at the base, the storage cage has a high load-bearing capacity, capable of holding heavy items for storage and transportation.
Easy Mobility: Some storage cages are equipped with caster wheels at the bottom, making it easier to move goods flexibly, thereby improving logistics and transportation efficiency.
High Visibility: The mesh structure allows for easy visibility of stored items, reducing the time spent searching and counting.
Storage Cage · ASRS · Made In China
Applicable Scenarios
—
Logistics Distribution Centers: Used for storing, sorting, and distributing goods, improving logistics efficiency.
Factory Workshops: Suitable for the turnover and storage of parts, semi-finished, and finished products.
Retail Warehouses: Helps manage large inventories, facilitating categorized storage and quick retrieval.
Material Turnover: Ideal for frequent material transport and storage needs, effectively protecting goods from damage.
Storage Cage · ASRS · Made In China
Technical Specifications
—
Material: High-strength steel Surface Treatment: Galvanized or powder-coated
Load Capacity: Up to 800 to 2000 kg Dimensions: Customizable
Folding Mechanism: Manual folding, easy to operate Accessories: Optional caster wheels or lids available
|
Mode
|
Diameter
(mm) |
Mesh
Grid
(mm) |
Specification(mm)
|
Weight
(kgs) |
Capacity
(kgs) |
Volume
(liter) |
QTY in
40'GP
|
||
|
Length
|
Wide
|
Height
|
|||||||
|
A-3
|
6
|
50*50
|
800
|
600
|
640
|
32
|
700
|
0.22
|
652
|
|
A-5
|
6
|
50*50
|
1000
|
800
|
840
|
49
|
1200
|
0.52
|
440
|
|
A-7
|
6
|
50*50
|
1200
|
1000
|
890
|
66
|
1500
|
0.84
|
270
|
|
B-6
|
6.4
|
50*50
|
800
|
600
|
640
|
35
|
800
|
0.22
|
652
|
|
B-5
|
6.4
|
50*50
|
1000
|
800
|
840
|
54
|
1500
|
0.52
|
440
|
|
B-9
|
6.4
|
50*50
|
1200
|
1000
|
890
|
84
|
2000
|
0.9
|
270
|
|
S-5-2
|
6
|
50*100
|
1000
|
800
|
840
|
42
|
900
|
0.56
|
440
|
|
S-7-2
|
6
|
50*100
|
1200
|
1000
|
890
|
57
|
900
|
0.9
|
252
|
|
S-5
|
6.4
|
50*100
|
1000
|
800
|
840
|
46
|
1000
|
0.56
|
462
|
|
S-7
|
6.4
|
50*100
|
1200
|
1000
|
890
|
63
|
1000
|
0.9
|
270
|
Storage Cage · ASRS · Made In China
Usage Advantages
—
Enhances warehouse management efficiency by facilitating easy classification, access, and inventory counting.
Maximizes warehouse space utilization with foldable design, saving storage space when not in use.
High load-bearing capacity makes it ideal for storing bulky and heavy items.
Simplifies material turnover processes, allowing for easy transport and handling.
Storage Cage · ASRS · Made In China
Steel platform · Warehouse Storage Rack · Made In China
FACTORY SCENE
—
Storage Cage · ASRS · Made In China
Ensure the quality of Huayide racking products
—
| 1 |
The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 |
The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 |
Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 |
Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
