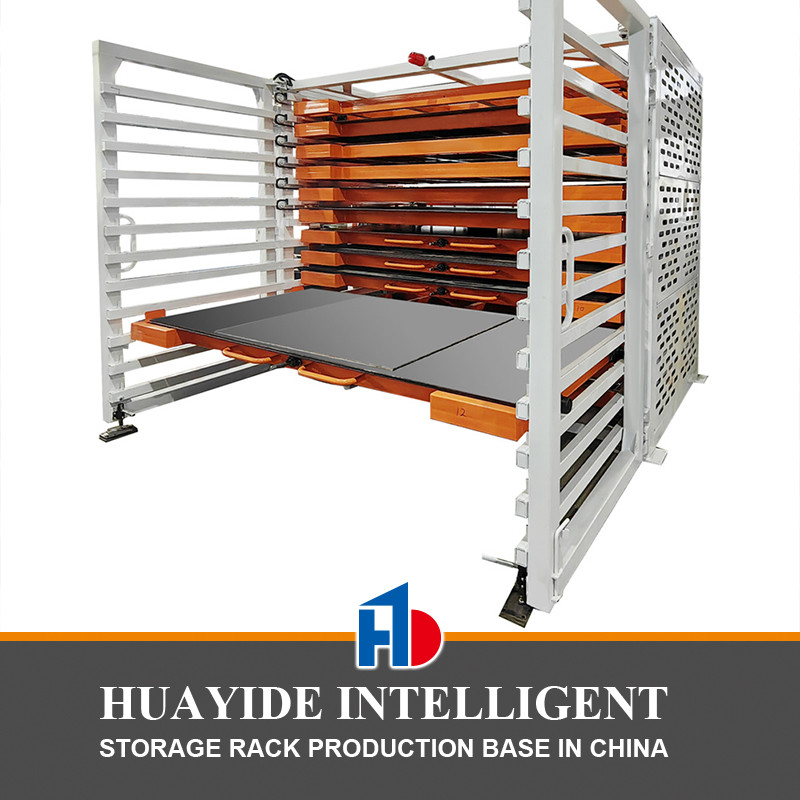

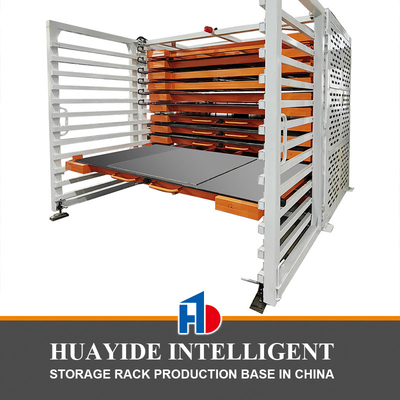

B29 Hand-0perated Sheet Metal Storage Rack Sheet Drawer Roll-out Rack for Plate Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | Hua Yide |
| Certification: | ISO&CE |
| Model Number: | Radio shuttle racking |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Hardbord and Plastic film and Wooden Pallet |
| Delivery Time: | 15 to 20 working days . |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS Per Month |
|
Detail Information |
|||
| Name: | Sheet Metal Storage Rack | Material: | Steel |
|---|---|---|---|
| Surface Treatment: | Powder Coated | Special Feature: | Durable |
| Installation: | Freestanding | Application: | Goods Storage |
| Loading Capacity: | 2000~4500kgs/level | Height: | 0-5m |
| Levels: | 3-10 Levels | OEM&ODM: | Available |
| Highlight: | Roll-out Rack,Hand-0perated Storage Rack,Sheet Metal Storage Rack |
||
Product Description

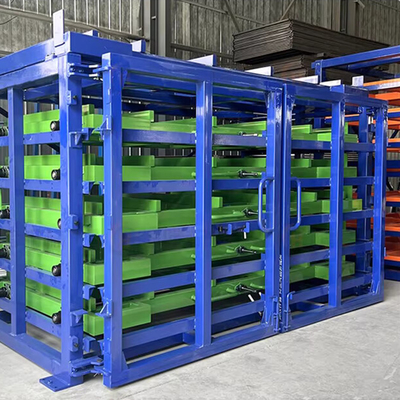

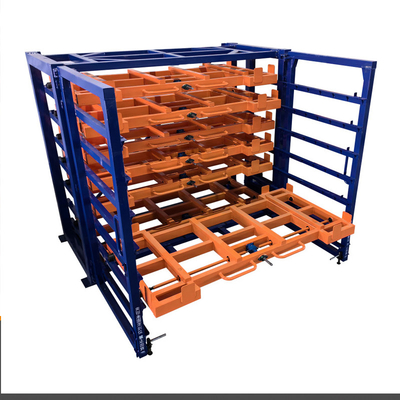

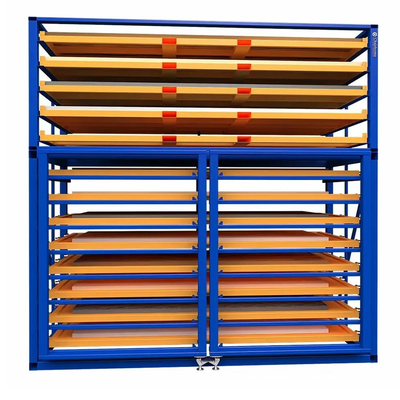

Sheet Metal Storage Rack
——
It is a multi-layer drawer structure. Each drawer can bear 1-5 tons. The length is less than 9 meters and various plates can be put on the shelf for storage and management. The shelf structure is reasonably designed. Each drawer layer can be manually shaken out. Even if it is fully loaded, workers Manual operation is also easy, convenient and safe. It is designed with 5+1 layers, a single layer can bear 5 tons, and a set of shelves can store 30 tons.
Sheet Metal Storage Rack · Warehouse Storage Rack · Made In China
Product Details
—
The multiple drawersare neatly sorted
The number of drawers dependson your individual needs.Drawers can be 100% pulled outfor sorting storage for easy stocktaking
Open door design
Strong bearing capacity,good stability and you can usethe whole hall space and use thesmall space to store largequantities of boards
Rail bearing
Bearing with sealed ring, durable can be easily pulled out of the drawer
Main frame weldingproduction
Easy to use crane, according tolocal conditions to clean the environment, can realize 360 degreeoperation to save time cost andlabor cost
Surface spraying treatment
The number of drawers dependson your individual needs.Drawers can be 100% pulled outfor sorting storage for easy stocktaking
Crane suction cupaccess
Easy to use crane, according to localconditions to clean theenvironment,can realize 360degree operation to save time cost and labor cost
It can be usedwith forklift
Flat plate shelf, using the drawingstructure,clear classification,easy inventory, using the craneto access the plate,reduceloss and waste.
Single access isalso available
Rocker type pulling method, savingtime and labor and convenientstorage, each layer drawerstore a plate, marked plate specifications and models
|
Specifications
|
Load (single layer)
|
Size |
Layers
|
Overall dimensions
|
| B3015-63 | 3t | 3000x1500mm | 5+1 | 3505x2280x2000mm |
| B4015-63 | 5t | 4000x1500mm | 5+1 | 4505x2280x2000mm |
| B4020-65 | 5t | 4000x2000mm | 5+1 | 4505x2280x2500mm |
| B6020-66 | 5t | 6000x2000mm | 5+1 | 6505x2280x2500mm |
| Note: Both manual and electric can be customized, and the load-bearing capacity, length, number of layers, and layer height can be customized. | ||||
Sheet Metal Storage Rack · Warehouse Storage Rack · Made In China
CASE
—
Sheet Metal Storage Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
