B26 Warehouse Radio Shuttle Rack System Shuttle Pallet Racking Shuttle Rack System
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-RSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Style: | Quick Access,adjustable | Function: | Multi-functional Save Space |
|---|---|---|---|
| Material: | Q235 Steel | Usage: | Warehouse Storage System |
| Loading Capacity: | 1500kg | MOQ: | 1 Unit |
| Height: | 7500~11000mm | Depth: | 1000mm |
| Highlight: | Radio Shuttle Rack,Shuttle Pallet Racking,Radio Shuttle Racking |
||
Product Description

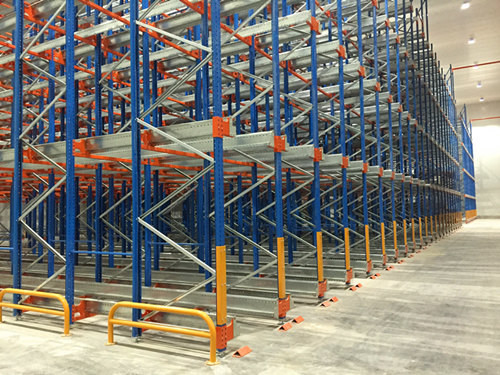

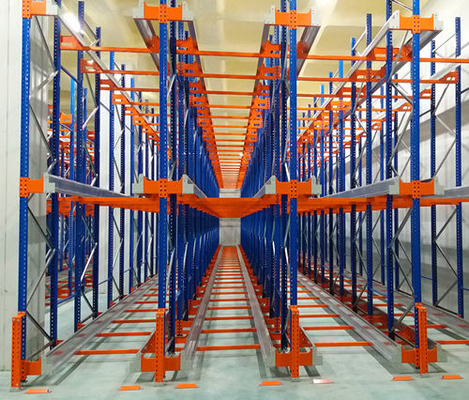

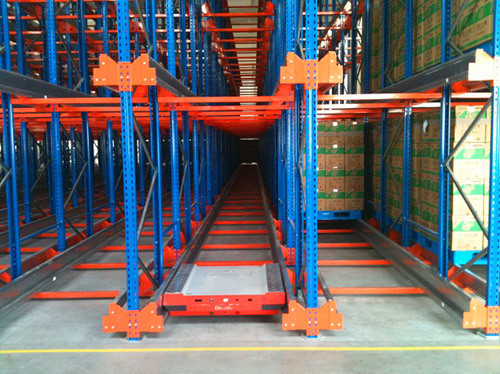

Radio Shuttle Rack
——
Radio Shuttle Pallet Racking is an advanced, automated storage system that combines high-density storage with increased efficiency, making it ideal for warehouses and distribution centers with large volumes of palletized goods. This system integrates a shuttle system, which is operated remotely by a radio frequency (RF) controller, to transport pallets to and from the racking lanes.
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Product Specification
—
Frames
Frames are made up of two uprights with the corresponding horizontal& diagonal bracings, footplates and accessories.
The frames have slots every 75mm to accommodate the beams and supports.
Arms
There are two types of arms, which are single arm (left side and right side single arms) and double arm. The single arm is used in each side of the racks, while the double arm is used in between.
Pallet Support Rails
Support rails are stamp formed and the length can be customized. The rails are designed without connectors to ensure uniform loading.
Top beams and top bracings
Top beams and top bracings are used to increase integrity and stability of the racking system.
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Advantages of Shuttle Racking
—
Effortlessly Intuitive - Our shuttle racking system is designed with user-friendliness at its core, requiring minimal training. Operators can select their preferred inventory management technique with ease, ensuring a seamless integration into any workflow.
Economical Efficiency - Save both time and money by streamlining your storage processes with our state-of-the-art shuttle racking technology.
Enhanced Safety - Minimize risks to human operators and reduce potential damage to equipment and inventory. Our system is designed for remote operation, even allowing you to control it from outside the warehouse.
Unmatched Precision - Achieve greater accuracy in pallet organization, ensuring your inventory is always perfectly arranged.
Extreme Temperature Tolerance - Our shuttle racking system is engineered to operate efficiently in a wide temperature range from 0˚C to +45˚C and/or -30˚C to -1˚C, surpassing human endurance levels.
Energy Efficient - Our shuttle racking solutions offer superior energy efficiency compared to alternative storage systems, significantly reducing your energy costs.
Versatile and Adaptive - Our shuttle racking system is inherently flexible, adept at functioning in irregular spaces and capable of handling a variety of load types.
Radio Shuttle Racking · Warehouse Storage Rack · Made In China

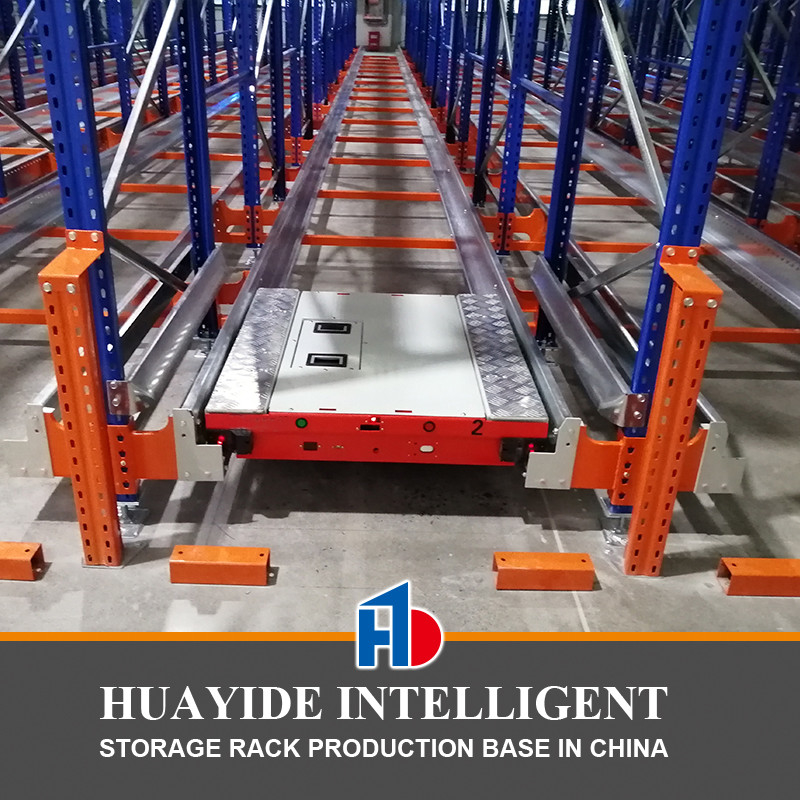

HUADE Radio Shuttle Specification
—
| Item | Basic Parameters | |
| Applicable Pallet Size | 1×1.2m, 1.1×1.2m, 1.2×1.2m | |
| Loading Capacity | 1000kg / 1500kg | |
| Driving | Speed | Empty Speed: 50m/min Full Load: 40m/min |
| Acceleration | ≤0.3m/s² | |
| Motor | Brush servo motor 24VDC 650W | |
| Servo Drive | AB50A100 | |
| Lifting | Hoisting Height | 40mm |
| Motor | Brush motor 24VDC370W | |
| Position Method / Accuracy | Driving: Photoelectric sensor | |
| Pallet positioning: Photoelectric sensor | ||
| Lift positioning: Proximity switch | ||
| Power Supply | Lithium iron phosphate power battery | |
| Battery | 24V, 55A, using time 8H,charging time 4h,Charging time:1000 | |
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
Transport Package
—
Radio Shuttle Racking · Warehouse Storage Rack · Made In China
CASE
—
Steel platform · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
