A30 Electric Telescopic Cantilever Rack For Pipe Storage Roll Out Cantilever Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-ETCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Product Name: | Cantilever Rack | Material: | Q235 Steel |
|---|---|---|---|
| Type: | Multi-Level Racking | Height: | 0-5m |
| Load (Single Layer): | 1t-8t Customizable | Number Of Layers: | 6+1 Customizable |
| Color: | Blue, Orange, Grey White Etc | Finish: | Powder Coated |
| Highlight: | Electric Drive Telescopic Cantilever Rack,Roll Out Cantilever Racking,Pipe Storage Rack |
||
Product Description

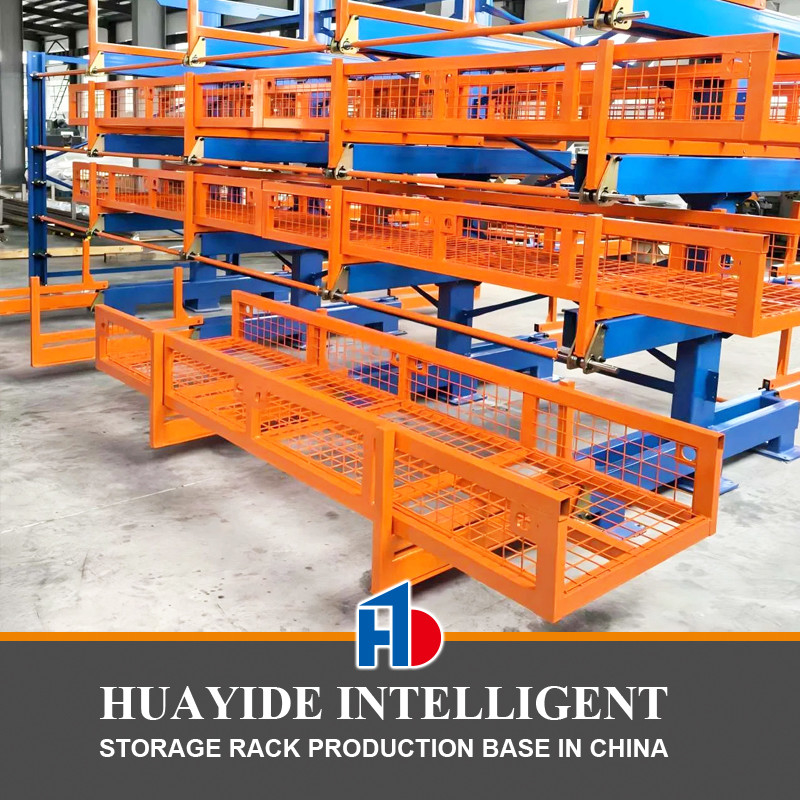

Roll out cantilever racking
——

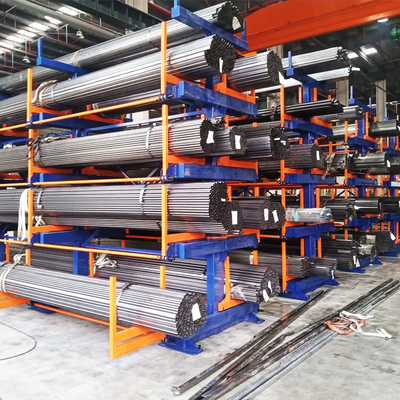

Roll out cantilever racking is ideal for storing and accessing bar stock, angle iron, tube,pipe, rollers, mandrels..etc long material and bulk goods, usually work will take a lot of time and find the right items they need if these items are stored on the ground. Roll out racks will increase your work efficiency and save your warehouse space.
Feature
—
1.Material is handled by crane, no necessary with wider aisles so save space.
2.Sorting and storing any length of material.
3.Time-saving, material can be operated by crane from rack to terminal directly.
4.Solid structure with heavy loading capacity loading Max 5000kgs per layer.
5.100% extended arms, each layers can be accessed easily.
6.Materials can be stored by categories or size, and tray available for leftovers
7.Single or Double units available (Customized dimension) 8.Electrically Drive roll out racking available.
Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China
Roll Out Cantilever rack consists of the following components
—
Uprights: Uprights are an essential part of a cantilever storage rack system. They are installed with the bases, which makes the entire system robust.Uprights are divided into single-sided and double-sided types, made from high-quality Q235 cold-rolled steel as raw material, with a hole spacing of 100mm. The cantilever arms can be adjusted vertically based on hole spacing units.
Beams: Beams, also called arms in cantilever steel rack, act as levels for storing goods. They come in horizontal and tilted (2°~4°) types. Light-duty rack cantilever arms are embedded into the uprights, while heavy-duty rack cantilever arms require bolt connections.
Base: Base Construction Using High Load-Bearing H-Beam for Enhanced Cantilever Rack Stability in Both Vertical and Horizontal Directions
Cross Braces: Cross braces horizontally connect the uprights, and eight forks crisscross connect the uprights, enhancing the torsion and stability of the cantilever rack.
Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China
Technical Indicators
—
Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China

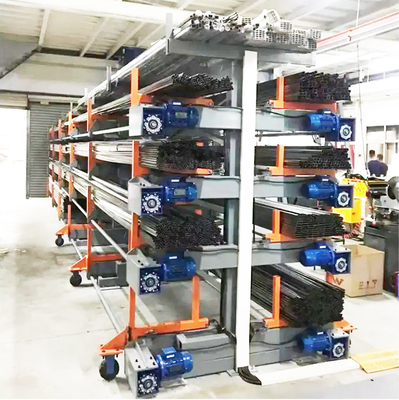

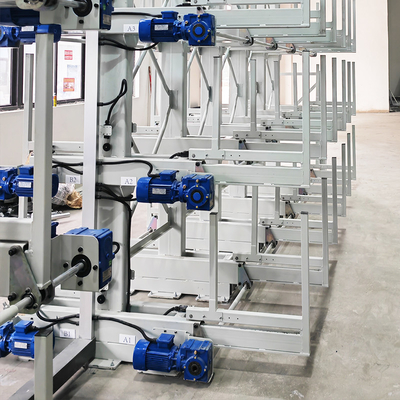

Electric Telescopic Cantilever Rack
—
Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China
Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China
Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China
Manual Cranked Type Cantilever Racking
—
Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China
|
Traditional Cantilever Racks |
Telescopic Cantilever Racks |
|
|
Space |
Ordinary cantilever racks are used in combination with forklifts, which require a wide forklift channel, which has a large overall area and a corresponding reduction in storage capacity. |
The telescopic cantilever rack is used in conjunction with the overhead crane.It does not require a large aisle.The overall shelf occupies a small area, is arranged closely, and has a large storage capacity, which is suitable for small warehouses.The shelf arm itself is retractable, which saves space more.The overall storage capacity is ordinary cantilever. 2-3 times the shelf. |
| Access Efficiency |
Ordinary cantilever racking can only take the upper layer and then the lower layer when picking up the goods, and can only put the lower layer first and then the upper layer when stocking, which is very inconvenient. |
The telescopic cantilever rack can be accessed arbitrarily, regardless of the sequence and height limit. |
| Equipment Investment |
Ordinary cantilever racking are mainly used in combination with forklifts due to their structural limitations.Users need to buy specially equipped forklifts. |
while telescopic cantilever racking are equipped with overhead cranes and cranes to support mechanized access. They are commonly used in factories. No need to purchase additional equipment, saving costs. |
Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
- The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
- The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
- Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
- Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
