B01: Building Post Safety Barrier Traffic Guardrails Warehouse Storage Rack Upright Guard
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-L-BP-SB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 30 ~ 230 per set |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Material: | Memaplex Macromoleclar Polymer | Color: | Yellow And Balck |
|---|---|---|---|
| Application: | Warehouse Safety | Size: | Customized |
| Uvioresistant: | ISO4892-3 | Certificate: | PAS13, TUV |
| Feature: | Anti-Collision | Type: | Flexible |
| Highlight: | Traffic Barrier,Warehouse Protector,Storage Rack Upright Guard |
||
Product Description
Building Post Safety Barrier
Warehouse flexible anti-collision system
——
FS-2023A

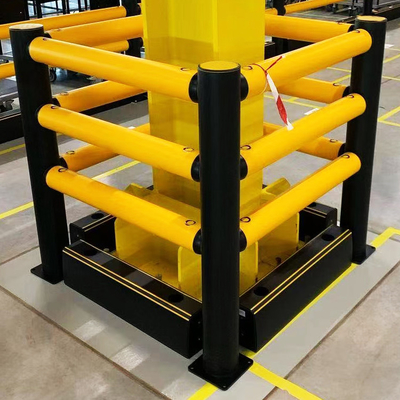

LA-1 Building Post Safety Barrier
——
LA-3 Building Post Safety Barrier
——
Safety Barrier · Warehouse Storage Rack · Made In China
Applicatio: suitable for the protection of specific objects such as building columns and electrical cabinets, so as to prevent heavy forklifts from causing damage to building columns and protect the safety of personnel and assets.
| Position | Absorbable Impact Energy | |
| Vehicles (Tons) | Speed (km/h) | |
|
the impact between forklift and building bollards at 90°, and the impact between forklift tail and 0.8m
|
1.5 | 5 |
| the impact of forklift tail on the bollard column at 90° from the forklift | 1.5 | 4 |
| Part | Characteristic Description |
| Tube | Exclusively designed by imported macromolecular materials, strong weather resistance, durable, original color, iso4892-3 approved, strong chemical resistance, no erosion, low level of chemical activity. |
| Base |
Assembled by sorts of materials, including metal and rubber, visible metallic parts are spray painted in black; neutral salt-fog test 72 hours, do not rust. |
| Ground Connector |
Fixed by inverted cone chemical anchor bolt, with dacromet, withstand 1000 hours exposure to neutral salt spray with no rust . |
Safety Barrier · Warehouse Storage Rack · Made In China
LC-3 Building Post Safety Barrier
——
| Position | Absorbable Impact Energy | |
| Vehicles (Tons) | Speed (km/h) | |
|
The impact between forklift and building bollards at 90°, and the impact between forklift tail and 0.8m
|
2 | 6 |
|
The impact of forklift tail on the bollard column at 90° from the forklift |
2 | 2 |
Safety Barrier · Warehouse Storage Rack · Made In China
| Part | Characteristic Description |
| Tube | Exclusively designed by imported macromolecular materials, strong weather resistance, durable, original color, ISO4892-3 approved, strong chemical resistance, no erosion, low level of chemical activity. |
| Base | Assembled by sorts of materials, including metal and rubber, visible metallic parts are spray painted in black; neutral salt-fog test 500 hours, do not rust. |
| Ground Connector |
Fixed by inverted cone chemical anchor bolt, with dacromet, withstand 1000 hours exposure to neutral salt spray with no rust; fastened by SS304 cap nut. |
Safety Barrier · Warehouse Storage Rack · Made In China
Product Description
——
1. Exclusive development of Memaplex polymer that can absorb impact force.
2. Designed by engineering science, the product has built-in memory performance, and can be restored and reused after collision.
3. The patented technology of dynamic coupling structure can reduce and eliminate dynamic impact energy to achieve the best impact energy absorption effect.
4. 80% of the impact force in the impact process can be absorbed and eliminated, and the base and bolts fixed on the ground get the best protection.
5. The material color is formed naturally in the manufacturing process, the product is not easy to fade, durable, no need to
repaint, light rotation up to 78 class.
6. Strong weather resistance, can avoid temperature difference, cold and other climate factors caused by the material damage, uv protection and testing in line with ISO4892-3 standards.
7. Strong chemical resistance, no corrosion, material chemical activity is very low, in line with ISOTR 10358 standard.
8. Excellent wear resistance, hardness up to 66 (referring to ISO868 standard).
9. The products are non-toxic and the materials comply with international food contact laws and regulations.
10. Scientific engineering design structure can achieve excellent sealing performance of products.
11. Standard base is specially coated (tested for 2000 hours in rapid salt spray environment without any rust).
12. Modular design, high flexibility in installation and maintenance, can realize separate replacement of guardrail beam and column.
13. Green environmental protection, the product can be degradable and recycled, and does not produce any toxic gas when burning.
14. The product is completely insulated and non-conductive.
