STU+Q1P Large and Small Car Solution, STU Workbin Robot, AMR Autonomous Mobile Robot, Warehouse Picking Robot For Transporting And Handling Material Boxes Workbin Material Bin
Product Details:
| Place of Origin: | China |
| Brand Name: | HuaYide |
| Certification: | CE&ISO |
| Model Number: | STU Workbin Robot STU+Q1P |
| Document: | STU Workbin Robot.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Name: | STU Workbin Robot | Material: | Steel |
|---|---|---|---|
| Usage: | Warehouse Picking Robot | Style: | STU+Q1P Large And Small Car Solution |
| Maximum Speed Of Empty Lateral Walking: | 3m/s | Maximum Speed Of Longitudinal Lifting Without Load: | 2m/s |
| Q1P Maximum Speed At No Load: | 2s | ||
| Highlight: | Warehouse Workbin Robot,AMR Autonomous Mobile Robot Warehouse Picking Robot,Warehouse Picking Robot |
||
Product Description

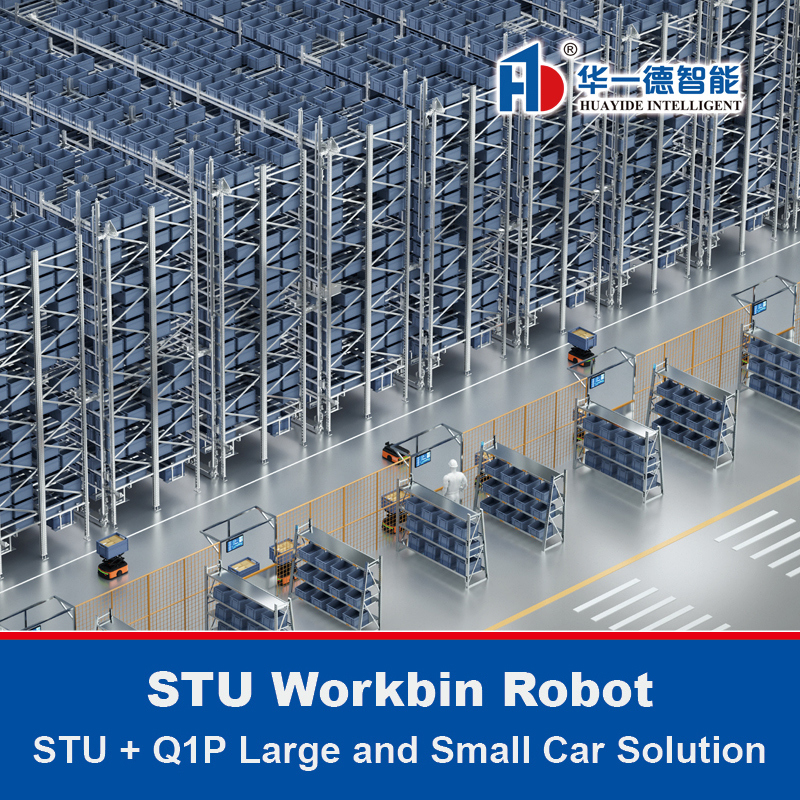

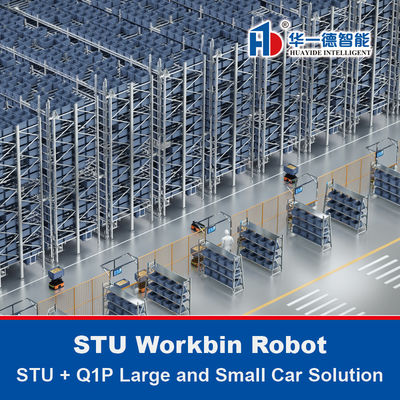

STU Workbin Robot
——
STU+Q1P Large and Small Car Solution

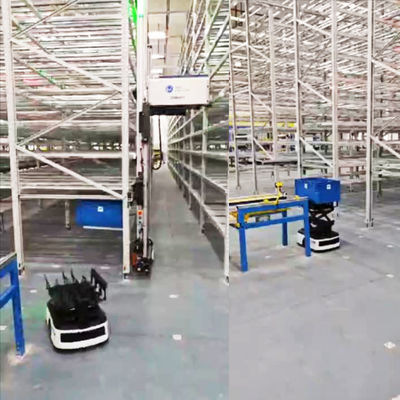

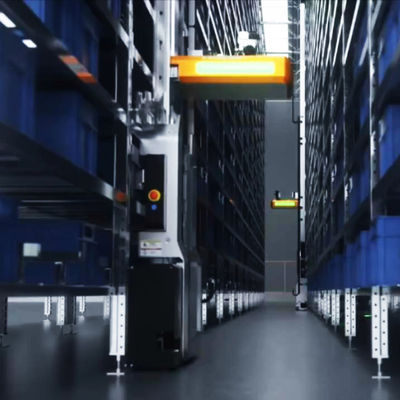

The STU material box robot is responsible for vertical and horizontal container handling between high-level shelves and buffer positions in the tunnel, while the Q1P (latent material box robot) is responsible for horizontal container transportation between buffer positions and workstations. The scheme uses a layer of cache bits as the handover bit between two devices, decoupling tasks and utilizing the advantages of different vehicle models to enable different devices to achieve higher utility.
Q1P:Maximum speed at no load 4m/s The two cars closely followed 2s
STU:Maximum speed of empty lateral walking 3m/s Maximum speed of longitudinal lifting without load 2m/s
Workbin Robot · AMR Autonomous Mobile Robot · Made In China

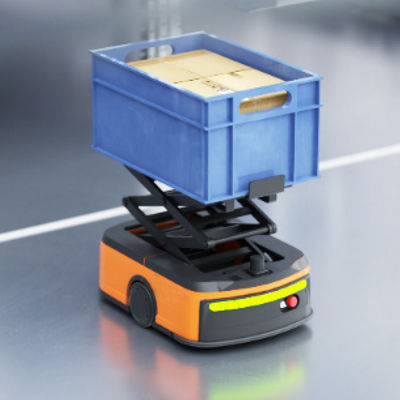

The car is responsible for the horizontal transfer of material boxes between the buffer position and the workstation
|
Lane length / 6m height docking |
20m |
40m |
60m |
|
Efficiency estimate/(box/h): Composite operation (shelf+off shelf), double deep clamping, with a 25% container turnover ratio. |
155 |
132 |
120 |
Workbin Robot · AMR Autonomous Mobile Robot · Made In China
Basic Plan Layout Composition
—
Layout considerations:
1) Shelf and Q1P channel layout according to TRP scheme (CTU large and small vehicles)
2) Maintenance plan: maintenance channel, maintenance area
3) Power supply scheme: electrical cabinet
4) Security door scheme: Reserve space for the security door
Workbin Robot · AMR Autonomous Mobile Robot · Made In China
Repair Car
—
Complete Machine Repair Car Quick Exchange And Transfer:Quickly replace spare vehicles within 30 minutes
Cooperate with tooling operation for 20 minutes to quickly replace components
Auxiliary support > Remove screws > Plug and unplug wiring harness
Quickly replace the driver within 10 minutes
Remove screws > plug and unplug wiring harness
Workbin Robot · AMR Autonomous Mobile Robot · Made In China
