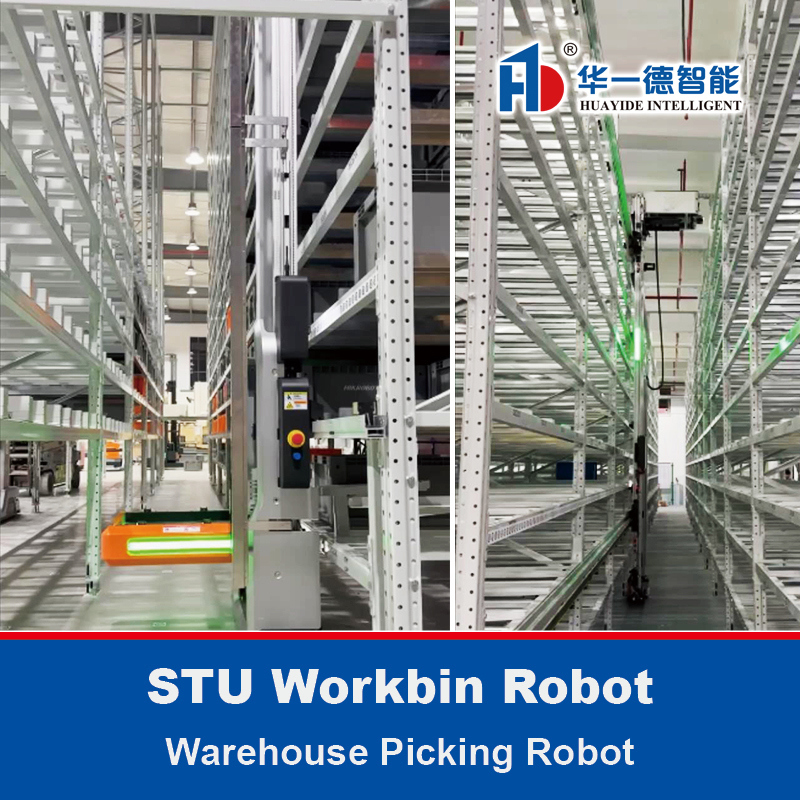

STU Workbin Robot Warehouse Picking Robot AMR Autonomous Mobile Robot For Transporting And Handling Material Boxes Workbin Material Bin

STU  Workbin Robot

——

AMR ( Autonomous Mobile Robot)

The STU series products are a new generation of bin robots developed for high-density and high-efficiency storage scenarios. Their ultra-high operating speed and extremely narrow bin spacing significantly improve storage efficiency and density. Combined with Hikvision Robotics' rich product line, they form multiple application solutions to meet the needs of various scenarios.

Ultra high efficiency: high-speed walking and lifting modules, combined with different power combinations for large and small vehicle solutions and conveyor line solutions, ensure optimal efficiency
Continuous operation: sliding power supply, 24-hour continuous operation
Homework safety: Design for preventing errors in the handling of goods by the executing mechanism; The whole machine is equipped with obstacle avoidance laser to detect abnormal entry and ensure safe operation; Lift and fall protection design, walking anti twist design, etc. ensure operational reliability
Convenient maintenance: The whole machine is modularized, and the maintainability design of the walking power components is improved. The components support quick disassembly; Design specialized maintenance fixtures for quick replacement of the entire machine

Breakthrough bicycle efficiency, enhance throughput capacity
Improve machine efficiency and accelerate circulation efficiency

Break through the bottleneck in vertical transportation capacity
Enhance Z-axis efficiency, further improve space utilization

Workbin Robot · AMR Autonomous Mobile Robot · Made In China

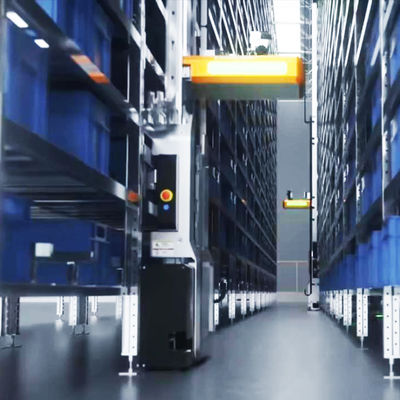

STU Basic Structure

—

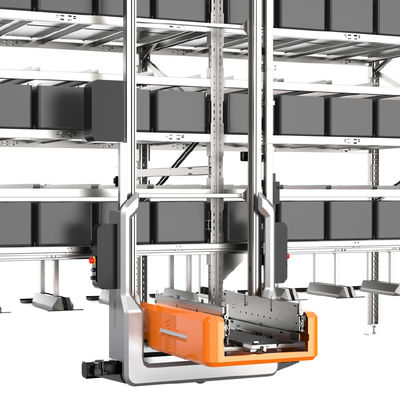

The overall architecture adopts a modular approach, reusing CTU execution mechanism and gantry architecture, and completing adaptation verification and reliability verification.

Walking track
● Walking positioning code
● High precision visual positioning module effectively ensures walking stability and synchronization, with up and down track synchronization reaching ms level

Lift door frame
Lift the gantry mechanism based on CTU gantry architecture for lightweight design, with reliability testing exceeding 7000km

Clamp components
● Clamp and adapt to mixed box/original box handling
● Hook pull suitable ingredient box high-density storage, zero gap between front and back
● Modular design of components, basic reuse of CTU execution mechanisms, diverse types, all of which have undergone over 1.5 million reliability verifications and undergone STU adaptation verification

Human computer interaction and security configuration

—

Workbin Robot · AMR Autonomous Mobile Robot · Made In China

Product Technical Parameters

—

At present, the main focus is on clamping components and hook and pull components, targeting three standard box types: 6040, 6545, and 8060. In the future, more forms of products will gradually be launched.

Note:
1) Car length L needs project evaluation for parallel tunnel direction/hook pull material box
2) Hook and pull single side docking (e.g. left shelf material box can only be transported to left buffer shelf), clamp and hold can

Workbin Robot · AMR Autonomous Mobile Robot · Made In China

STU advantage

—

Warehouse capacity advantage

—

25%

Breakthrough the storage height in the Z-axis direction
The narrow distance of the tunnel can be reduced

20+%

BHigh storage density
The gap between the material boxes narrows

● The container retrieval component supports multiple depth positions and multiple retrieval methods: clamping, hooking, and compressing the distance between left and right boxes and the distance between front and rear boxes to the extreme. These advantages of technology accumulation can be reused in STU.
● STU has better structural advantages, with a single level gantry capable of supporting higher pick-up heights and narrower aisles, resulting in increased warehouse capacity for the same area.

STU machine efficiency upgrade

—

Maximum lateral walking speed:3m/s

Vertical lifting maximum speed:2m/s

● STU runs on the shelf track, achieving higher positioning and loading accuracy, and faster operating speed.
● The maximum lateral walking speed of STU is 3m/s; The maximum vertical lifting speed is 2m/s.
● Through strategy, the horizontal distance of container handling can be optimized, and for application scenarios, STU often does not need to reach a rapid running state. From the beginning of STU design, the acceleration and deceleration performance has been greatly improved.

STU core advantages

—

Single aisle throughput capacity increased by :  2 times+

Single aisle throughput capacity increased by :  3 times

Through specific project plan data calculations, the STRP plan shows that compared to the TRP plan, the efficiency of single equipment container handling in the vertical direction is increased by more than 2 times. STU can effectively increase the throughput capacity of a certain length of roadway, and the throughput capacity of a single roadway can be increased by 3 times.

The proportion of investment in machinery and facilities has decreased
Increased proportion of investment in storage facilities

The investment cost of the material box to person solution project mainly includes robot facilities and storage facilities (mainly shelves). Through specific project plan data calculations, the cost of storage facilities in the overall plan has been further increased compared to the TRP plan, and the investment in storage facilities has directly strengthened the storage capacity. The proportion of robot facility costs in the overall project investment has decreased, resulting in a decrease in the overall solution cost.

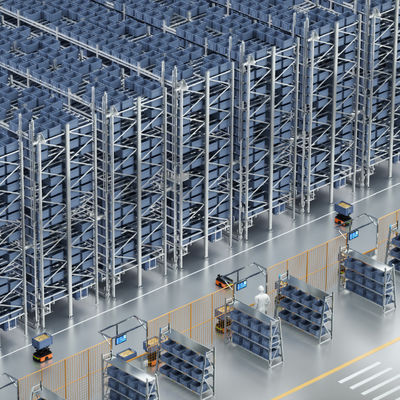

STU mainstream solutions

—

Workbin Robot · AMR Autonomous Mobile Robot · Made In China

Project Case

—

Workbin Robot · AMR Autonomous Mobile Robot · Made In China
