Heavy Duty Pallet Rack Warehouse Storage Racking

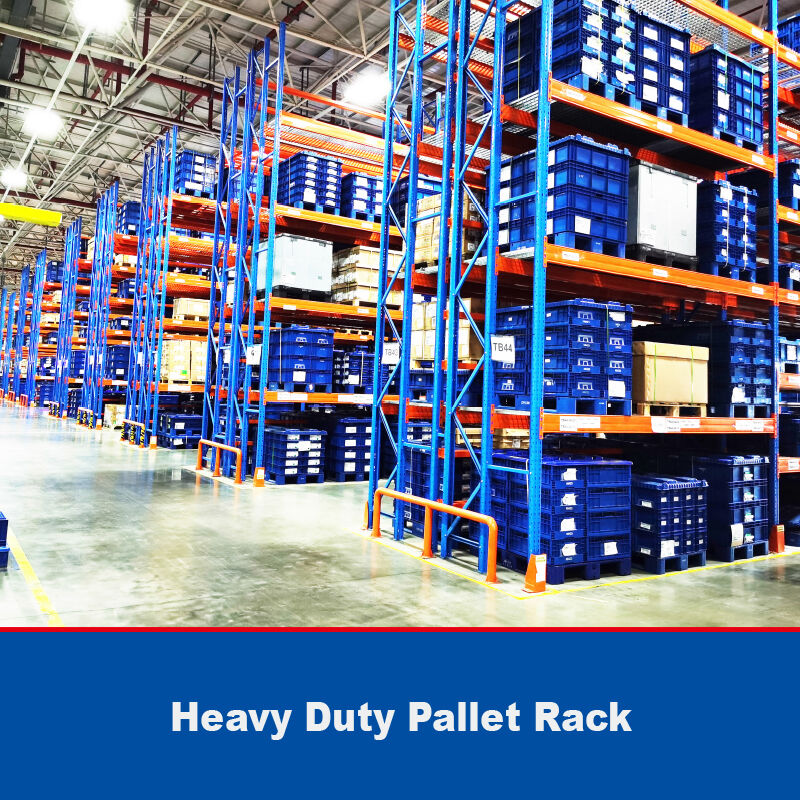

Heavy Duty Pallet Rack

—

Heavy duty rack, also known as beam rack, or cargo rack, belongs to pallet rack, which is the most common form of shelf in various storage shelf systems at home and abroad. Full assembly structure in the form of column piece + beam, simple and effective structure. According to the characteristics of storage unit assembly equipment, functional accessories such as: baffle, steel lamination (steel grid), wire mesh layer, storage cage guide rail, oil barrel rack and so on can meet the requirements of different unit assembly equipment in the form of cargo storage.

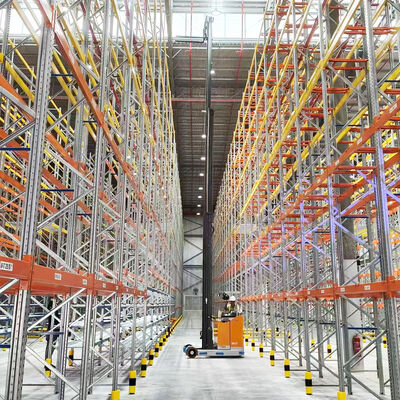

Plug-in composite structure, the height of each beam is easy to adjust by pitch 75mm freely, smart section design and high quality steel.It facilitates the use of most forklift trucks such as common forklift trucks, electric reach trucks, narrow aisle turret trucks, it is the most widely used design scheme of the sorage system.

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Product Structure

—

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Product Advantages

—

The crossbeam adopts the holding weldingbeam, and both ends are welded with hang-ers, also known as column clamps, to con.Nect the columns; the height of the beam can be freely adjusted in multiple of 75mm.Common hole type is diamond hole.

1.It is simple structure, safe and reliable and can be adjusted and combined at will, and the order of items in and out of the warehouse is not restricted. It is widely used in storage modes with pallet storage and forklift access.
2.The column group is connected by bolts with columns, cross braces and diagonal braces. The column group and C-shaped welded beam are plugged into the shelf frame, fixed with safety pins, and the structure is simple and reliable. Each layer can be freely adjusted up and down with a step of 50mm.
3.The beam shelf has the characteristics of large moment of inertia, strong layer load capacity and strong impact resistance. The maximum layer load of each layer can reach 5000kg/layer under relative design.
4.The plasticity is very large. Mold shelves, loft shelves, stereoscopic warehouse shelves, etc. can be built on the basis of pallet shelves. Special oil drum shelves can also be made.
5.The beam racks can effectively increase the storage height of the warehouse and improve the space utilization rate of the warehouse. Suitable for storage of all types of goods.
6.The appearance is safe, and column foot guards and anti-collision bars can be added to prevent forklift collisions. In order to make the layer loading safer, ancillary facilities such as beam shelves, layer boards, mesh cross beams, etc. can also be placed on the beams.
7.Low cost, easy installation and operation, easy to find cargo positions, suitable for any handling tools.
8.The beam shelves can also be equipped with layer boards, which can be steel plates, melamine plates or grid nets. So that pallets of different sizes can be used.
9.Simplicity: The simplest industrial production concept that is easy to understand is used. In addition to the load description, the equipment does not need to consider too much precise data and structural rules. Production line operators can design and make them according to their own workstation conditions.
10.Improve the working environment: In addition to reducing the time and round-trip movement required for picking up and placing parts and tools, the workstation system can also protect the work and workers.

The safety bolt is used to fix the column and beam. Which is moresecure and stable.

The foot piece uses the oversize , the ultrathick welding ground piece , increases itsfirmness fixes with the expansion screw.

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Upright

—

Columns are fixed with screws,Use screws to fix horizontal anddiagonal supports.

Section : 80×60 / 90 × 70 / 100×70 / 120×95

Features : Made with mould,Good loading capacity,Easy assembly

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Beam

—

Super strong welded beam,the beam adopts girders toincrease the load-bearingperformance of the beam.

Distributed Loading Chart

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Product Type

—

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Optional Accessories

—

Support Beam

Steel Board

Galvanised Panel / Wooden Panel

Carton Flow Rack (Gravity Roller Racking)

Back Wire Mesh

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Optional container

—

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Product Packaging And Transportation

——

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Ensure the quality of Huayide racking products

—
