Steel Structure Platform Mezzanine Floor Platform Warehouse Storage Rack
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-SSG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000KGS |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS per Month |
|
Detail Information |
|||
| Material: | Steel Q235 | Color: | Customized |
|---|---|---|---|
| Finish: | Powder Coating | Advantages: | Quick To Assemble, Clean And Easy |
| Capacity Of Rack: | 300kg/m²-600kg/m² | Adaptable: | High Warehouses |
| Sizes: | Customized | OEM: | Available |
| Highlight: | Steel Structure Platform,Mezzanine Floor Platform,Steel Platform |
||
Product Description

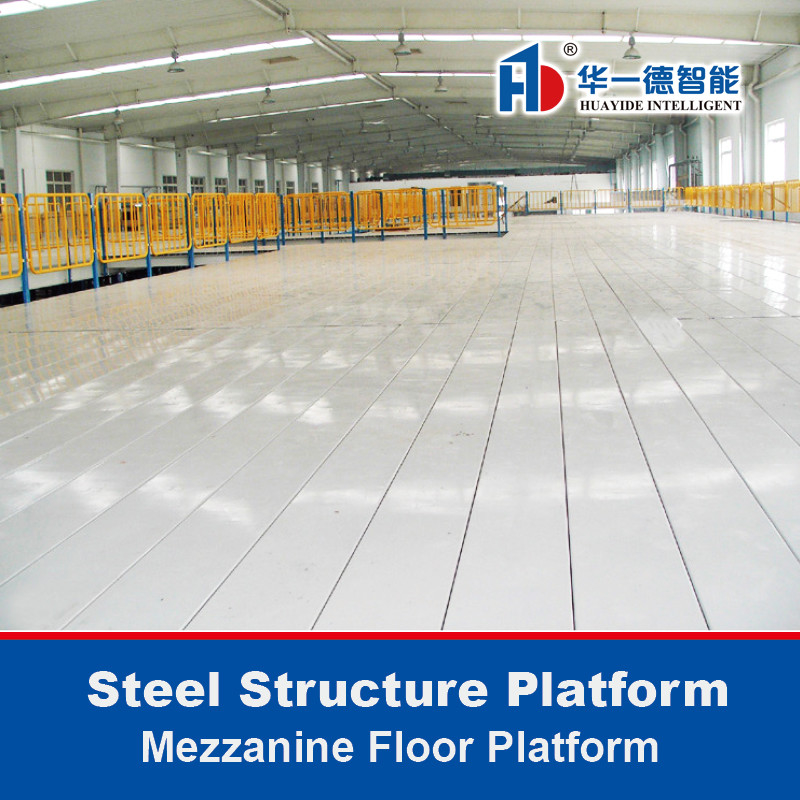

Steel Structure Garret
Mezzanine Floor Platform
——
Mezzanine Floors Racks (Steel Structure Garret) are basically made up of medium-duty shelves or heavy-duty shelves as main support plus floor panels. Floor panels are usually made of cold-rolled steel slabs, patterned steel or steel grille floor panels.
The load capacity per shelf of medium duty A mezzanine floor rack is usually less than 300kg, the floor spacing is usually 2.2m~3.0m, the top shelf height is generally 2m or 1.8m, the floor is 250×40×2.5mm special cold-rolled steel plate, The load can reach 300kg/m² of floor panels, and the second, third or fourth floor loft can be made according to the height of the warehouse, which fully considers the convenience of the staff.
The load capacity of per shelf of medium duty B mezzanine floor rack usually between 300kg and 700kg. The floor spacing is usually 2.2m~4.0m. The top shelf height is generally 2m or 1.8m. The floor is 250×40×2.5mm special cold-rolled steel plate. Surface loading up to 300kg/m²-600kg/m²
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Upright & Main Beam Connect
Both of them are H-steel,Its loading capacity is high and span is long.The major beams are connected by connector piece in each side.It will make the beams moare stable.They are connected with the hanging piece.And the hanging piece is welded on the main beam.So the majorbeam is more stable.
Steel Panel & Guardrail Connect
Steel panel and support beamare connected with hooks.It is very stable.The guardrail hangs on the main beam without holes on the beam.So there is no bad influence on the beam.
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Features & Advantages
——
- Quick to assemble, clean and easy.
- Platform can be easily expanded, moved or modified for future requirements.
- Compatible with most types of handling equipment
- Maximizes space use in any warehouse configuration while retaining optimum product accessibility
- It can be complemented with a variety of shelving systems.
- Suitable for high warehouses, storage small goods, manual access, large volume of storage
- Adaptable to the specific needs of the client, owe to the great variety of sizes available, types of floors, construction systems, et
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
CASE
—
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Mezzanine Floor Platform · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
