A60: Steel Pallet Metal Pallet Iron Pallets For ASRS Automatic Storage And Retrieval System
Product Details:
| Place of Origin: | China |
| Brand Name: | Hua Yide |
| Certification: | CE&ISO |
| Model Number: | steel pallet |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | As per customer requirement. |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 Piece/Pieces per Month |
|
Detail Information |
|||
| Name: | Steel Pallet, Two-way/four-way Access Type | Raw Material: | Q235B |
|---|---|---|---|
| Color: | Blue,red,yellow Or Customized | Static Load: | 500-2000kg |
| Use: | Industrial Warehouse Storage Racking | Advantage: | 100% Environmental Protection |
| Style: | Single Faced | Size: | 1000 (mm) * 1200 * 125 |
| MOQ: | 1 Set | HS CODE: | 73089000 |
| Highlight: | Steel Pallet,Metal Pallet,ASRS Steel Pallet |
||
Product Description
Steel Pallet
—
Steel pallet is unit tool for containers.
—
Steel pallets are also called metal pallets or iron pallets.
Steel pallets are suitable for forklift operation, and easy access to goods. They are mainly used for multi-purpose ground storage, shelf storage and freight transportation, turnover and other ultra-light metal pallet series. Steel pallet is horizontal platform for stowing, stacking, handling and transportation. It is one of the important storage and transportation auxiliary equipment in industry. The main material is steel or galvanized steel plate, formed by special equipment. Various materials support each other, and rivets strengthen pallets.
Steel pallet is a kind of container unit tool used for mechanized loading and unloading, handling and storage of goods. The basic structure is composed of a longitudinal beam or cushion block, leg, etc. under the single-layer pavement. The minimum height of the pallet is based on the principle that forklift trucks or pallet trucks can be easily used.
Steel Pallet · Warehouse Storage Rack · Made In China
Features
—
1.The carrying capacity is the strongest in the pallet.
2.Pallets can be recycled and belong to 100% environmentally friendly products so that resources are not wasted.
3.The pallet's surface is treated with non-slip, and the periphery is wrapped. The chassis is strong, and the overall weight is light with stable packaging performance.
4.Waterproof, moisture-proof and rust-proof
5.Compared with plastic pallets, it has strength, wear resistance, temperature resistance and price advantages.
6.Especially for export, steel pallets do not need fumigation, high-temperature disinfection or anti-corrosion treatment, in line with international environmental regulations.
7.When used on the shelf, the pallet friction coefficient is large. The load is not easy to slide, and the use is safe and reliable.
8.Good rigidity, large bearing capacity, durable, long service life.
9.The design of four-direction insertion virtually improves the use of space and the convenience of operation. And its solid bottom plate design is also in line with the transport roll and automatic packaging system use.
Steel Pallet · Warehouse Storage Rack · Made In China
Technical Parameter
—
| Dimension in mm (L * W * H) |
Entry Type | Panel with gap | Static Load | Dynamic Load | |
| 800*800*125 | 2-way |
Panel 25*100mm, 5 panels, gap 50mm |
2500kgs | 1200kgs | |
| 1000*1000*125 | 2-way |
Panel 25*100mm, 6 panels, gap 60mm |
2500kgs | 1200kgs | |
| 1000*1200*125 | 2-way |
Panel 25*100mm, 7 panels, gap 66mm |
2500kgs | 1200kgs | |
| 1200*1000*125 | 2-way |
Panel 25*100mm, 7 panels, gap 27.5mm |
3000kgs | 1500kgs | |
| 1200*1200*125 | 2-way |
Panel 25*100mm, 11 panels, gap 21.2mm |
3000kgs | 1500kgs | |
| Other sizes | 4-way available | Panel without gap available | |||
Steel Pallet · Warehouse Storage Rack · Made In China
Packaging & Shipping
—
The pallets are stacked on top of each other and wrapped in plastic film to make them a whole. Then it is fixed with a winding tape and finally placed on the wooden bracket. During the packing process, pay attention to bump, do anti-collision and moisture-proof treatment.
Steel Pallet · Warehouse Storage Rack · Made In China

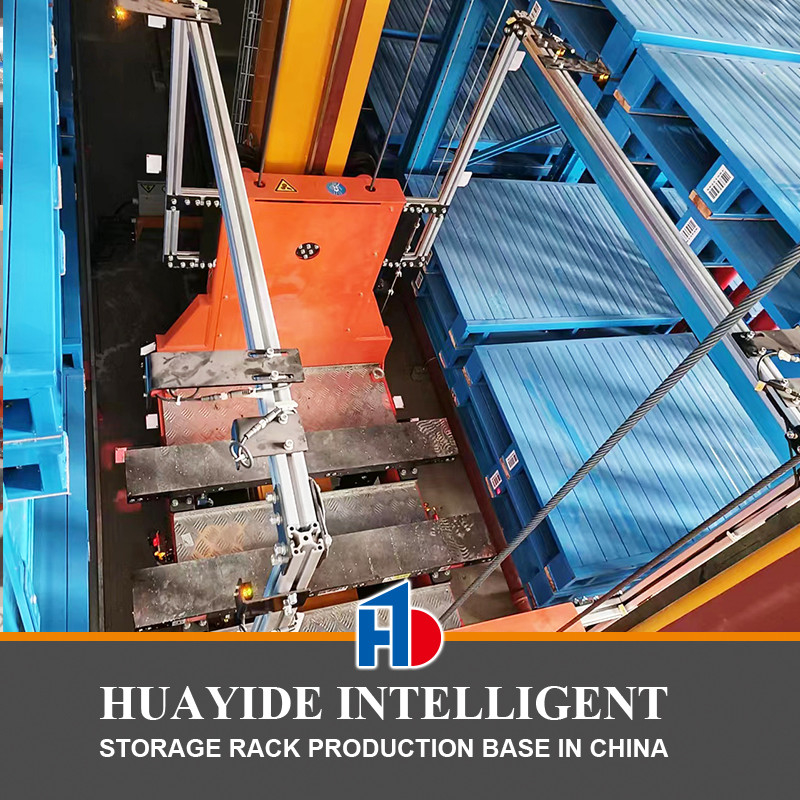

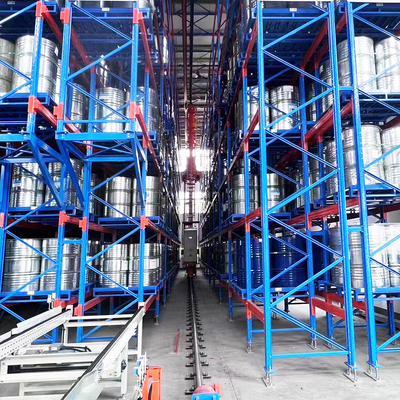

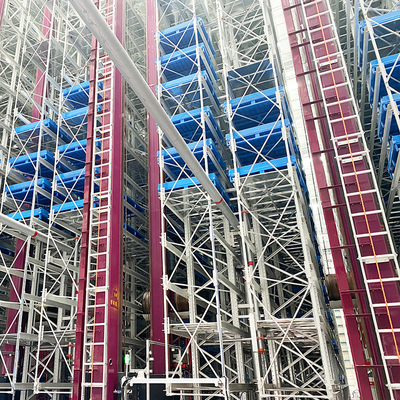

Case
—
Steel Pallet · Warehouse Storage Rack · Made In China
FACTORY SCENE
—
Ensure the quality of Huayide racking products
—
| 1 |
The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 |
The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 |
Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 |
Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
