Medium Duty Rack B Carton Box Storage rack Long Span Rack Warehouse Storage Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | HuaYide |
| Certification: | CE&ISO |
| Model Number: | HYD-MDR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000KGS |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS per Month |
|
Detail Information |
|||
| Material: | Steel / Q235 / Q345 | Feature: | Corrosion Protection |
|---|---|---|---|
| Use: | Warehouse Rack | Load Capacity: | 200kg/level |
| Color: | Blue,grey,red Or Customized | Type: | Long Span Rack |
| High Light: | Medium Duty Rack B,Carton Box Storage rack,Long Span Rack |
||
Product Description

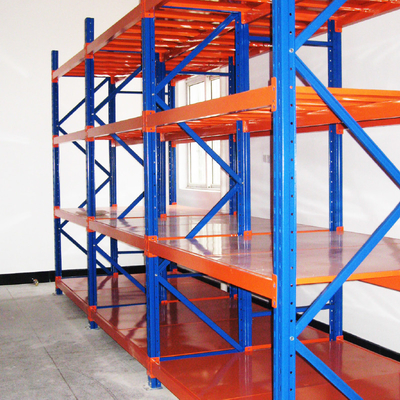

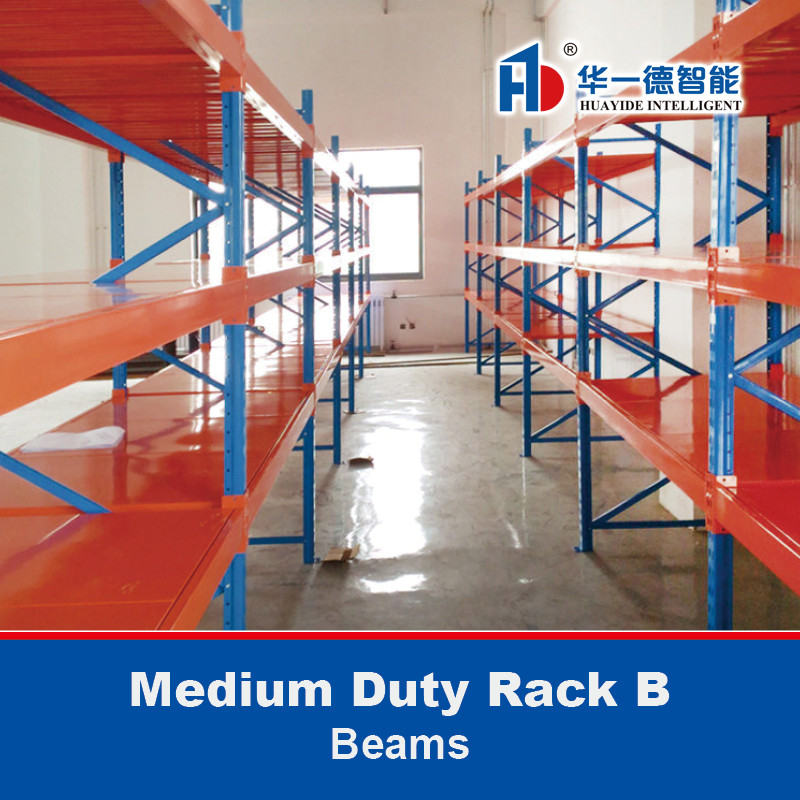

Medium Duty Rack B
Medium duty racking is also called long span rack, It's cut-in composite structure, with upright, step beam, panel and etc
Features:
● Height of each layer is easily to be adjusted every 50mm freely.
● Loading capacity can be up to 200-800kg per layer based on different request.

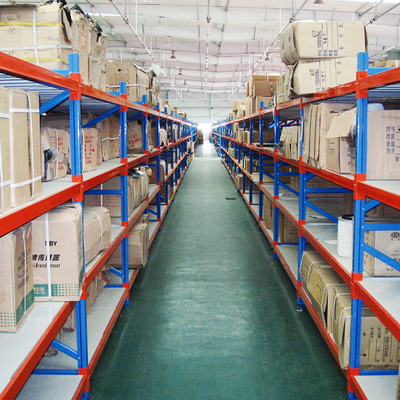

● It is widely used in high density storage of small parts, heavy, large and bulky items.
|
Load Capacity |
200 KG/Layer |
|
Color |
White / Bule / Red,or Customized |
|
Upright Size |
70 × 35×0.6 mm |
|
Beam Size |
60× 40×0.6 mm |
|
Panel Thickness |
0.3 mm |
|
Size(L * W * H )mm |
L:1070 / 1200 / 1500 / 2000 W:400 / 500 / 600 H:2000 / 2500 / 3000 |
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Structural Principles
——
Adjusted Freely
Easy disassembly and assembly.He height can be adjusted freely according to your demand.
Security And Stability
Bolt connection the brace and column with safety pin fixed column and beamncrease stability , more secure and reliable.
Steel Panel
With high-quality material , reinforced ribs on the back , has stronger bearing capacity. Electrostatic spraying , smooth surface.
Foot Plate
Widened and thickened material not easy to slip and shake , make the bottom more stable , and also protect the floor.
Medium Duty Rack B · Warehouse Storage Rack · Made In China
1.Frames 2. Beams 3. Galvanised Picking Shelves 4. Chipboard 5. Frame Union
6.Hd Galvanised Shelves 7. Chipboard Supports 8. Dividers 9.Side Mesh
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Medium Duty Rack B · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
