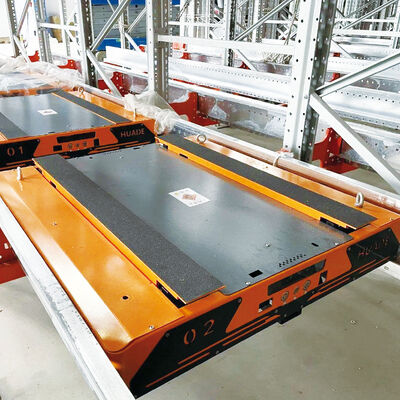

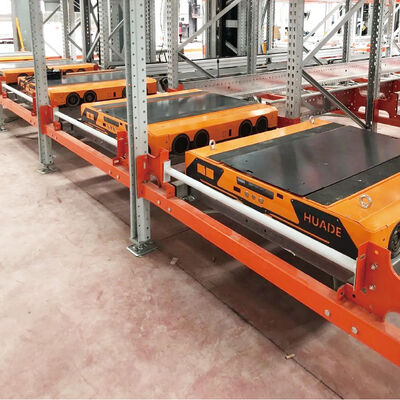

Four Way Radio Shuttle Car For Four-Way Shuttle Pallet ASRS Automatic Storage and Retrieval System Pallet Runner Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | Four Way Radio Shuttle Cart |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic Film Protect&Sponge |
| Delivery Time: | Negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | <50000 Kilograms |
|
Detail Information |
|||
| Name: | Four Way Radio Shuttle Cart | Product Category: | Fully Automated Storage System |
|---|---|---|---|
| Material: | Steel | Loading Capacity: | Up To 1500 Kg/Pallet |
| Surface Treatment: | Powder Coating / Galvanized | Principal: | Four Direction Moving, Layer Changing On Vertical And Intelligent Control |
| Space Utilization: | Reduce Warehouse Land By More Than 50% | Operation Temperature: | -30°C～0°C～+ 45°C |
| Highlight: | Four Way Radio Shuttle Cart,4 Way Radio Shuttle Racking,pallet runner rack system |
||
Product Description
Four-way Shuttle Cart
——
Four direction moving, layer changing on vertical and intelligent control
The pallet four-way shuttle is an intelligent device used for pallet cargo handling. It can achieve both vertical and horizontal travel, and can reach any position in the warehouse. The horizontal movement and retrieval of goods in the shelf is completed by only one four-way shuttle car. The level of system automation is greatly improved through hoisting. It is a new generation of intelligent handling equipment for pallet-type dense storage solutions.
All system components of Four Way Shuttle ASRS are designed, engineered and manufactured by ourselves to ensure system compatibility and long useful life. Our hardware over time has resulted in enhanced safety and design plus advanced technology and functionality, providing you with a unique, automated, high density storage solution.
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China
Technical Specifications
——
| ITEM | Shuttle Body (L*W*H ) | Pallet Dimension |
| Standard Shuttle Dimension | 1100L*980W*150Hmm | 1200W*1000D |
| 1200L*980W*150Hmm | 1200W*1100D | |
| 1300L*980W*150Hmm | 1200W*1200D | |
| Self Weight | 450kg | |
| Loading Capacity | 1000kg | |
| Lifting Distance | 40mm, ≤5s | |
| Working Temperature | 0-40ºC | |
| Communication Mode | Wireless AP | |
| Power Supply | lithium battery, 48V36 /45 /60AH | ≥8H continuous work |
| Driving Speed (empty) | 1.5m/s | |
| Driving Speed (load) | 1.0m/s | |
| Acceleration | 0.3m/S2 | |
| Battery Service Life | 2000 charging times | 1.5-2H charging time |
| Addressing | Laser, ±2mm |
HUAYIDE latest four way shuttle transport technology (rack entry vehicle) enables these multiple deep pallets at any level can be accessed. The solution can be applied into a smaller building footprint, and in return less impact on its surrounding environment.
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China

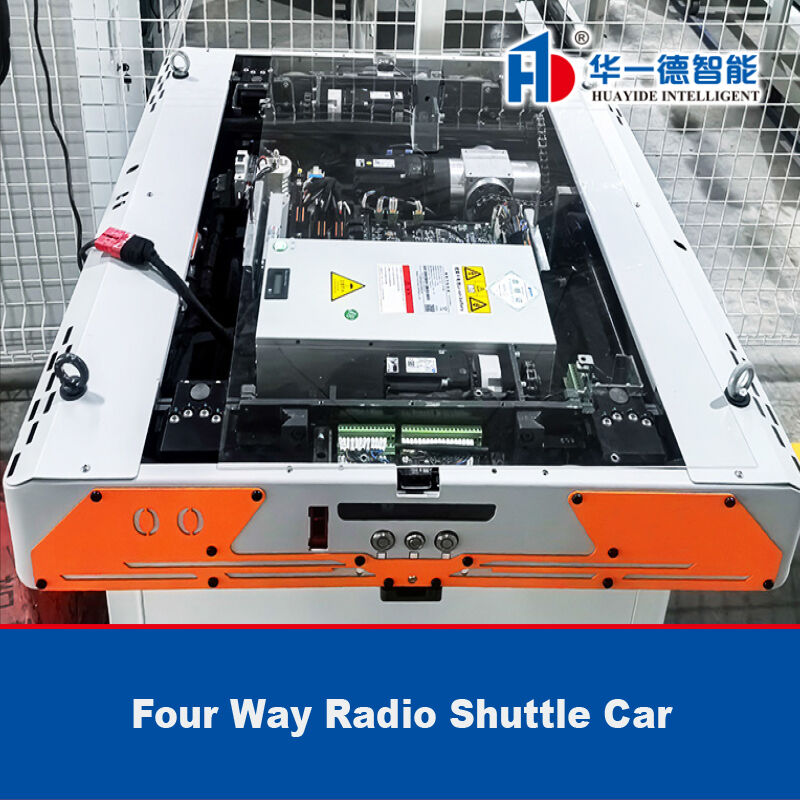

Four Way Radio Shuttle Car
Room Temperature Type
—
Common Design Operating temperature: 0°C to +45°C
Room Temperature Warehouse ( Four Way Radio Shuttle ASRS )
● Advantages
1) Can drive in four directions, operate efficiently and flexibly across the roadway, without space restrictions, make full use of space;
2) Connect to the control system through a wireless network, and can go to any cargo location in cooperation with the hoist;
3) The four-way shuttle cart system is modular and standardized to realize discrete handling;
4) Flexible layout and high storage density;
5) Cooperate with patented track, the system cost is low;
● Technical Specification
| Model | Load |
Running speed |
pallet size (mm) |
Operating temperature |
powered by |
Battery performance |
Equipment weight |
|
Standard model |
Max1.5T | 1.4m/s |
width:1200-1600 depth:800-1200 |
0～45℃ | 72V/32AH | Lithium iron phosphate battery,Endurance7-9H | 350kg |
|
Increase model |
Max2T | 1.2m/s |
width:2200 depth:2200 |
0～45℃ | 48V/40AH | Lithium iron phosphate battery,Endurance6-8H | 580kg |
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China
Four Way Radio Shuttle Car
Cold Storage Type
—
Common Design Operating temperature: -25°C to 0°C
Cold Storage Warehouse ( Four Way Radio Shuttle ASRS)
The four-way shuttle for cold storage is a special handling and transportation intelligent storage equipment for cold warehouse. It can safely and stably store and distribute goods in the low temperature.
● Advcantages of four-way shuttle for cold storage:
1) Using low-temperature batteries to ensure normal driving in the cold storage;
2) Laminating the circuit board;
3) The hydraulic system uses low-temperature hydraulic oil to ensure that the hydraulic pressure can run normally at low temperatures.
● Technical Specification
|
Model |
Load |
Running speed |
pallet size (mm) |
Operating temperature |
powered by |
Battery performance |
Equipment weight |
|
Cold storage model |
Max1.5T | 1.0m/s |
width: 1200-1600 depth: 800-1200 |
-25℃～0℃ | 72V/35AH |
Lithium iron phosphate battery; Endurance5-6H |
450kg |
| Max1.2T | 1.2m/s |
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China
Auxiliary Equipment
——
Battery Charging Equipment
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China
Product Packaging
——
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
