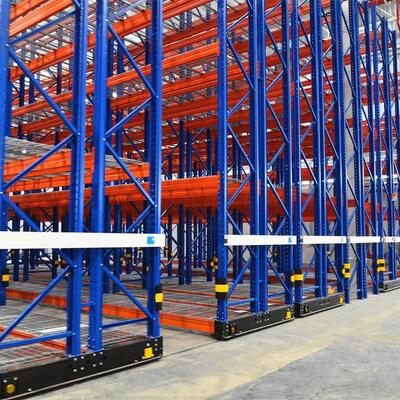

• Electric Mobile Pallet Racking  Rail-Guided Electric Mobile Rack Warehouse Storage Racking

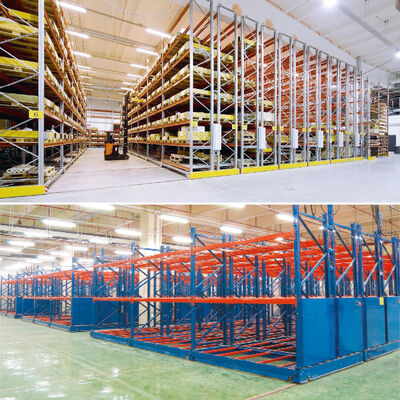

  • Electric Mobile Pallet Racking  Rail-Guided Electric Mobile Rack Warehouse Storage Racking

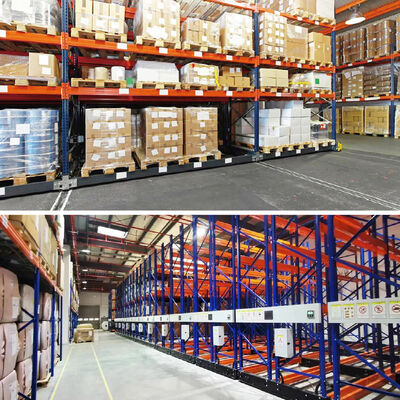

  • Electric Mobile Pallet Racking  Rail-Guided Electric Mobile Rack Warehouse Storage Racking
  • Electric Mobile Pallet Racking  Rail-Guided Electric Mobile Rack Warehouse Storage Racking
  • Electric Mobile Pallet Racking  Rail-Guided Electric Mobile Rack Warehouse Storage Racking
Electric Mobile Pallet Racking  Rail-Guided Electric Mobile Rack Warehouse Storage Racking

Electric Mobile Pallet Racking Rail-Guided Electric Mobile Rack Warehouse Storage Racking

Product Details:

Place of Origin: China
Brand Name: Huayide
Certification: ISO&CE
Model Number: HYD-EMR

Payment & Shipping Terms:

Minimum Order Quantity: 5000KGS
Price: USD1.1~1.29/KGS
Packaging Details: Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack
Delivery Time: 10-20 working days
Payment Terms: L/C, T/T
Supply Ability: 900000KGS Per Month
Get Best Price Contact Now

Detail Information

Features: Automated High-Density Storage Product Name: Electric Mobile Pallet Rack Rack(Rail-guided)
Product Category: Semi-automated Storage System Material: Steel
Application Environment: Normal Temperature,Cold Storage,Explosion Proof Warehouse Surface Treatment: Powder Coated
Unit Load: Max.32ton Unit Control Mode: Manual, Automated, Centralized System, Remote Control
High Light:

Electric Mobile Pallet Racking

,

Electric Mobile Pallet Rack

,

Electric Mobile Racking

Product Description



Electric Mobile Racking System
——      Rail-Guided   ——



Electric Mobile Racking SystemElectric Mobile Racking System

Electric Mobile Pallet Racking  Rail-Guided Electric Mobile Rack Warehouse Storage Racking 2



  • The electric mobile racking system is ideal for users who want to expand storage but are limited by the floor space in the warehouse. The maximumly used floor space render the mobile racking system a perfect choice for cold storage.
  • Only one channel, the space utilization rate is very high. The bearing trolley is driven by the motor, and the trolley is placed with beam type shelves and cantilever shelves. The frequency conversion speed regulation makes the shelves extremely stable from start to brake, and the safety is guaranteed.
  • According to the bearing, electric mobile racking system can be divided into heavy, medium and light three kinds, generally heavy racks use electric control for easy movement, light and medium generally use hand movement. The shelf system can greatly improve the utilization rate of the warehouse area, so it is widely used in the media, library, finance, food and other industry warehouses.









Electric Mobile Pallet Racking  Rail-Guided Electric Mobile Rack Warehouse Storage Racking 3








Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China






Product Advantage

 —

  • Easy to use ,higher reliability.Height is higher than trackless.
  • Larger load capacity, each column can reach more than 30 meters in length.
  • Lower price than trackless, saving investment costs.



Electric mobile racking system  Electric mobile racking system





Technical Specifications

 —



System Type Unit Load Speed Motor Power Power Control Mode
Rail-guided Max.32ton Unit Max10m/min 0.4-1.5KW

AC380V(50/60Hz)

AC200/220V

Manual, Automated

Centralized system

Remote Control





Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China






Product Categories



1.  Open mobile racks
The transmission mechanism is arranged in the base of the rack, and the operation panel is arranged at the end of the shelf, with a simple appearance and convenient operation. The front and rear of the shelf are equipped with safety line switches, and the entire shelf will stop immediately when an obstacle is encountered.



Electric mobile racking system(Rail-guided)











2.  Closed mobile racks
When the closed mobile racks do not need to access the goods, after the shelves are moved together, they are all closed and can be locked. Rubber seals are installed at the interface of each shelf, also known as closed shelves.



Electric Mobile Racking System  Rail-Guided





3.  Electric Mobile Cantilever Racking System



Electric Mobile Cantilever Racking System  Electric Mobile Cantilever Racking System







Electric Mobile Pallet Racking  Rail-Guided Electric Mobile Rack Warehouse Storage Racking 3








Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China




Applicable Scope

Suitable for cold storage, explosion-proof and need higher warehouse utilization situations;





Electric mobile racking system(Rail-guided)  Electric mobile racking system(Rail-guided)

Electric mobile racking system(Rail-guided)  Electric mobile racking system(Rail-guided)





Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China




Structural Principles



  • Electric mobile racking system is a high-density system for optimizing the space in the warehouse, where the racks are put on mobile chassis guided through tracks on the floor, although the advanced configuration can work without tracks.
  • The chassis is equipped with motor enabling the racks to move along the tracks, leaving the opening for the forklift to access. Opening of only one aisle is required instead of many aisles for forklift to go through as in traditional selective racking system.



Electric mobile racking system



  • The electric mobile racking system is equipped with PLC to execute commands from the remote control by the operator, smart functions like increasing the opening gap between chassis for better air circulation could be done through PLC programming, such functions make it a semi-automated racking system.
  • Upright frames are fixed to the chassis, and beams are used to load the pallets and connect the uprights and chassis, sometimes shelves are used for storage of smaller items. Because the height a forklift could reach is often limited, this racking system is usually for warehouses with low and medium height.



Electric mobile racking system(Rail-guided



Advantages of electric mobile racking system:
1 ) Suitable for cold storage, explosion-proof and need higher warehouse utilization occasions;
2 ) No chain transmission, simple and reliable structure, low failure rate
;
3 ) By computer control, automatic, semi-automatic, manual function;
4 ) Can realize single column movement; multi-column group movement can be realized. Uniform dispersion can be achieved
;
5 ) Single lane movement is available;multi-lanes movement is available;dispersed evenly is achievable;
6 ) Set up a channel, good sealing, expand the warehouse utilization space. Compared with ordinary shelves, it can improve the warehouse utilization rate of about 80%;
7 ) Fewer channels, no need to find channels when accessing goods, high storage efficiency;
8 ) The structure of the electric mobile rack is simple, the operation is simple, not only the operation process is safe and reliable, but also the emergency movement when the power is cut off;
9 ) Electric mobile racks only need to be equipped with forward forklifts or balanced forklifts to be used. Electric mobile shelves have low operation requirements for forklifts;
10 ) With anti earthquake dumping function;
11 ) Protective measures such as emergency stop switches, photoelectric access barriers, manual release systems, proximity sensors as well as photoelectric safety barriers are in place to ensure the safety of workers and goods;







Electric mobile racking system



Single Deep Heavy Duty Pallet Rack Single Deep Heavy Duty Pallet Rack



Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China






Working Principle

——



Two rows of back-to-back racks are installed on the mobile base in a group, in a multi-group arrangement, each base is equipped with multiple rollers and drive motors. Through the operation of the electronic control button control motor to drive the entire mobile base along the floor rail together to move, after moving to the operation aisle required by the forklift, you can access the goods, the mobile rack system is mainly composed of racks, mobile bases, motors, floor rails and electronic control electric parts.

Heavy-duty capacity makes it a natural choice for a number of storage challenges, from equipment and supplies to freezer and cooler storage. The ability to anchor this mobile pallet racking system to existing concrete makes it a cost-effective solution for increasing capacity in any space, without the need for renovation or expansion.



Single Deep Heavy Duty Pallet Rack Single Deep Heavy Duty Pallet Rack

Mobile Base / Drive Motor

Single Deep Heavy Duty Pallet RackSingle Deep Heavy Duty Pallet Rack

Mobile Carriagee / Electrical Control Panel



Single Deep Heavy Duty Pallet Rack Single Deep Heavy Duty Pallet Rack

Sensore / Floor Rails





Two ways to lay the floor rails:
1. Laying of floor rails on existing ground (it is necessary to lay the rails in the ground pits and then carry out secondary cement pouring, and use after the cement ground is hardened)
2. Laying the floor rail on the ground floor of the new warehouse (directly when the warehouse floor is built, the floor rail is pre-buried, and the ground and floor rails are leveled flat)



Heavy Duty Rack Heavy Duty Rack

The first layer of concrete is poured to a depth of 100MM and then the floor rail is laid, and then the second layer is poured to the horizontal plane.



Safety Protection Function

The mobile rack is operated manually or automatically by means of an integrated PLC system, The PLC software may be adapted to the client's specific needs or linked to client's WMS. Safety is guaranteed by a photoelectric beam system. mounted on mobile rack upright. Adding P&D locations may further increase the warehouse efficiency, resulting in a higher return on investment.



Heavy Duty Rack Heavy Duty Rack



Touch Screeen And Operation Panelh

Heavy Duty Rack Heavy Duty Rack



Different Choices Of Panel For Holding Goods

——



Heavy Duty Rack Heavy Duty Rack



Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China




Safety Equipment

  • Huayide Electric Mobile racking have obtained CE certification issued by European authorities,In order to prevent safety problems caused by people or forklifts entering the aisle when the racking are running, the electric mobile racking are equipped with multiple safety devices.
  • During the operation of the shelf, if there is a foreign object in the aisle, or a person, a forklift enters the aisle, the electric mobile shelf will automatically stop running and issue an acoustic and visual alarm.



Electric mobile racking system  Electric mobile racking system



Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China






Radio Shuttle Racking



Electric mobile racking system Electric mobile racking system

Electric mobile racking system Electric mobile racking system

Electric mobile racking system Electric mobile racking system



Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China




Electric mobile racking system  Electric mobile racking system

Electric mobile racking systemElectric mobile racking system



Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China




Electric mobile racking system  Electric mobile racking system

Electric mobile racking system  Electric mobile racking system

Electric mobile racking system  Electric mobile racking system

Electric mobile racking systemElectric mobile racking system



Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China




Electric mobile racking systemElectric mobile racking system



Electric mobile racking systemElectric mobile racking system



Electric mobile racking system  Electric mobile racking system



Electric mobile racking systemElectric mobile racking system



Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China




Electric mobile racking system  Electric mobile racking system

Electric mobile racking system  Electric mobile racking system

Electric mobile racking systemElectric mobile racking system



Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China






Ensure The Quality Of Huayide Racking Products

 —

  • The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
  • The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
  • Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
  • Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
