Electric Mobile Pallet Racking Rail-Guided Ground Track Guidance Open Type Electric Mobile Rack Warehouse Storage Rack
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | ISO&CE |
| Model Number: | Electric Mobile Rack (Rail-guided）Open Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 900000KGS Per Month |
|
Detail Information |
|||
| Features: | Automated High-Density Storage | Product Name: | Electric Mobile Rack (Rail-guided）Open Type |
|---|---|---|---|
| Product Category: | Semi-automated Storage System | Material: | Steel |
| Application Environment: | Normal Temperature,Cold Storage,Explosion Proof Warehouse | Surface Treatment: | Powder Coated |
| Unit Load: | Max.32ton Unit | Control Mode: | Manual, Automated, Centralized System, Remote Control |
| Highlight: | Electric Mobile Pallet Racking,Electric Mobile Pallet Rack,Electric Mobile Racking |
||
Product Description

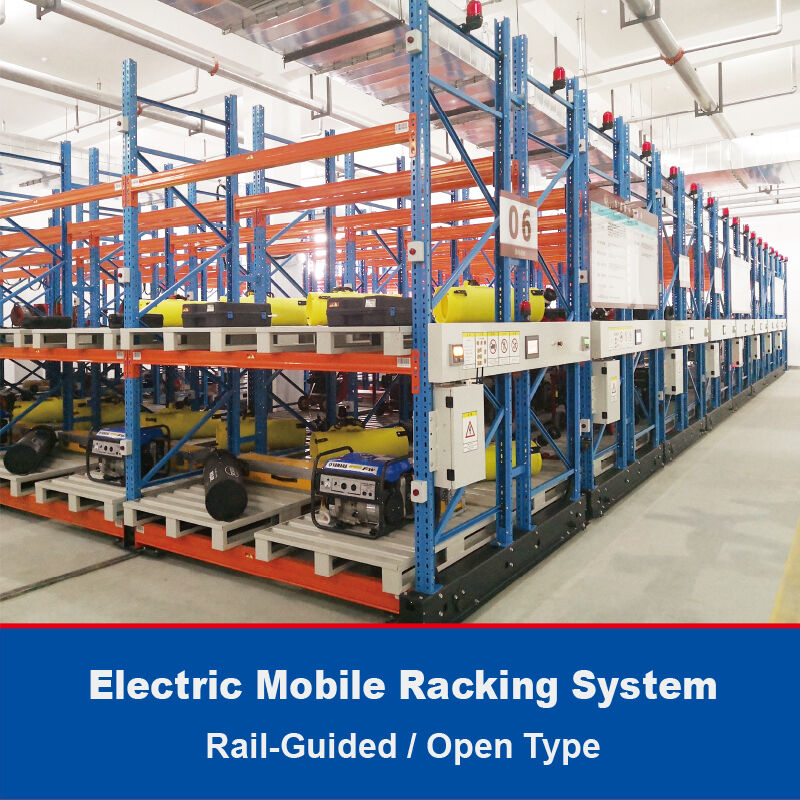

Electric Mobile Racking
—
Rail-Guided / Open Type / Ground Track Guidance
Two rows of back-to-back racks are installed on the mobile base in a group, in a multi-group arrangement, each base is equipped with multiple rollers and drive motors. Through the operation of the electronic control button control motor to drive the entire mobile base along the floor rail together to move, after moving to the operation aisle required by the forklift, you can access the goods, the mobile rack system is mainly composed of racks, mobile bases, motors, floor rails and electronic control electric parts.
Heavy-duty capacity makes it a natural choice for a number of storage challenges, from equipment and supplies to freezer and cooler storage. The ability to anchor this mobile pallet racking system to existing concrete makes it a cost-effective solution for increasing capacity in any space, without the need for renovation or expansion.
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Open Type
—
The transmission mechanism is arranged in the base of the rack, and the operation panel is arranged at the end of the shelf, with a simple appearance and convenient operation. The front and rear of the shelf are equipped with safety line switches, and the entire shelf will stop immediately when an obstacle is encountered.
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Advantages
—
1) Easy to use ,higher reliability.Height is higher than trackless.
2) Larger load capacity, each column can reach more than 30 meters in length.
3) Lower price than trackless, saving investment costs.
Technical Specifications
—
| System Type | Unit Load | Speed | Motor Power | Power | Control Mode |
| Rail-guided | Max.32ton Unit | Max10m/min | 0.4-1.5KW |
AC380V(50/60Hz) AC200/220V |
Manual, Automated Centralized system Remote Control |
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

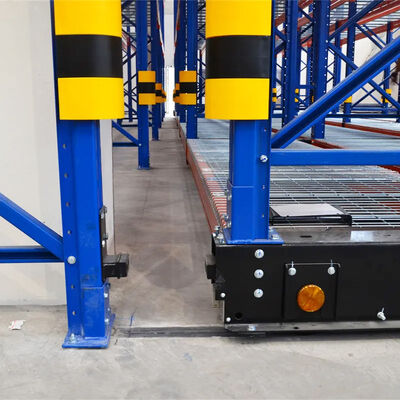

Structural Principles
—
Mobile Carriage / Drive Motor
Mobile Base
Floor Rails
Sensore
Two ways to lay the floor rails
—
1. Laying of floor rails on existing ground (it is necessary to lay the rails in the ground pits and then carry out secondary cement pouring, and use after the cement ground is hardened)
2. Laying the floor rail on the ground floor of the new warehouse (directly when the warehouse floor is built, the floor rail is pre-buried, and the ground and floor rails are leveled flat)
The first layer of concrete is poured to a depth of 100MM and then the floor rail is laid, and then the second layer is poured to the horizontal plane.
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Safety Equipment
—
1)Huayide Electric Mobile racking have obtained CE certification issued by European authorities,In order to prevent safety problems caused by people or forklifts entering the aisle when the racking are running, the electric mobile racking are equipped with multiple safety devices.
2)During the operation of the shelf, if there is a foreign object in the aisle, or a person, a forklift enters the aisle, the electric mobile shelf will automatically stop running and issue an acoustic and visual alarm.
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China

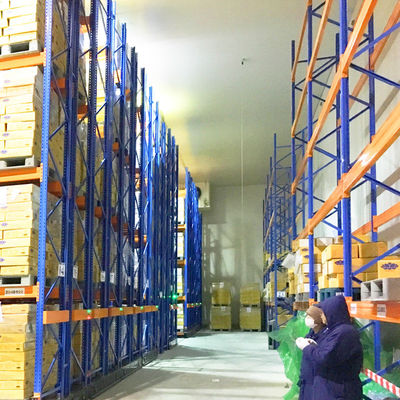

CASE
—
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Ensure The Quality Of Huayide Racking Products
—
- The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
- The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
- Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
- Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
