Electric Mobile Rack Rail-Guided Ground Track Guidance Closed Type Electric Powered Motorized Mobile Heavy Duty Pallet Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | ISO&CE |
| Model Number: | Electric Mobile Rack Rail-Guided Closed Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Palletized,Export-Purpose Packaging |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 900000KGS Per Month |
|
Detail Information |
|||
| Name: | Electric Mobile Rack Rail-Guided Closed Type | Material: | Grade Q235 (or SS400) Q345 |
|---|---|---|---|
| Finishing: | Powder Coated Or Galvanized | Design Service: | Free CAD Service Available |
| Layer: | 1-5 Layer | Depth: | 0.8-3.0mm |
| Weight Capacity: | 500-5000kg/layer | Application: | Warehouse |
| Highlight: | Electric Mobile Rack,Heavy Duty Pallet Rack,Warehouse Mobile Racking |
||
Product Description

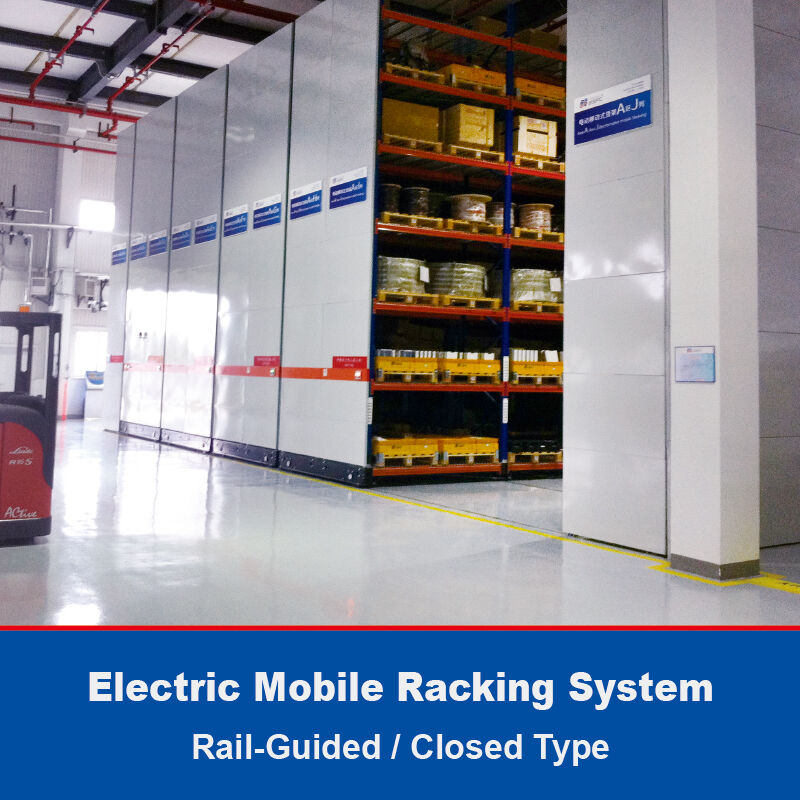

Electric Mobile Racking
—
Rail-Guided / Closed Type / Ground Track Guidance
Electric mobile racking system is a high-density system for optimizing the space in the warehouse, where the racks are put on mobile chassis guided through tracks on the floor.The chassis is equipped with motor enabling the racks to move along the tracks, leaving the opening for the forklift to access. Opening of only one aisle is required instead of many aisles for forklift to go through as in traditional selective racking system.Upright frames are fixed to the chassis, and beams are used to load the pallets and connect the uprights and chassis, sometimes shelves are used for storage of smaller items. Because the height a forklift could reach is often limited, this racking system is usually for warehouses with low and medium height.
The electric mobile racking system is equipped with PLC to execute commands from the remote control by the operator, smart functions like increasing the opening gap between chassis for better air circulation could be done through PLC programming, such functions make it a semi-automated racking system.
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Closed Type
—

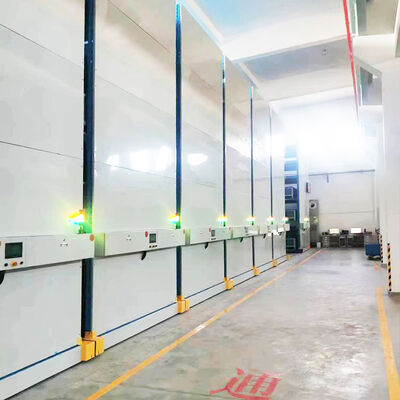

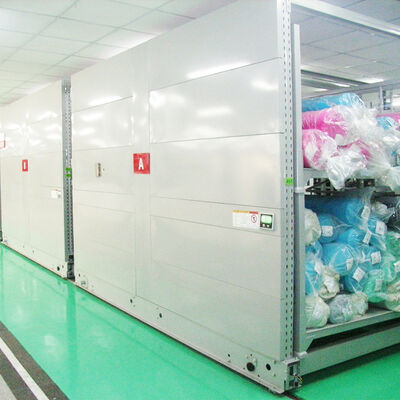

When the closed mobile racks do not need to access the goods, after the shelves are moved together, they are all closed and can be locked. Rubber seals are installed at the interface of each shelf, also known as closed shelves.
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Advantages
—
1 ) Suitable for cold storage, explosion-proof and need higher warehouse utilization occasions;
2 ) No chain transmission, simple and reliable structure, low failure rate;
3 ) By computer control, automatic, semi-automatic, manual function;
4 ) Can realize single column movement; multi-column group movement can be realized. Uniform dispersion can be achieved;
5 ) Single lane movement is available;multi-lanes movement is available;dispersed evenly is achievable;
6 ) Set up a channel, good sealing, expand the warehouse utilization space. Compared with ordinary shelves, it can improve the warehouse utilization rate of about 80%;
7 ) Fewer channels, no need to find channels when accessing goods, high storage efficiency;
8 ) The structure of the electric mobile rack is simple, the operation is simple, not only the operation process is safe and reliable, but also the emergency movement when the power is cut off;
9 ) Electric mobile racks only need to be equipped with forward forklifts or balanced forklifts to be used. Electric mobile shelves have low operation requirements for forklifts;
10 ) With anti earthquake dumping function;
11 ) Protective measures such as emergency stop switches, photoelectric access barriers, manual release systems, proximity sensors as well as photoelectric safety barriers are in place to ensure the safety of workers and goods;
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Safety Protection Function
—
The mobile rack is operated manually or automatically by means of an integrated PLC system, The PLC software may be adapted to the client's specific needs or linked to client's WMS. Safety is guaranteed by a photoelectric beam system. mounted on mobile rack upright. Adding P&D locations may further increase the warehouse efficiency, resulting in a higher return on investment.
Touch Screeen And Operation Panelh
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Technical Specifications
—
| System Type | Unit Load | Speed | Motor Power | Power | Control Mode |
| Rail-guided | Max.32ton Unit | Max10m/min | 0.4-1.5KW |
AC380V(50/60Hz) AC200/220V |
Manual, Automated Centralized system Remote Control |
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Engineering CaseⅠ
—
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
CASE
—
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China
Electric Drive Telescopic Cantilever Rack
Rail-Guided Electric Mobile Rack
Electric Drive Telescopic Cantilever Rack · Warehouse Storage Rack · Made In China
Electric Mobile Pallet Rack · Warehouse Storage Rack · Made In China
Ensure The Quality Of Huayide Racking Products
—
- The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
- The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
- Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
- Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.
