Heavy Duty Storage Cantilever Rack Electric Mobile Cantilever Racking for Pipe Sheets Long Materials
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-CR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Name: | Electric Mobile Cantilever Racking System | Dimension: | Different Sizes Are Available |
|---|---|---|---|
| Finish: | Powder Coated/Galvanised | Rust: | Surface Antirust |
| Surface Treatment: | Powder Coated | Application: | Warehouse Storage Racking System |
| Function: | Cold Warehouse Or Anti-explosion Warehouse | Arm Length: | Customized |
| Highlight: | Electric Mobile Cantilever Rack,Cantilever Racking,Long Materials Storage Rack |
||
Product Description
Cantilever Racking For Long Profiles
——
Cantilevers are widely recognized as being highly effective for storing long and difficult items. Mobile systems are widely
recognized as being highly effective for freeing up space and adding capacity. Put the two together, and you have the ultimate storage solution that maximizes every centimetre of useable space.

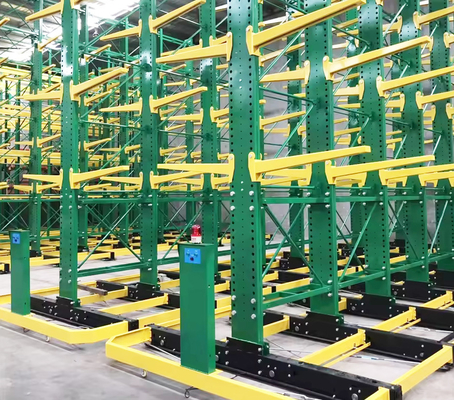

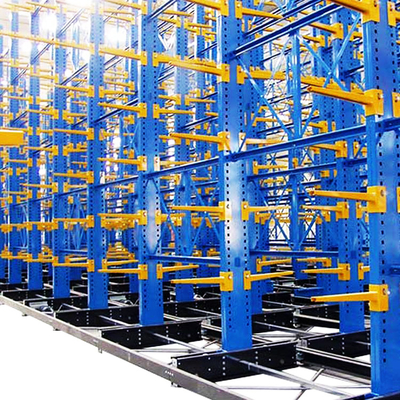

Mobile cantilever racks are standard cantilever racks that are mounted on mobile galvanized trolleys. With no front uprights to obstruct load placing and retrieval, Mobile Cantilevers need only one aisle open at a time using rails that are sunk into the floor. The trolleys are operated via an easy to use control panel or remote control. With numerous user functions and customization, Mobile Cantilevers offer an excellent solution in many warehouse or workshop environments.
Making cantilevers mobile saves space compared to standard cantilever racks, and can increase storage capacity by as much as 200%.Each mobile cantilever rack can be made to measure or easily adjusted, taking into account your unique storage needs and the available space in your warehouse.
Electric Mobile Cantilever Rack · Warehouse Storage Rack · Made In China
No.1 / Aisle saving
No.2 / Safe and accident-free working operation
Equipped with emergency stop buttons, access light barriers, manual release systems, distance sensors, and safety light barriers.
No.3 / Semi-automated or fully-automated solution
Mobile racking can be used with traditional forklifts or in conjunction with AGV systems.
Electric Mobile Cantilever Rack · Warehouse Storage Rack · Made In China
Electric Drive Telescopic Cantilever Rack
Rail-Guided Electric Mobile Rack
——
Electric Mobile Cantilever Rack · Warehouse Storage Rack · Made In China

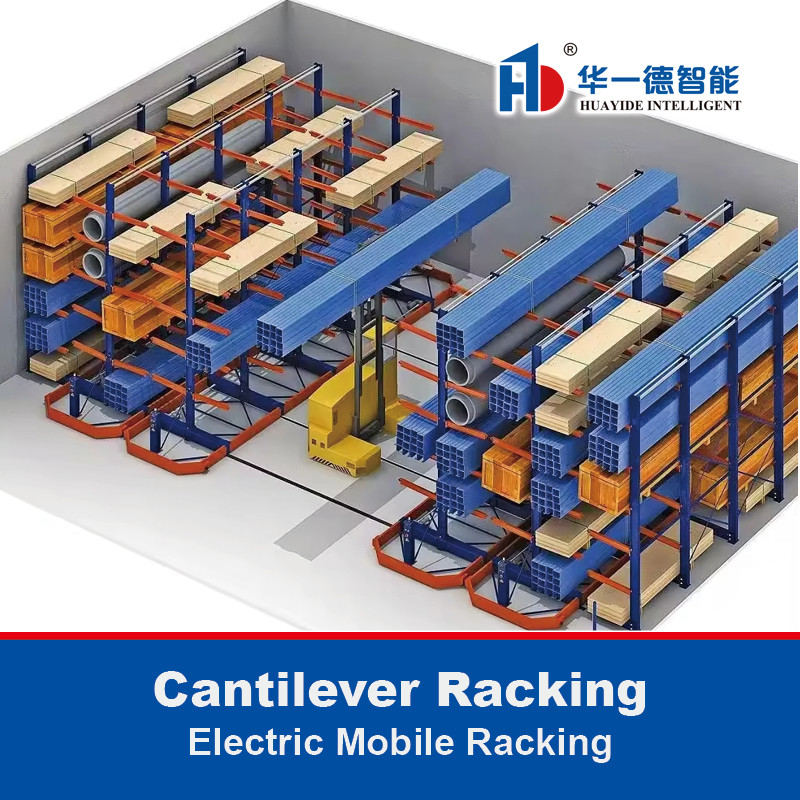

Cantilever Racking
Structural Principles
——
Single Sided
Double Sided
Specifications
| Upright Profile | Upright Height |
Arm Length
|
|
100×50 (light) |
1500mm | 300mm |
| 2000mm | 400mm | |
|
200×60(Medium) |
2500mm | 500mm |
| 3000mm | 600mm | |
| 3500mm | 700mm | |
|
300×90(Heavy) |
4000mm | 800mm |
| 4500mm | 900mm | |
| 5000mm | 1000mm |
Electric Mobile Cantilever Rack · Warehouse Storage Rack · Made In China
Product Advantage
——
- Exceeding 6m height is available, the highest column is able to reach 10.5m.
- Heavy loading, loading of single-arm can up to 1500kg.
- Long and irregular material goods stored.
- Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.
- Except from the regular size, the longest arm can last to 3m.
- The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.
Electric Mobile Cantilever Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 |
The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 |
The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 |
Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 |
Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
