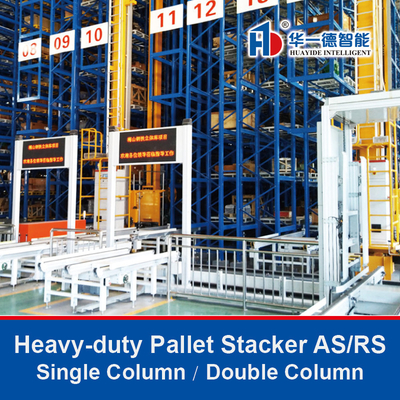

Heavy-duty Pallet Stacker AS/RS, Automatic Storage and Retrieval System
Product Details:
| Place of Origin: | Anhui |
| Brand Name: | HYD |
| Certification: | CE & ISO |
| Model Number: | HYD-ASRS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000kg |
|---|---|
| Price: | USD 1.5 per kg |
| Packaging Details: | palletised and packed by plastic film, or at buyer's option |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 600000 kg per month |
|
Detail Information |
|||
| Material: | Steel / Q235 / Q345 | Color: | Ral Color System |
|---|---|---|---|
| Use: | Industrial, Storage Equipment | Type: | Automatic |
| Surface Treatment: | Powder Coated | Structure: | Muliti Lever |
| Size: | Customer Size | HS Code: | 73089000 |
| Highlight: | Heavy-duty Pallet Stacker AS/RS,Automatic Storage and Retrieval System,Warehouse Storage Rack |
||
Product Description
Heavy-Duty Pallet Stacker ASRS
——

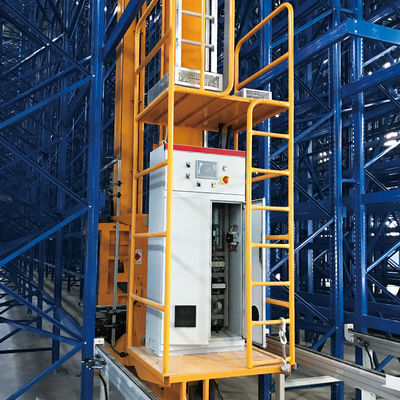

Single Column Heavy-duty Pallet Stacker
—
Stacker can greatly increase the area and space utilization of the three-dimensional warehouse
- Reduce manual intervention
- Effectively improve the efficiency and automation of the storage system.
- Dedicated to high-bay warehouse,The frame structure is a rectangular frame composed of a column, an upper beam and a lower beam
- Suitable for warehouses with a lifting weight of less than 1.5 tons and a lifting height of less than 16 meters.
Single Column Heavy-duty PalletStacker
| Instalations | Parameters | Positioning accuracy | ±5mm | |
| Load | Max 3000KG | Noise | <75db | |
| Height | Max 36m | Walking acceleration | Max 0.5m/S² | |
| Traveling speed | 240m/min | Acceleration of lift and descent | Max 0.5m/S² | |
| Litng speed | 60~90m/min | Pallet fork acceleration | LOADING 0.5m/S² | |
| Pallet fork speed | LOADING 40m/min |
Double Column Heavy-duty Pallet Stacker
—
The main use of the aisle stacker is to run back and forth in the aisles of high-rise racks to deposit goods
- located at the aisle entrance into storage position or to remove goods in storage
- position and transport to the aisle entrance.
- The stacker can greatly improve the area and space utilization of the stereo warehouse, reduce manual
- intervention, and effectively improve the operational efficiency and automation of the storage system.
Double Column Heavy-duty PalletStacker
| Instalations | Parameters | Positioning accuracy | ±5mm | |
| Load | Max 3000KG | Noise | <75db | |
| Height | Max 36m | Walking acceleration | Max 0.5m/S² | |
| Traveling speed | 240m/min | Acceleration of lift and descent | Max 0.5m/S² | |
| Litng speed | 60~90m/min | Pallet fork acceleration | LOADING 0.5m/S² | |
| Pallet fork speed | LOADING 40m/min |
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
CASE

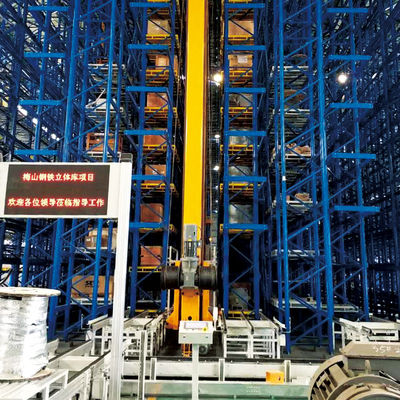

Meishan Iron and Steel
——
Solution Introduction
—
Height:15.2m Number of goods: 11300 Operating time:January 2018
Main equipment: 3 double deep stackers, 1 turning stacker, 1 set of shuttle system, 1 set of conveying system, 1 set of rack system, and 1 set of WMS/WCS/RFS software system
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Stacker Crane AS/RS
——
The stacker operates in the horizontal and vertical directions during the warehouse racking by racking and stacker equipement. According to the instructions of the computer, the goods carried by the pallets are stored in the designated goods by the motor-driven fork. Or remove the goods from the designated pallet location.
■ Product Advantages
Customized according to project production, light, heavy, single and double deep; complete categories
Representative manufacturer of domestic European structural design, stable performance of stacker, ensuring long-term reliable operation
Deepen understanding of customer business needs, focusing on optimization design
■ Characteristics
Shelf height can reach 40 meters or higher, reducing land occupation area
Automatic unmanned operation, reducing labor costs
Seamless data integration with ERP system and real-time intelligent production scheduling
Eliminate the chaos in the warehouse and reduce the difficulty of management
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |

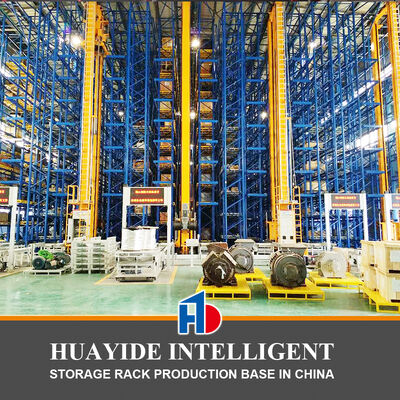

Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
