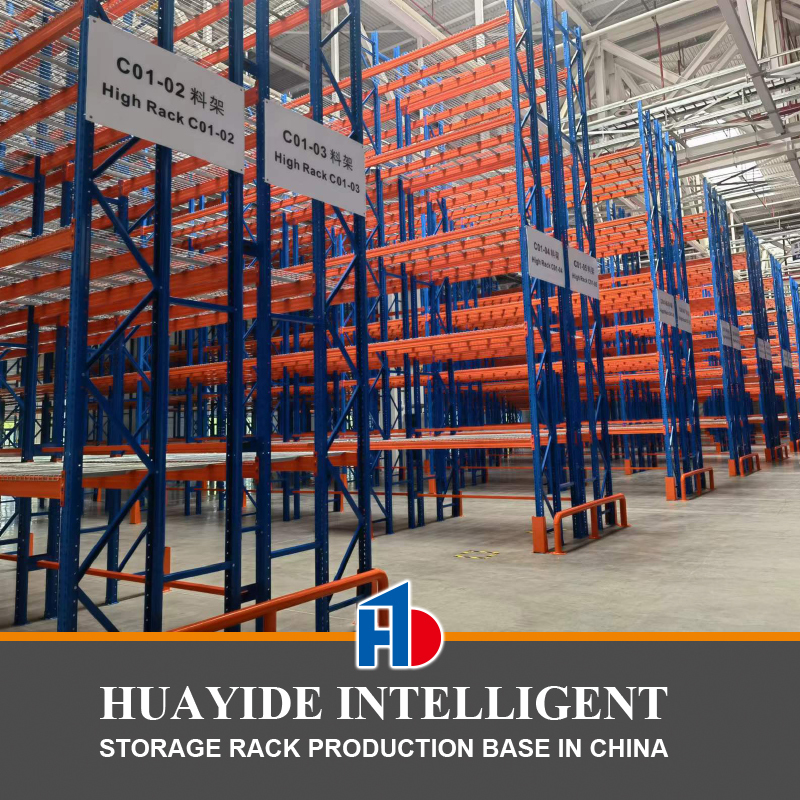

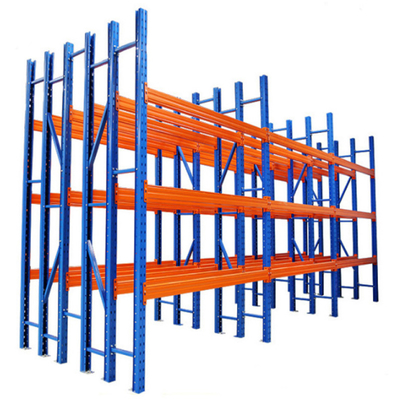

B54: Heavy Duty Double-Deep Pallet Racking for Industrial Warehouse Supermarket to Save Space

Heavy Duty Pallet Rack

——

Double Deep

By placing the second row of selective pallet racking immediately behind the first row, a double-deep pallet racking is created, which eliminates the aisle between the two storage racks. This can add up to 25%. Double deep pallet racking systems require deep distance lift trucks.

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

How does it work

——

Double deep pallet racking systems increase the available storage space, by simply storing the pallets at two depths instead of one as with the selective or adjustable pallet racking (APR) system.

The 2 pallets are accessed from the same aisle, reducing the number of aisles by half compared to the selective pallet racking system.

In short, double deep pallet racking increases warehouse storage density by reducing aisles and increasing storage locations.

As direct access is only available for front unit loads, this double deep system for managing LIFO (Last in, First out) stock is recommended for storing identical or high rotation products, with more than one pallet per reference.

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Features & Advantages

——

Increase in storage capacity compared to selective pallet racking.
Access to the pallets continues to be simple and relatively quick, maintaining 50% immediate accessibility and reasonable rotation of goods.
System with a good use of all the available locations, generally above 80-90%.
Intermediate system between an adjustable or selective racking system and a high-density compact system.
LIFO (Last in, First out) system, where the last pallet deposited on the racking will be the first one to leave.
More efficient system, which eliminates unnecessary aisles and increases the use of available space.
Double deep pallet racking systems adapt to any type of unit load.
As with selective pallet racking systems, the assembly and disassembly process and replacement of components is quick and simple.
Saves time and effort in the handling of unit loads, generating fast stock rotation.
The design of double deep pallet racking enables its reconfiguration or extension according to the storage needs that arise.
High level of safety thanks to the variety of accessories that it can incorporate.

The image shows a comparison of standard selective vs. double-deep selective in the same space.
Both systems are 5-levels high.

You see that the standard selective rack yields 3,000 pallet positions in 15 rows of rack with 8 forklift aisles.
The double-deep selective rack yields 3,910 pallet positions in 20 rows of rack with 6 forklift aisles.
Based on this, it may seem like double deep racking is advantageous over standard, since you'll gain pallet positions. But, this doesn't always mean it's the right fit. Keep in mind that making the switch to double-deep will decrease the number of pick faces, as evident in the number of aisles.
This becomes a factor if, for example, you only have one pallet of each SKU, then it doesn't make sense to convert to double-deep. Why? If you have to retrieve a SKU that's placed behind a pallet of a different SKU, you'll have to move that first pallet in order to retrieve it, and therefore operational efficiency is lost. You don't want to have to move the tortilla chips to get to the potato chips.
But, if you have multiple pallets of the same SKU, would benefit from higher density, and are able to sacrifice some selectivity, then this may be right for you.

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Do you currently have standard selective rack, but want to make a switch to double deep rack?

—
If you currently have standard selective rack but feel that double-deep selective racking would be more beneficial to you, then you'll be happy to know that you are able to convert.
One thing to factor in when considering this conversion is that a standard forklift won't work with a double-deep rack system. It won't be able to reach the second pallet position. You'll need a double-reach or deep reach lift truck to load and unload pallets from this system.
If that's doable, then you'll want to go to a storage system integrator, like QIFEI. We can redo your layout to be double-deep. Moving forward with it will require unloading the products, dismantling the existing rack, reinstalling, and possibly adding on.
The majority of your existing selective pallet rack system will be utilized when converting to a double-deep racking system. This of course is dependent on the condition of your current rack.
We'd appreciate the opportunity to help you further, whether that be more information or a quote. Just get in touch with our representative.

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

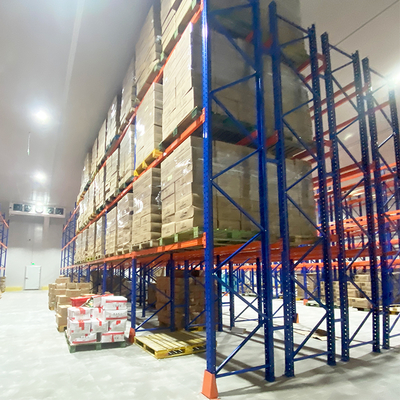

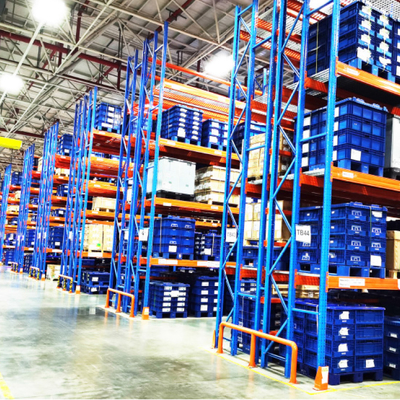

CASE

—

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China

Ensure the quality of Huayide racking products

—
