Electric Mobile Cantilever Rack System Warehouse Storage Racking Heavy Duty Warehouse Cantilever Rack
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-CR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Name: | Electric Mobile Cantilever Racking System | Dimension: | Different Sizes Are Available |
|---|---|---|---|
| Finish: | Powder Coated/Galvanised | Rust: | Surface Antirust |
| Surface Treatment: | Powder Coated | Application: | Warehouse Storage Racking System |
| Function: | Cold Warehouse Or Anti-explosion Warehouse | Arm Length: | Customized |
| High Light: | Electric Mobile Cantilever Rack,Cantilever Racking,Cantilever Rack |
||
Product Description
Cantilever Racking For Long Profiles
——

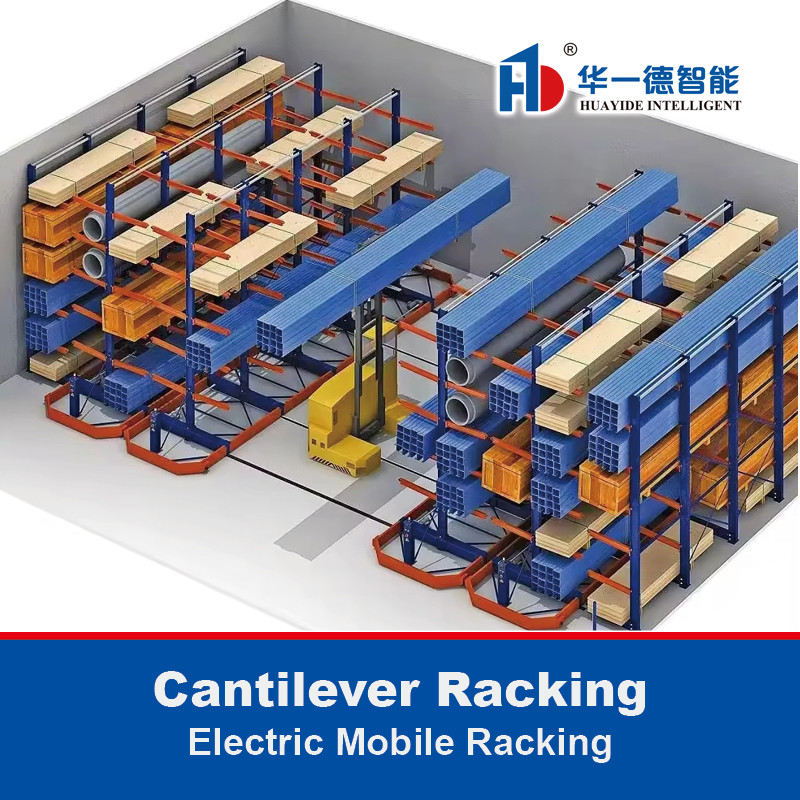

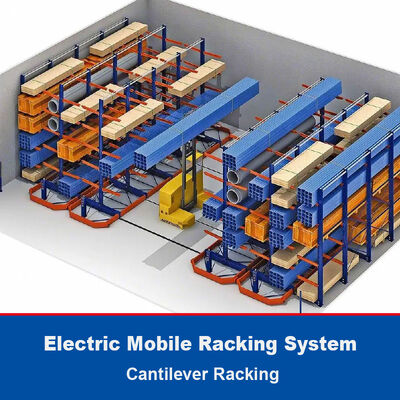

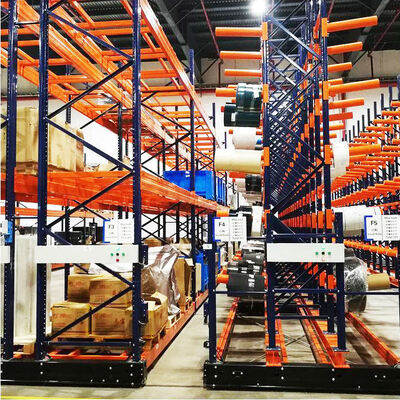

Electric mobile rack takes full advantage of the warehouse space 3 times space using rate as the general shelves. Each unit could be moved separately on the guide rail. It is easy to operate drive a unit just press the button. Every rack has its own transmission equipment link to electromotor, and equipped with safety device. It is mostly applied in refrigeratory or anti-explosion warehouse and provides a 100% access to load and retrieve.
No.1 / Aisle saving
No.2 / Safe and accident-free working operation
Equipped with emergency stop buttons, access light barriers, manual release systems, distance sensors, and safety light barriers.
No.3 / Semi-automated or fully-automated solution
Mobile racking can be used with traditional forklifts or in conjunction with AGV systems.
Electric Mobile Cantilever Rack · Warehouse Storage Rack · Made In China
Cantilever Racking
Structural Principles
——
Single Sided
Double Sided
Specifications
| Upright Profile | Upright Height |
Arm Length
|
|
100×50 (light) |
1500mm | 300mm |
| 2000mm | 400mm | |
|
200×60(Medium) |
2500mm | 500mm |
| 3000mm | 600mm | |
| 3500mm | 700mm | |
|
300×90(Heavy) |
4000mm | 800mm |
| 4500mm | 900mm | |
| 5000mm | 1000mm |
Electric Mobile Cantilever Rack · Warehouse Storage Rack · Made In China
Product Advantage
——
- Exceeding 6m height is available, the highest column is able to reach 10.5m.
- Heavy loading, loading of single-arm can up to 1500kg.
- Long and irregular material goods stored.
- Our arm has a 2° uptilt which can make sure the arm won’t tilt down while goods placing.
- Except from the regular size, the longest arm can last to 3m.
- The connection of our cantilever column and arm is ingenious, it can mitigate the impact of forklift operation.
Electric Mobile Cantilever Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 |
The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 |
The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 |
Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 |
Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
