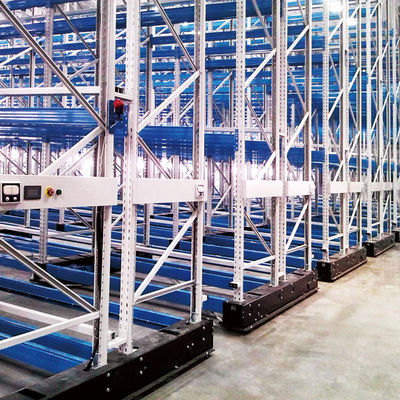

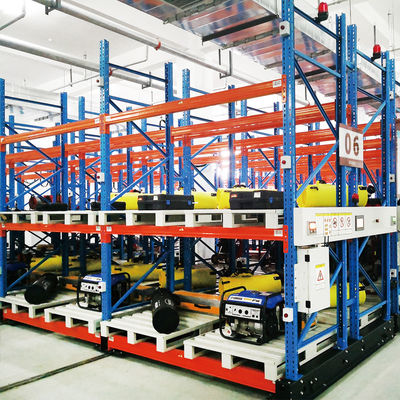

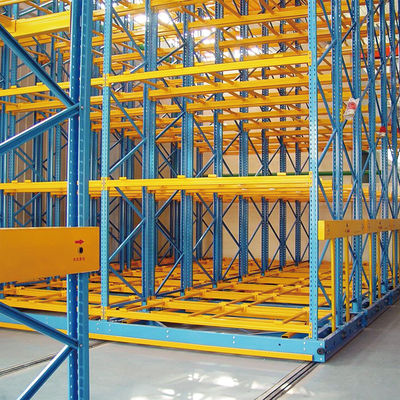

Heavy Duty Electric Mobile Pallet Racking System Heavy Duty Pallet Rack Electric Mobile Rack
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | ISO,CE |
| Model Number: | HYD-PR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000kgs |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic film protection |
| Delivery Time: | around 15 working days |
| Supply Ability: | 600000KGS per month |
|
Detail Information |
|||
| Name: | Customized Adjustable Steel Heavy Duty Warehouse Storage Pallet Rack Syseardrop Pallet Rack | Loading Capacity: | 500-4000kg/Layer |
|---|---|---|---|
| Feature: | Adjustable | Height: | 4000-11500mm |
| Width: | 700-1400mm | OEM & ODM: | Provided |
| Color: | Customized | Surface Treatment: | Powder Coated |
| Highlight: | heavy duty Pallet Rack,Electric Mobile Racking,heavy duty Pallet Racking |
||
Product Description
Heavy Duty Pallet Rack
——
Electric Mobile Rack
Putting conventional pallet racking on a motorised mobile base will give you what is known as a mobile pallet racking system ensuring any wasted 'dead' space is fully utilised enabling you a greater storage capacity.
The mobile pallet racking is composed of conventional pallet racking installed on mobile bases, allowing opening and closing of the aisles. Where compact storage is need while keeping a high degree of accessibility to the stored products, mobile racking may be the best solution, especially where storage space is expensive, for example in cold stores. Mobile racking saves considerable space as the number of aisles is reduced to a minimum.Conventional static racking requires fixed aisles between racks, causing quite some redundant space. A mobile racking system is very efficient and only needs one aisle, creating a much higher warehouse industrial storage capacity.
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
Features & Advantages
——
The mobile racking with only one operational aisle within the system, racks can be easily squeezed together to maximise the cube of the warehouse.
1. Maximise existing warehouse space
2.Single operationg aisle
3. Use up to 40% less space than conventional adjustable pallet racking
4. Individual pallet access
5. Increase your storage capacity by as much as 80%
6. Restrict access and increase security
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
Pallet Storage Solutions
—
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
Working Principle
——
Two rows of back-to-back racks are installed on the mobile base in a group, in a multi-group arrangement, each base is equipped with multiple rollers and drive motors. Through the operation of the electronic control button control motor to drive the entire mobile base along the floor rail together to move, after moving to the operation aisle required by the forklift, you can access the goods, the mobile rack system is mainly composed of racks, mobile bases, motors, floor rails and electronic control electric parts.
Heavy-duty capacity makes it a natural choice for a number of storage challenges, from equipment and supplies to freezer and cooler storage. The ability to anchor this mobile pallet racking system to existing concrete makes it a cost-effective solution for increasing capacity in any space, without the need for renovation or expansion.
Mobile Base / Drive Motor
Mobile Carriagee / Electrical Control Panel
Sensore / Floor Rails
Two ways to lay the floor rails:
1. Laying of floor rails on existing ground (it is necessary to lay the rails in the ground pits and then carry out secondary cement pouring, and use after the cement ground is hardened)
2. Laying the floor rail on the ground floor of the new warehouse (directly when the warehouse floor is built, the floor rail is pre-buried, and the ground and floor rails are leveled flat)
The first layer of concrete is poured to a depth of 100MM and then the floor rail is laid, and then the second layer is poured to the horizontal plane.
Safety Protection Function
The mobile rack is operated manually or automatically by means of an integrated PLC system, The PLC software may be adapted to the client's specific needs or linked to client's WMS. Safety is guaranteed by a photoelectric beam system. mounted on mobile rack upright. Adding P&D locations may further increase the warehouse efficiency, resulting in a higher return on investment.
Touch Screeen And Operation Panelh
Different Choices Of Panel For Holding Goods
——
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
CLASSIFICATION OF MOBILE RACK
——
Electrical mobile racks can also be made into trackless, trackless mobile racks do not have to damage the ground to make floor rails, and the high-strength polyester wheels of the trolley can roll directly on the ground. Electrical trackless mobile racks are installed with ground guides on the side of the wall, generally provided for angle steel guides on the ground, while the entire row racks do not need to be equipped with floor rails.Depending on the use environment, mobile racks can also be made into refrigerated and explosion-proof mobile racks.
Floor Guide
On one side of the mobile shelving, there is one set of guided angle rail to keep the mobile shelving moving in line. Under each mobile base there is no more floor rail track required for the movement of the shelving rack.
Guide Rail Mode
Single operation , in the back of the installationguide rail , does not obstruct the traffic.
High performance polyurethane wheel
The noise is smalland no damage to the ground.
The construction period is short , no concrete constructionand solidification time.
Rail-Free mobile racks / Rail-Guided mobile racks
Open mobile racks / Closed mobile racks
refrigerated mobile racks / explosion-proof mobile racks
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
Heavy Duty Pallet Rack · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
