Smart Electronic Mobile Shelving Intelligent Archive Storage Shelves Steel Intelligent Compact Libraries Shelving Systems for Storage
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | HYD-CFR |
| Document: | Electric Mobile Rack .pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T, D/A, D/A, Western Union, MoneyGram |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Features: | Ctrostatic Powder Coating | Product Name: | Mobile Compactor Storage System |
|---|---|---|---|
| Application: | Office, Library, Government, Archive, School, Bank, Medical, | Material Materials: | High Quality Cold Rolled Steel Sheet Q235 |
| Surface Treatment: | Powder Coating | Lock: | 3 Point Lock：padlock,code Lock,key Lock |
| Style: | Double-Column Double-Sided | Certificate: | CE/ISO9001 |
| Highlight: | Smart Mobile Shelving,Intelligent Archive Storage Shelves,Intelligent Compact Shelving |
||
Product Description
Smart Electronic Mobile Shelving
—
Mobile Shelving Systems, by modifying the double-column double-sided fixed shelves, install axle wheels on its base, so that it can move linearly along the rail laid on the ground. And multiple shelves can be moved closer or apart, and assembled according to specific needs. It is a movable intensive file device. As the most modern document management tool, it has been widely used in libraries, museums, banks, hospitals, schools, government departments, military and other fields. The biggest advantage of the mobile dense cabinet is that it can save space and has the functions of safety and confidentiality, dust prevention, insect prevention, and moisture prevention.Usually divided into two kinds of single and double sided frame. Product specifications can be produced according to customer's requirements.
The smart compact mobile shelving is a new-generation smart product. Based on the original manual smart compact mobile shelving, this intelligent compact mobile shelving integrates internationally advanced technologies and design philosophies, prioritizing safety, efficiency, stability, reliability, and scalability to maximize user benefits.
This smart compact mobile shelving not only stores books, archival materials, and documents, but also enables computerized management of stored items through integrated digital controls. The intelligent compact mobile shelving realizes automated regulation of archival temperature, humidity, and ventilation, precise control over shelf opening and closing operations, and real-time automated retrieval of stored materials. This smart high density mobile shelving supports dynamic tracking and visualization of archival locations, with the ability to automatically activate target shelf units via integrated sensors. Computerized management streamlines archival organization, meeting the requirements for user-friendly operation, process automation, digital and networked infrastructure, and modernized archival governance.
Mobile Compactor Storage System · Warehouse Storage Rack · Made In China
Product Structure
—
Smart shelves (Electric shelves) products using high-quality cold-rolled steel modeling. Base the overall welded together to fight the rack body double column insertion structure between the section and the section with the peg board separated by column in a hanging hole. Hanging plate buckle hanging hole hung on pillars, shelf placed on the peg board under along the bending and anchored in the hole of the peg board buckle. Each layer is a whole shelf. The space between the shelves can be adjusted up and down. The separate rods spaced between each section of double-sided. Side panels use uneven rounded shield new technology.
The contact surface between the frame body equipped with a buffer, a magnetic sealing strip top dust plate, the bottom mouse proof apparatus. Each column of the frame body has a safety limit brakes and anti-tip device. Side frame fitted with locks for the whole locking. Transmission mechanism through a finishing process, the use of precision bearings, flexible and smooth transmission. Laminates are free to adjust spacing according to need.
The intelligent computer Shelves set of manual , electric and computer control in one photoelectric mechatronics Shelves. It has advanced, versatile, easy to operate composed by three parts of the computer control systems, electronic control systems and mechanical drive control system, the leading domestic technology. Each of the three parts of the system independent, and protect each other. And humanized design concept, the intelligent control system and network management mode based to achieve macroeconomic automation control, auto-body protection, environmental regulation, the orderly management of a disorderly storage, and guide data extraction and network the sharing of information resources.
Mobile Compactor Storage System · Warehouse Storage Rack · Made In China
Security Protection System
—
(1) Light protection: there is a professional lighting between the two columns. When the body is open, the lights automatically light, both the role of lighting, but also a protective effect. When the light is turned on, the frame automatically starts the protection mechanism, and any other column of shelves can not be opened to prevent the staff from being caught between the columns. When the frame is closed, the lights are automatically turned off.
(2) Infrared sensor protection: infrared sensor systems are installed in the intelligent mobile shelving. When the frame is
opened, the infrared sensor starts automatically. When the staff work in the frame, the shelves, whether the computer or the motor button can not start the frame, so as to prevent other staff who do not know which people are free to open and close the body and clip the staff, play a protective role.
(3) Electromagnetic protection: also installed with electromagnetic induction system, such as infrared induction. When someone between the columns, can not open and close other column, to protect the safety of staff.
Mobile Compactor Storage System · Warehouse Storage Rack · Made In China
Three transmission methods
—
The intelligent mobile shelving is a kind of intelligent network compact shelving integrated manual operation, power operation and computer control, to achieve long-distance operation, macro automation frame control. Three transmission methods are independent, do not affect each other. The double-sided operation panel makes the operation of the product arbitrary. You can do the electric switch every column body. A motor start button is mounted on the panels of each column. When the manager needs to open any column, as long as press the button to open, the body can be automatically opened. If the power outage, you can also shake the hand wheel, manually open the shelves. The most convenient is the smart shelving installed my company independent research and development of intelligent software. The software program can be installed in the file management computer. File storage in the computer to create a file management database. In the future management process, as long as the computer management interface to enter the need to query the file, the file where the shelf frame can automatically open.
Mobile Compactor Storage System · Warehouse Storage Rack · Made In China
Customized Size
—
Below size is our general sizeYou can send us the size of your room,we can customize size for you according to your needs.
|
One column |
Column Length |
Row Height |
Column Width |
Class Interval |
Ground Track |
|
One set |
1050mm |
2400mm |
580mm |
900mm |
2 |
|
Two groups |
1950mm |
2400mm |
580mm |
900mm |
2 |
|
Three groups |
2850mm |
2400mm |
580mm |
900mm |
2 |
|
Four groups |
3750mm |
2400mm |
580mm |
900mm |
3 |
|
Five groups |
4650mm |
2400mm |
580mm |
900mm |
3 |
|
Six groups |
5550mm |
2400mm |
580mm |
900mm |
4 |
|
Seven groups |
6450mm |
2400mm |
580mm |
900mm |
4 |
|
Eight groups |
7350mm |
2400mm |
580mm |
900mm |
5 |
*Column length=(number of groups X 900)+150 unit:(mm)
Mobile Compactor Storage System · Warehouse Storage Rack · Made In China
Product Advantage
—
- The industry's first use of a mature low noise, no spark, maintenance-free 24V brushless DC motor drive, the regular
- replacement of brush the previous DC servo motor troubles completely resolved in the case of ensuring the safety of persons and equipment.
- Full of high-quality voice operation promoted.
- Completely collision-free operation: smooth start, run fast, gentle closed.
- The operation is simple, practical, intuitive software operating graphical image.
- Smart lighting: Shelves open when the lights turn on, shut down automatically extinguished. Alone computre-controlled lighting (which is convenient for some special applications) Open Shelves Close state.
- Shelves unmanned automatic shutdown and automatic ventilation. And can operate offline.

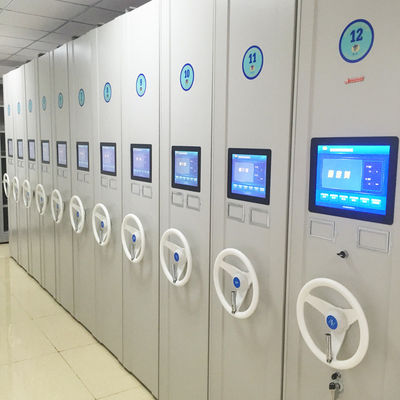

- Mobile columns 5.7 inch LCD with touch nice.
- Solid moving column 10.5 inch color LCD with touch display (optional).
- Query any column in any area to store the file can be in any of the columns on the LCD screen and open operation.
- The anti-surge and anti-static design design makes it even severe instability in the voltage the rural or dry winter, but also to ensure the reliable operation of the system.
Mobile Compactor Storage System · Warehouse Storage Rack · Made In China
Customizable type
—
Electric Mobile Shelves Racking · Warehouse Storage Rack · Made In China
CASE
—
Electric Mobile Shelves Racking · Warehouse Storage Rack · Made In China
Electric Mobile Shelves Racking · Warehouse Storage Rack · Made In China
Electric Mobile Shelves Racking · Warehouse Storage Rack · Made In China
Electric Mobile Shelves Racking · Warehouse Storage Rack · Made In China
Electric Mobile Shelves Racking · Warehouse Storage Rack · Made In China
Electric Mobile Shelves Racking · Warehouse Storage Rack · Made In China
Mobile Compactor · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
