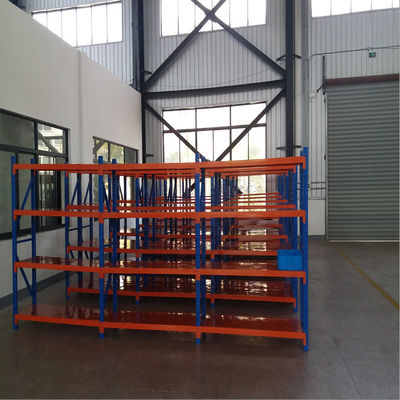

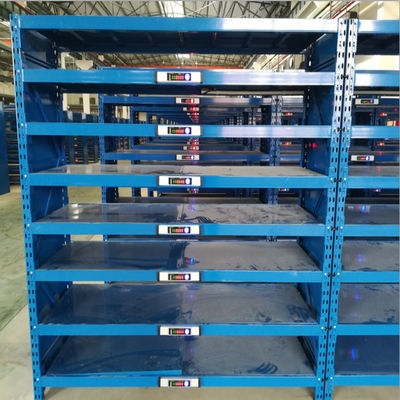

1200×470 Medium Duty Racking System 6 Layers Long Span Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Hua Yide |
| Certification: | CE & ISO |
| Model Number: | Medium Duty Racking |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 30-80 per set |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Material: | Steel | Weight Capacity: | Max:800kg |
|---|---|---|---|
| Name: | Storage Shelves Garage 4 Layer Long Span Rack System Shelving Medium Duty Longspan Shelving | Capacity: | Medium Duty |
| Finish: | Powerder Coated | Size: | Customized Size |
| Application: | FOOD, MILK, ELECTRIC, ETC | Design: | 3D Drawing |
| Market: | Global | Type: | Medium Duty Racking |
| Highlight: | 1200×470 medium duty racking,medium duty racking system 6 Layers,6 Layers Long span Racking |
||
Product Description

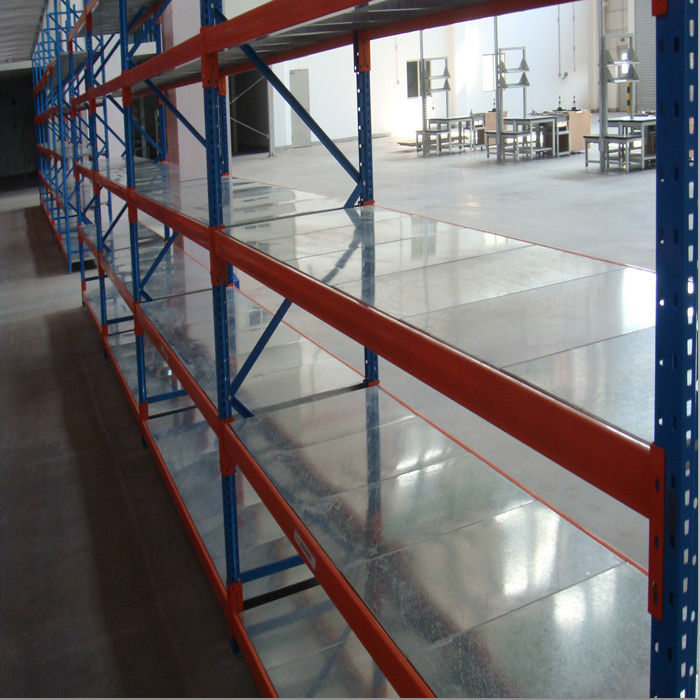

Warehouse Small Carton Box Storage Medium Duty Longspan Racking And Shelving
Medium duty steel shelving is highly-suited for single box and single-SKU picking and easily adapts to your warehouse, office, retail or e-tail business.It is consisted of frames, beams and panel. The medium duty metal shelving can be decked with particle board, wire decking, Zinc steel panel, rolling metal decking to make them ideal for many different environments. Long-span shelving are especially suitable for the hand loaded storage of bulky items. It's from 300kg to 1000kg per level.
|
Product Name
|
Longspan shelving / Medium-duty rack
|
|||
|
Basic Components
|
Column, beam, decking and pins etc.
|
|||
|
Size
|
Length: 1200/1600/1800/2000 / 2500 / 3000 mm Width: 400 / 500 / 600 /700 / 800 / 900 / 1000mm
Height: 1500-6500mm |
|||
|
Material
|
Steel, cold-rolled steel
|
|||
|
Layers
|
3-6 layers or as your request
|
|||
|
Accessories (Optional)
|
Steel decking, Wire mesh decking or MDF board
|
|||
|
Color
|
RAL series (as your request)
|
|||
|
Certificates
|
ISO9001, CE
|
|||
|
Surface Treatment
|
Powder coating
|
|||
|
Usage
|
Warehouse storage, parts storage, back room storage, archive storage, basement, garage storage and office building etc.
|
|||
|
Delivery Time
|
20 days(20GP); 25 days(40GP)
|
|||
|
Remark
|
Customized or OEM support
|
|||
55 Profile Longspan shelving Specificatons
Easy to dismantle and assemble without any nuts & bolts and tools
Bolt Free medium rack is structured to enable 250~400kg load per layer . Height could be easily adjusted by 50mm in pitch .
| Size :L×W(mm) | Height(mm) | Loading KG/layer shelf thickness:40mm |
| 1200×470 | 1500~2400 | 300 |
| 1200×600 | 1500~2400 | 350 |
| 1200×720 | 1500~2400 | 350 |
| 1200×920 | 1500~2400 | 450 |
| 1500×600 | 1500~2400 | 300 |
| 1500×1180 | 1500~2400 | 450 |
| 1800×470 | 1500~2400 | 250 |
| 1800×720 | 1500~2400 | 250 |
| 1800×1180 | 1500~2400 | 400 |
| surface treatment | powder coated | |
| upright profile | 55 profile , 50mm pitch | |
60 Profile Longspan shelving Specificatons
| Frame Width(mm) | Frame Height(mm) | Beam Length(mm) |
| 400 | 1800 | 800 |
| 450 | 2000 | 1000 |
| 500 | 2500 | 1200 |
| 600 | 3000 | 1500 |
| 700 | 3500 | 1800 |
| 800 | 4000 | 2000 |
| 900 | 4500 | 2300 |
| 1000 | 5000 | 2500 |
| Surface Treatment: Powder Coating | ||
Feature
1. Can be customized to well fit your storage area.
2. Bolted frame and plug-in beam .
3. Powder coated anti-corrossion surface last for 5 years.
4. Elegant and compact out-shape.
5. Loading weight: 100kg to 600kg per layer .
Packing & Delivery:
FAQ:
1. Q: What's your trading terms?
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading.
2) Lead time: normally in 20-25 days after deposit received.
3) Sample policy: samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai / Nanjing Port
2. Q: What is your service?
1) Your inquiry related to our products or price will be replied in 12 hours.
2) Well-trained and experienced staffs to answer all your inquiries in fluent English.
3) OEM & ODM, any your customized racking we can help you to design product.
4) We have very experienced professional engineers to make best solutions.
3. Q: Do you have any reference for assembling the products ?
Yes, we offer assembly manual and we can provide you instructor engineer to your warehouse if needed.
4. Q: What's the international trading process?
Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance →Shipping.
5. Q: What's your advantage?
1) rush order we can fast delivery.
2) factory direct sale competitive price.
3) experienced professional engineers.
6. Q: How does charge tooling fee (cost of opening new mold)?
For the production of necessary tooling requirement, charges the cost before the first order for opening new mold, and the cost will be partially or fully refunded after certain quantity of orders.
7. Q: What is your online contact ?
Mobile/wechat/whatsapp : 008615856992259
