Stacker Crane ASRS Shuttle Racking ASRS
Product Details:
| Place of Origin: | China |
| Brand Name: | HuaYide |
| Certification: | CE&ISO |
| Model Number: | Stacker Crane ASRS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Name: | Stacker Crane ASRS | Material: | Steel, Cold-rolled Steel |
|---|---|---|---|
| Style: | Pallet Racking | Height: | 5-40m |
| Surface Treatment: | Electrostatic Powder Coating | Weight: | 200-6000kg |
| Color: | Ral Color System | Pallet Size: | 1*1.2 Or Customzied |
| Usage: | Automated Storage | Certification: | CE & ISO9001 |
| Highlight: | Shuttle Racking ASRS,Automatic Storage And Retrieval System,Stacker Crane ASRS |
||
Product Description

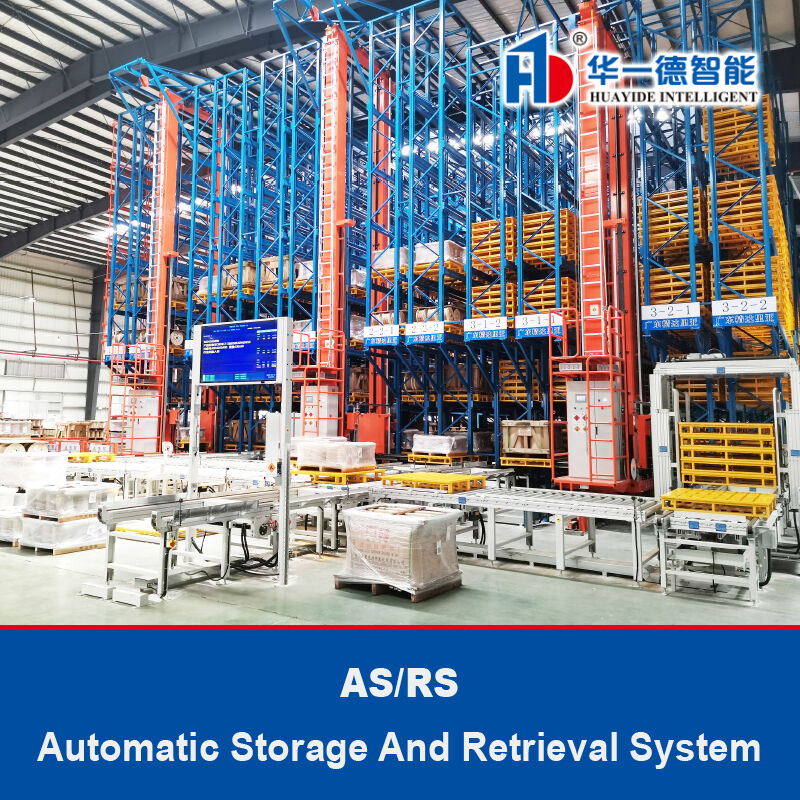

Stacker Crane ASRS
——
Floor Supported Storage / Retrieval Machine
Automatic Storage And Retrieval System
Operating temperature: -30°C to +45°C
The automated stereoscopic warehouse system (AS/RS) is an important part of enterprise logistics. As a logistics system, it adopts advanced technology to improve operating efficiency, reasonably control inventory, reduce logistics costs, and continuously improve the management level of enterprises, thereby improving the economic benefits of enterprises. With the rapid development of modern warehousing and logistics industry, the automated stereoscopic warehouse system (AS/RS) has been further developed and has become an important link connecting production and circulation consumption.
At present, the system adopts an integrated logistics computer management control system (WMS), and applies advanced technologies such as laser positioning technology, infrared communication, fieldbus control technology, barcode scanning, RF system, etc. The WMS system can exchange information with the ERP system, has complete functions and reliable performance, and truly plays the role of a bridge connecting production and consumption. The stereoscopic warehouse system will play an increasingly important role and will be more widely used in warehouses and distribution centers in all walks of life.
The specially treated anti low temperature design makes this system also suitable for cold storage projects.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System · Made In China
AS/RS Advantage
——
AS / RS is a revolutionary achievement of logistics technology. It is generally composed of high-rise shelves, roadway stacker,conveyor, control system and computer management system (WMS).It can complete the automatic access operation of unit goods under the control of computer system.Automated Storage and Retrieval System are advanced storage solutions that integrate mechanical and electronic technologies tooptimize warehouse operations.These systems are designed to maximize space utilization, enhance efficiency, and improve the overall management of inventory.
• Space Efficiency: By utilizing vertical space and reducing the number of access aisles, these systems can significantly increase the storage capacity within the same footprint.
• Increased Productivity: The automation of storage and retrieval operations leads to faster throughput and improved productivity.
• Reduced Labor Costs: With less reliance on manual labor for handling goods, companies can save on labor expenses.
• Enhanced Accuracy and Traceability: Automated systems reduce the risk of errors in inventory management and provide better
traceability of goods.
• Customization and Scalability: Automated shelving systems can be customized to fit specific storage needs and can be scaled up
or down as business requirements change.
• Energy Efficiency: Many automated shelving systems are designed with energy-saving features, which can lead to lower operational costs.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System · Made In China
AS/RS Structure
——
1. Upright Frame 2.Adjustable Foot Stand 3.Bracket Arm 4.Pallet Rail 5.Lateral Braceing 6. Back Bracking
7.Stacker Crane 8. Control Panel 9. Top Rail 10. Bottom Rail 11. Input / Output Sation 12.Stacker Crane Controller 13.Safety Fence
Floor Supported SRM ASRS · Automatic Storage And Retrieval System · Made In China
AS/RS Main Components
——
ASRS racking offers compact storage in high bay warehouses where goods need to be accessed quickly. Pallets are retrieved efficiently for fast order fulfilment through software integration. Orders can be consolidated for shipment, streamlining warehouse operations.ASRS rack structures are engineered to optimise space in high-bay warehouses. The system is manufactured with precision and is fully bolted to thefloor slab. This offers completely straight and robust racking catering to weight of goods, crane forces as well as local criteria such as environmental loads, soil type sand seismic zone requirements.We also offer full product engineering certification and detailed trace ability, which under pins the product's structural integrity and thesafety of any installation.
Structural feature: ASRS System are usually equipped with pallet racking and drive-in racking, both of which are composite structure. Steel panels and wooden panels are available for loading with good capacity. Conveyors will do the loading and unloading job under the instruction from the central computer. ASRS System is mainly used in the food, tobacco, electronic,mechanical and armament industry.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System · Made In China
Stacker Crane is the storage & retrieval device in AS/RS. replacing manual warehousing tasks.Normally has single upright and double uprights structure. It complete the operation demand by walking, lifting and fork driving mechanism. We adopt advanced servo control system and absolute addressing system for full closed loop control. By cooperating with barcode and laser rangefinder, our stacker crane achieve running high-precisely. The maximum loading capcity up to 8 tons. Maximum speed up to 400m/min.
The storage and retrieval machine(SRM) operate as a crane that moves horizontally within a single aisle.Stacker cranes are machines designed to store and retrieve pallets automatically. They move in length, height, and depth to load and unload goods from racking structures in a highly agile, precise manner.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System · Made In China
Conveying system is usually equipped in the front or back of warehouse for conveying goods here and there,bridging the procedures done by forklifts and stackers by using rolling conveyor or chain conveyor and combining with lifts,rotating devices and other equipments.
Our systems ensure efficient, continuous, and accurate movement of goods within the AS/RS, enabling seamless operations across diverse warehousing configurations.
Seamless Integration: Works in harmony with S/RMs and other devices commonly used in automated systems such as stretch-wrappers, label applicators, stackers, dispensers, staging systems, etc.
Precision Control: Provides real-time monitoring and precise control for reliable product movement throughout the warehouse.
High Throughput: Engineered to handle large volumes, meeting the demands of rigorous order fulfillment schedules.
Durability and Reliability: Built with robust components for continuous operation and minimal maintenance.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System · Made In China
● Controlling system
Structural feature: Communicating with WMS and ECS through OPC agreement, PROFIBUS bus network, set up by Siemens S7-300controller can operate all conveyors offline, doing conveying of goods automatically.
Floor Supported SRM ASRS · Automatic Storage And Retrieval System · Made In China
● WMS System WMS
|
Hardwares of WMS System: Star network structure, network sever, RF server, computers for management and monitor, RF base station and RF terminal for in/out warehouse of goods |
|
|
Softwares of WMS System |
Operating system: WINDOW 2000X SEVER |
|
Data-base: MS SQL SEVER 2000X |
|
|
Warehouse management software: WMS |
|
|
Equipment controlling software: WCS |
|
|
Bar code management software: RFS |
|
Floor Supported SRM ASRS · Automatic Storage And Retrieval System · Made In China
ASRS Type
——
Floor Supported SRM ASRS · Automatic Storage And Retrieval System · Made In China
Product Packaging And Transportation
——
Floor Supported SRM ASRS · Automatic Storage And Retrieval System · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
