Stacker Crane Floor Supported SRM Storage And Retrieval Machine ASRS Automatic Storage And Retrieval System
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | ISO,CE |
| Model Number: | Floor Supported SRM |
| Document: | Stacker Crane ASRS.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000kgs |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped, |
| Delivery Time: | around 15 working days |
| Supply Ability: | 600000KGS per month |
|
Detail Information |
|||
| Material: | Q235 Steel | The Maximum Loading: | 8 Tons |
|---|---|---|---|
| Achieves Horizontal Speeds: | 900 Ft./min | Vertical Speeds: | 400 Ft./min |
| Height: | 140 Feet | OEM & ODM: | Provided |
| Surface Treatment: | Powder Coated | Layers: | Customize |
| Highlight: | Storage And Retrieval Machine,Automatic Storage And Retrieval System,Stacker Crane |
||
Product Description

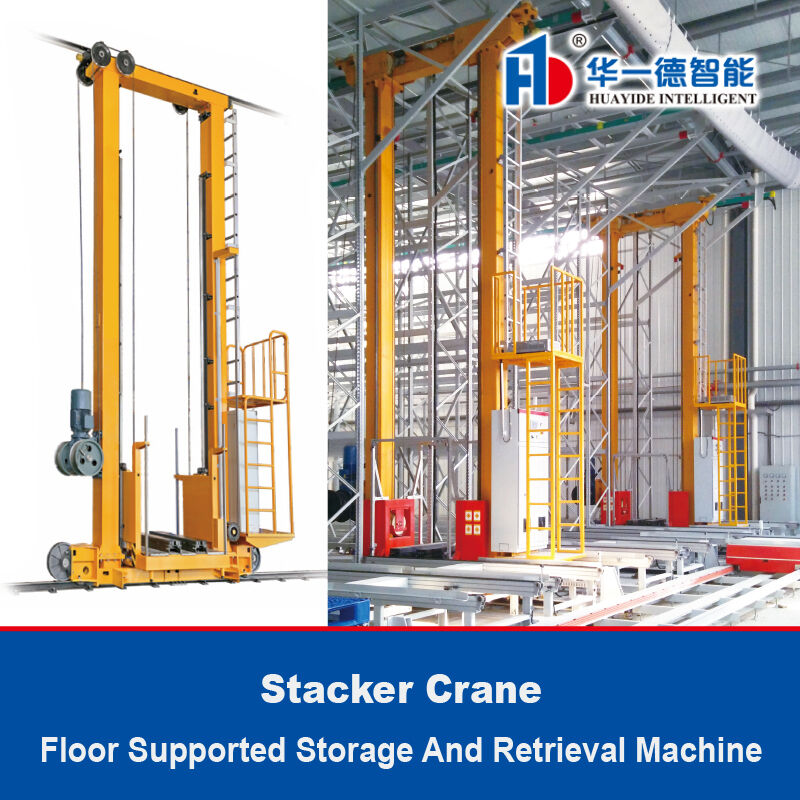

SRM (Stacker Crane)
——
Floor Supported Storage And Retrieval Machine
Operating temperature: -30°C to +45°C
Stacker Crane is the storage & retrieval device in AS/RS. replacing manual warehousing tasks.Normally has single upright and double uprights structure. It complete the operation demand by walking, lifting and fork driving mechanism. We adopt advanced servo control system and absolute addressing system for full closed loop control. By cooperating with barcode and laser rangefinder, our stacker crane achieve running high-precisely. The maximum loading capcity up to 8 tons. Maximum speed up to 400m/min.
The storage and retrieval machine(SRM) operate as a crane that moves horizontally within a single aisle.Stacker cranes are machines designed to store and retrieve pallets automatically. They move in length, height, and depth to load and unload goods from racking structures in a highly agile, precise manner.
The specially treated anti low temperature design makes this system also suitable for cold storage projects.
Stacker Crane · SRM· Floor Supported Storage / Retrieval Machine · Made In China
SRM Advantage
——
HYD stacker cranes are equipped with state-of-the-art technology, significantly increasing warehouse productivity and maximising space utilisation to boost storage capacity. Moreover, they help reduce errors and risks associated with manual operations.Our S/RM enables efficient horizontal and vertical positioning movement within the AS/RS, providing versatility across many applications regardless of depth, height, or width constraints.
Double Mast Design: Provides added stability for heavier loads and higher speeds, supporting heights up to 140 feet.
High Speed: Achieves horizontal speeds of up to 900 ft./min and vertical speeds of 400 ft./min.
Load Capacity: Capable of handling loads up to 2 x 3,500 lbs for dual-load machines, and up to 5,000 lbs for single-load machines.
● Structural Feature:
Double upright structure, steady and reliable, vector frequency conversion drive and encoder position control,mechanical and electronic safety devices to ensure safe using of the system; All the way tracing technology by information transferring;
Electric components are imported from abroad; Touching screen interface for easy operation; Making manual,semiautomatic, automatic and linkage control come true; Used in many situations by combining with other logistics equipment.
Stacker Crane · SRM· Floor Supported Storage / Retrieval Machine · Made In China
● Key Features
At HYD, we are a premier designer and manufacturer of material handling equipment and systems. One of our core product offerings is stacker cranes, which are available in standard and custom variations. Key features include:
♦ Stacker Crane Controls up to 6000kgs. load capacity
♦ Compatibility with multiple lifting attachments, carriages, and forks
♦ User-friendly design with four motion motorized movement and pushbutton operator controls
♦ Solid-state controls with variable speeds capabilities for smooth and precise positioning
♦ 4-Bar insulated conductor system for trouble-free and continuous power supply
♦ Trolley wheels that remain within bridge beams to prevent potential derailment
♦ On-board operator cage, two hoist brakes, hoist overweight limit, hoist free fall catching system
♦ Narrower aisle space requirements than conventional forklifts
♦ Maximum stability at high positions, minimum sway at any elevation
Stacker Crane · SRM· Floor Supported Storage / Retrieval Machine · Made In China
SRM Stacker Crane Type
—
»» Double Deep Pallet Stacker Crane For ASRS »»
Stacker Crane · SRM· Floor Supported Storage / Retrieval Machine · Made In China
»» Single Deep Pallet Stacker Crane For ASRS »»
Stacker Crane · SRM· Floor Supported Storage / Retrieval Machine · Made In China
»» U-Turn Stacker Crane Curve Rail Type Pallet Stacker Crane For ASRS »»
Stacker Crane · SRM· Floor Supported Storage / Retrieval Machine · Made In China
● Four-column stacker cranes ASRS
Stacker Crane · SRM· Floor Supported Storage / Retrieval Machine · Made In China
Production Scenarios
—
Stacker Crane · SRM· Floor Supported Storage / Retrieval Machine · Made In China
Product Packaging And Transportation
——
Stacker Crane · SRM· Floor Supported Storage / Retrieval Machine · Made In China
Warehouse Safety Barrier
—
Stacker Crane · SRM· Floor Supported Storage / Retrieval Machine · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
