MiniLoad Stacker Crane ASRS Material Box Stacker Crane Automatic Storage and Retrieval System
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | MiniLoad Stacker Crane ASRS |
| Document: | Stacker Crane ASRS .pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS per Month |
|
Detail Information |
|||
| Name: | MiniLoad Stacker Crane ASRS | Type: | Automated Retrieval |
|---|---|---|---|
| Material: | Steel | Usage: | Warehouse Material Box Storage |
| Size: | Customized | Packing: | Customers' Request |
| Finish: | Powder Coated | Color: | Customized |
| Advantages: | Product-to-person | ||
| Highlight: | MiniLoad Stacker Crane,Material Box Stacker Crane,Automatic Storage and Retrieval System |
||
Product Description

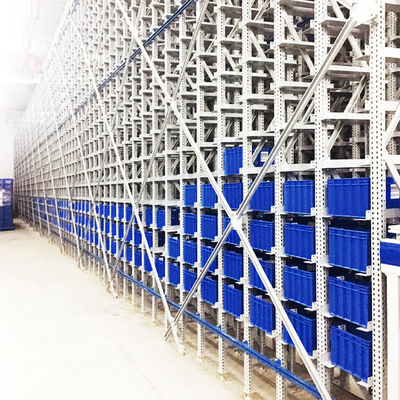

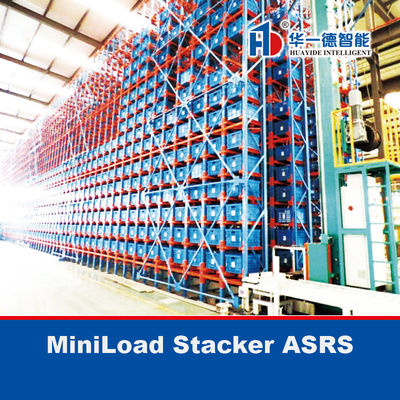

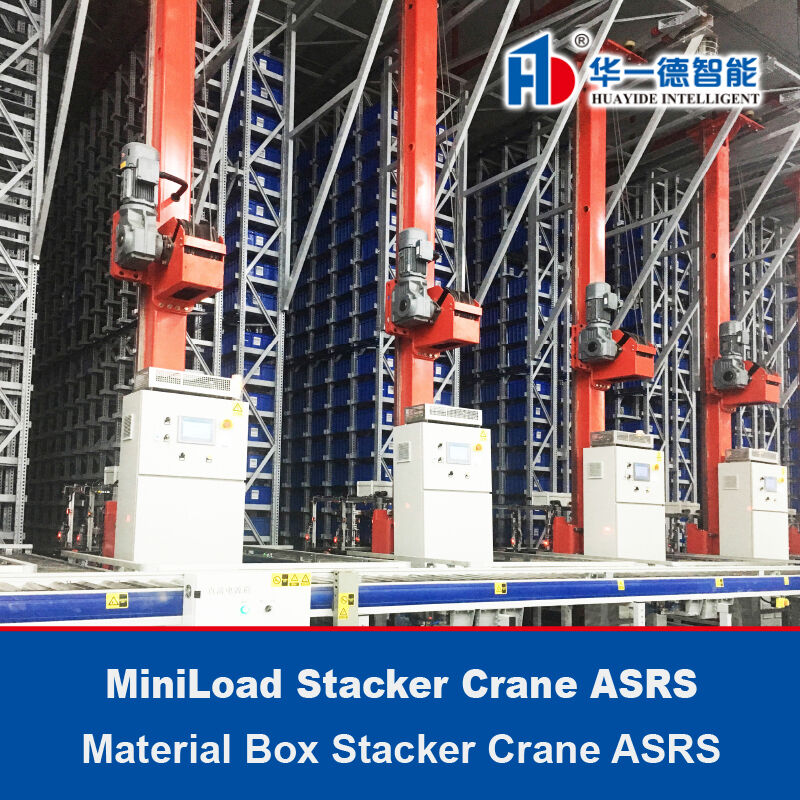

MiniLoad Stacker Crane ASRS
——
Material Box Stacker Crane ASRS
MiniLoad Stacker Crane ASRS is a storage solution that uses miniload stacker to automatically access miniloads (plastic boxes or cartons). The miniloads can be stored in single box or stacked mode, and the storage capacity of goods in the same area can reach 3-5 times of the traditional flat warehouse.
Mini load AS/RS can be seamlessly connected with the box conveyor and sorting system to form an automatic logistics system with complex functions. It is most suitable for multi variety and small batch inbound and outbound operations such as scattered articles and parts. It can not only realize the storage, sorting and handling functions of logistics, but also cross plane operations, save time and improve efficiency.
Computer controlled, automated box storage system which reduces time spent on order preparation and eliminates errors.
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In China
Advantage
—
1) Applies the "product-to-person" principle 2) Automates the entry and exit operations of products
3) Real-time inventory, which is constantly kept up-to-date 4) Human errors eliminated 5) Maximum use of available space
6) Maximum comfort and easy access to the stored boxes
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In China

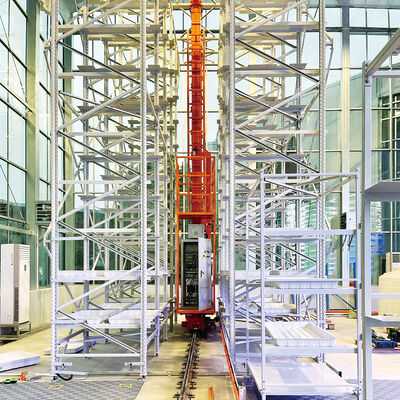

Miniload Light Stacker
——
| Instalations | Parameters | Positioning accuracy | ±5mm | |
| Load | Max 100KG | Noise | <75db | |
| Height | Max 21m | Walking acceleration | Max 3m/S² | |
| Traveling speed | 120~360m/min | Acceleration of lift and descent | Max 1m/S² | |
| Litng speed | 60~90m/min | Pallet fork acceleration | LOADING 0.5m/S² | |
| Pallet fork speed | LOADING 40m/min |
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In China
Engineering Case Ⅰ
——
Engineering Case Ⅰ
——
MiniLoad Stacker Crane ASRS · Warehouse Storage Rack · Made In China
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
CASE
Mindray Bio-Medical
——
Solution Introduction
—
Total 32232 tote positions;Tote outside dimension: D400*W300*H240mm; Total 11 units miniload stacker
Walking speed: 160m/min; Lifting speed:40m/min; Fork speed: 40m/min;

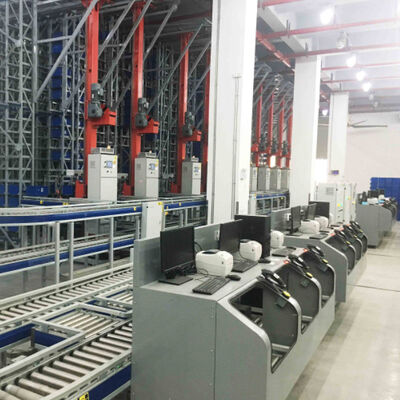

In front of ASRS, sorting system is divided into input and output two layers. Greatly improved equipment picking efficiency;
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
CASE
Mindray Bio-Medical
——
Solution Introduction
—
Project: Nanjing Xingqiao Y-TEC Automobile Parts Co.,Ltd.
H:19.7m Height: 19.7m 4140个 Number of goods: 4140 Operating time: April 2019
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China

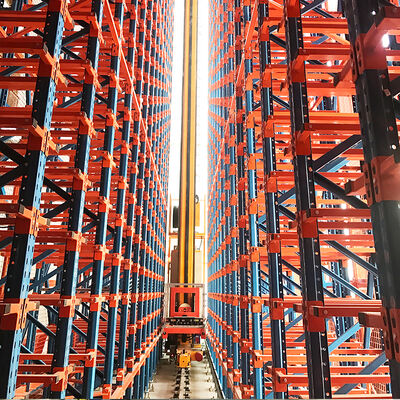

Stacker Crane AS/RS
——
The stacker operates in the horizontal and vertical directions during the warehouse racking by racking and stacker equipement. According to the instructions of the computer, the goods carried by the pallets are stored in the designated goods by the motor-driven fork. Or remove the goods from the designated pallet location.
■ Product Advantages
Customized according to project production, light, heavy, single and double deep; complete categories
Representative manufacturer of domestic European structural design, stable performance of stacker, ensuring long-term reliable operation
Deepen understanding of customer business needs, focusing on optimization design
■ Characteristics
Shelf height can reach 40 meters or higher, reducing land occupation area
Automatic unmanned operation, reducing labor costs
Seamless data integration with ERP system and real-time intelligent production scheduling
Eliminate the chaos in the warehouse and reduce the difficulty of management
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China
Pallet Conveyor Sorting System
——
Room-temperature warehouse and cold storage warehouse
Operating temperature: -30°C to +45°C
