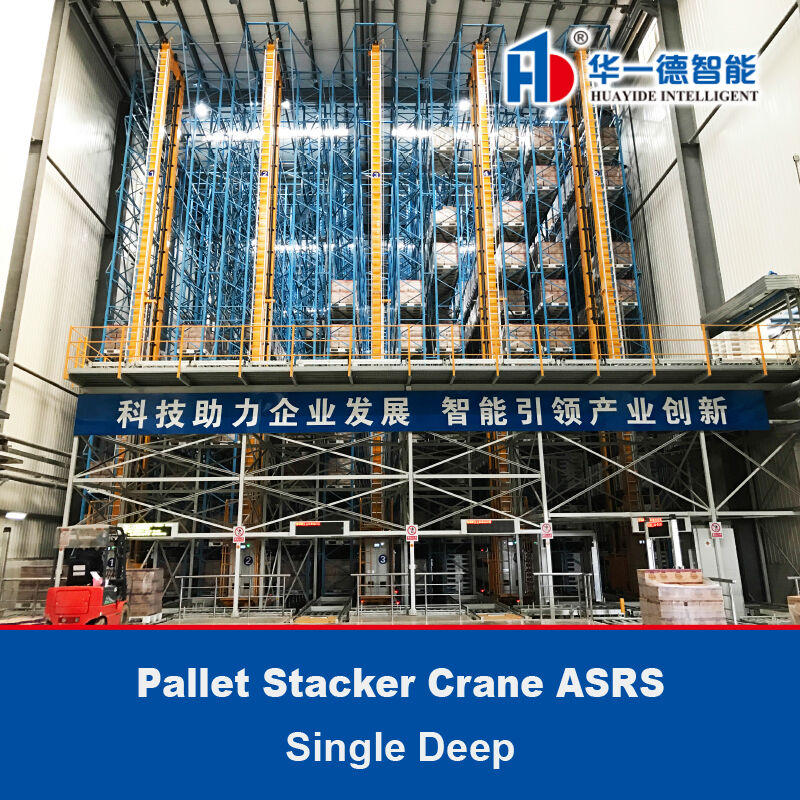

Single Deep pallet Stacker Crane ASRS, Floor Supported SRM(Storage Retrieval Machine), Automatic Storage And Retrieval System,Automation Logistics Warehouse
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | Single Deep Pallet Stacker ASRS |
| Document: | Stacker Crane ASRS.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5000KGS |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS per Month |
|
Detail Information |
|||
| Name: | AS/RS Warehouse Systems Automatic Storage Retrieval System Asrs Racking System | Type: | Automated Retrieval |
|---|---|---|---|
| Material: | Steel | Usage: | Warehouse Storage |
| Loading: | 0.5-1.5T | Packing: | Customers' Request |
| Finish: | Powder Coated | Color: | Customized |
| Height: | 7- 24m | Speed: | 160m/min |
| Highlight: | Single Deep Pallet Stacker ASRS,Automated Storage and Retrieval System,Warehouse Storage Racking |
||
Product Description
ASRS
Single Deep pallet Stacker Crane
——
Floor Supported Storage And Retrieval Machine
Automatic Storage And Retrieval System
Single-Deep Forks Are Used For Automated Warehouse Storage Of Light Goods Such As Crates. The Fork Body Is Delicate And Small, Usually Used As A Single Fork, But Also Can Be Used As A Double Fork Or Multi-Fork Joint Use.There is a row of racks on each side of the single-depth stacker. And the single-depth fork can only be extended once to pick up the goods in the surrounding row of racks.Load 0.5-1.5T, height 7-24m, speed 160m/min.
Single Deep pallet Stacker Crane ASRS · Automatic Storage And Retrieval System · Made In China
● Main components and functions
One-piece upper fork: made of high-strength plate with integral bending processing, simple and beautiful, high strength;
High-strength needle roller bearings: customized according to the requirements of telescopic fork industry, with high precision, low resistance, strong radial bearing capacity, high hardness and self-aligning function, wear-resistant and impact-resistant;
Polymer material guide block: ultra-high polymer polyethylene, high wear-resistant, impact-resistant, with self-lubrication;
Analyzed chain: anti-stretch, high strength, high breaking load, fatigue resistance;
One-piece center fork: made of high-quality steel, machining center one-piece molding, with high precision;
Torque limiter protection: the driving part is equipped with a torque limiter, disc spring friction plate structure, overload slipping in time to disconnect the transmission;
Mechanical Limit Protection: The telescopic fork is equipped with a mechanical limit inside to prevent it from being dislodged over the stroke;
Drive: Variable frequency motor, AC servo motor with planetary reducer can be used to provide drive;
Single Deep pallet Stacker Crane ASRS · Automatic Storage And Retrieval System · Made In China
Engineering Case Ⅰ
——
| Stacker Crane Clad (Guangzhou) |
| Height: 22.8m Number of goods: 9600 Operating time: July 2017 |
| Main equipment: 5 stackers, 1 set of conveying system, 1 set of rack system, and 1 set of WMS/WCS/RFS software system. |
Single Deep pallet Stacker Crane ASRS · Automatic Storage And Retrieval System · Made In China
Engineering Case Ⅱ
——
| Guang zhou |
| Height:23.4m Number of goods: 16068 Operating time:December 2017 |
| Main equipment: 13 stackers, 1 set of conveying system, 1 set of rack system, and 1 set of WCS/RFS software system |
| Su zhou |
| Height: 23.4m Number of goods: 20228 Operating time: October 2018 |
| Main equipment: 13 stackers, 1 set of conveying system, 1 set of rack system, and 1 set of WCS/RFS software system |
| Tian jin |
| Height: 23.4m Number of goods: 22512 Operating time: November 2021 |
| Main equipment: 12 stackers, 1 set of conveying system, 1 set of rack system, and 1 set of WCS/RFS software system |
Single Deep pallet Stacker Crane ASRS · Automatic Storage And Retrieval System · Made In China
Engineering Case Ⅲ
——
Single Deep pallet Stacker Crane ASRS · Automatic Storage And Retrieval System · Made In China
Engineering Case Ⅳ
——
| Height: 19.3m Operating time: November 2019 |
| Main equipment: 8 stackers, 1 set of conveying system, 1 set of rack system, and 1 set of WMS/RFS software system |
Engineering Case Ⅴ
——
Single Deep pallet Stacker Crane ASRS · Automatic Storage And Retrieval System · Made In China
Optional Supporting Equipment
——
Single Deep pallet Stacker Crane ASRS · Automatic Storage And Retrieval System · Made In China
Warehouse Safety Barrier
—
Single Deep pallet Stacker Crane ASRS · Automatic Storage And Retrieval System · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
