Radio Shuttle Cart and Shuttle Racking ASRS Automatic Storage and Retrieval System
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | Shuttle ASRS |
| Document: | Stacker Crane ASRS.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000KGS |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 900000KGS per Month |
|
Detail Information |
|||
| Material: | Steel | Use: | Warehouse Rack |
|---|---|---|---|
| Finish: | Powder Coated | Load Capacity: | 1000-1500kgs Per Pallet |
| Beam Type: | P-Shape Mill Tube Beam; Box Beam; Z-Shape Step Beam | Feature: | Save Space |
| Application: | Normal Temperature Or Cold Room (Max -40C) | OEM: | Available |
| Highlight: | Radio Shuttle Cart,Shuttle Racking,Automatic Storage and Retrieval System |
||
Product Description

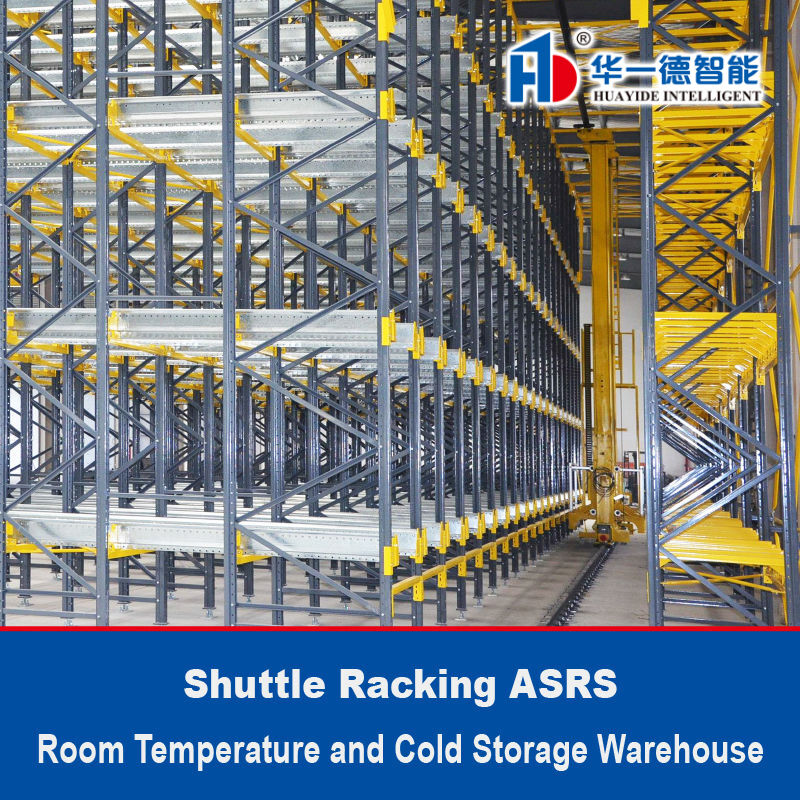

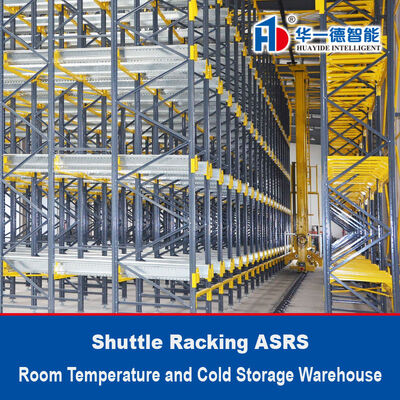

Shuttle Pallet Rack ASRS
——
Operating temperature: -30°C to +45°C
Shuttle Pallet Rack: It is designed for storing a few varieties and large quantities of similar goods with very high space utilization. Goods are stored and removed from the same side, or done from the opposite side by the "first-in, first-out principle. It's especially suitable for standard goods units.
Features of Shuttle Pallet Racking:
1. Shuttle pallet racking is a special made racking system for shuttle which based on the structure of Drive-in racking.
2. Depth of this racking system could be 30-60m, which is much bigger than normal Drive-in racking.
3. This system doesn't need the forklift to pick up goods inside the lane, but a shuttle instead.
4. Shuttle pallet racking has a good safety performance.
5. It is suitable for storing goods of large quantity by small varieties, such as food, chemical,Tobacco industry, it is also the best choice for cold operation storage.
● Features of Shuttle Pallet Racking ASRS: Intelligent Control, Four Direction Moving, Layer Changing On Vertical.
Product Category:Four Way Shuttle AS/RS, Radio Shuttle Cart And Carrier ASRS ,Shuttle Racking and Stacker Crane ASRS.
Shuttle Pallet rack ASRS · Warehouse Storage Rack · Made In China

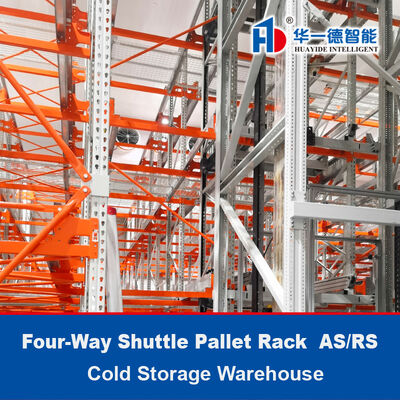

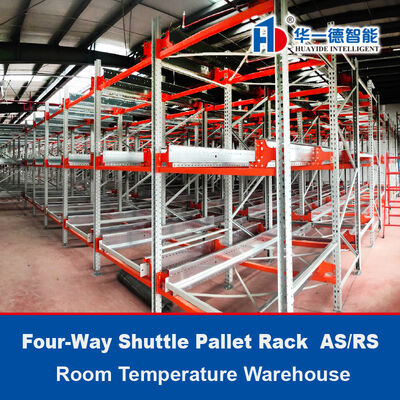

Shuttle Pallet Rack ASRSⅠ: Four Way Shuttle AS/RS
——
Operating temperature:-30°C to +45°C
The pallet four-way shuttle is an intelligent device used for pallet cargo handling. It can achieve both vertical and horizontal travel, and can reach any position in the warehouse. The horizontal movement and retrieval of goods in the shelf is completed by only one four-way shuttle car. The level of system automation is greatly improved through hoisting. It is a new generation of intelligent handling equipment for pallet-type dense storage solutions.
HUAYIDE believes that in the ASRS solution, "software defines hardware", and software determines the fluency and cooperation of hardware. Hence four way pallet shuttle system is built on our own WMS & WCS, which realizes the dynamic management of stored items in the warehouse to ensure that the physical inventory is consistent with the account. Along with real-time data transmission with ERP, WMS assesses orders, inventory, labor and material handling systems to effectively execute order fulfillment. From storage to picking and all the way through shipping, WMS determines the most productive flow and resource allocation. We also provide accurate zone visibility of downstream capacities, destination availability & each equipment status to most effectively utilize your warehouse storage space.
Shuttle Pallet rack ASRS · Warehouse Storage Rack · Made In China

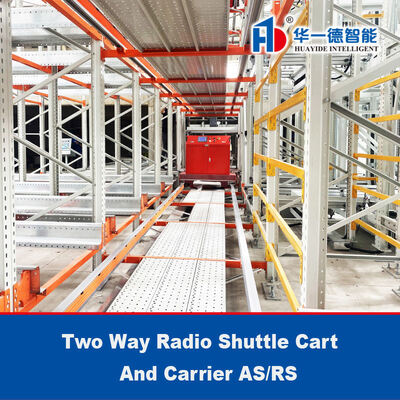

Shuttle Pallet Rack ASRS Ⅱ: Radio Shuttle Cart And Carrier ASRS
——
Operating temperature:-30°C to +45°C
The automatic dense storage system is composed of shuttle, guide rails, racking, fixed conveying stacker, pallet conveying systems, automatic control systems (WCS), wireless control systems (ECS), warehouse management software (WMS) and etc. . The shuttle is the key equipment of automatic dense storage system. Its movement can realize the movement of goods in two directions in the racking system.
Shuttle Pallet rack ASRS · Warehouse Storage Rack · Made In China

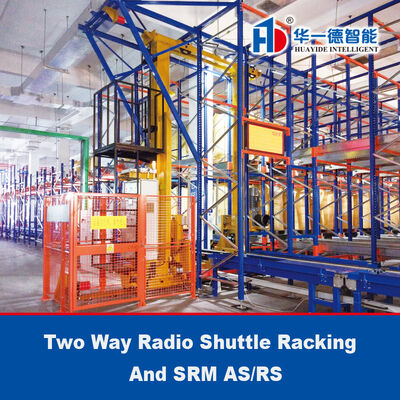

Shuttle Pallet Rack ASRS Ⅲ: Radio Shuttle Racking & Stacker Crane ASRS
——
Operating temperature:-30°C to +45°C
Radio shuttle and stacker solution realize the density storage of the pallet goods, the system takes the advantage of the mature stacker technique together with the shuttle to realize intensive storage function with increasing the depth of the tunnels and reducing the quantity of stackers, and with the usage of the WMS/WCS control system to realize full automatic operation of the shuttle, stacker, conveyor machine and other equipment. This system can realize FIFO to store in random, cancel the forklift passage and assist storage space, highly improve the materials density in the warehouse, save the forklift in-out stock time, reduce labors’ working time and meet meet the customers requirements of high-density storage.
Shuttle Pallet rack ASRS · Warehouse Storage Rack · Made In China
Optional Supporting Equipment
——
Shuttle Pallet rack ASRS · Warehouse Storage Rack · Made In China
Racking Production
—
Shuttle Pallet rack ASRS · Warehouse Storage Rack · Made In China
Automation Equipment Assembly
—
Shuttle Pallet rack ASRS · Warehouse Storage Rack · Made In China
Warehouse Safety Barrier
—
Shuttle Pallet rack ASRS · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
