Product Details:

Place of Origin: China
Brand Name: Huayide
Certification: CE&ISO
Model Number: HYD-ASRS

Payment & Shipping Terms:

Minimum Order Quantity: 5000KGS
Price: USD1.1~1.29/KGS
Packaging Details: Plastic banding+Stretch film wrapped
Delivery Time: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 900000KGS per Month
Get Best Price Contact Now

Detail Information

Name: U Shape Stacker ASRS Type: Automated Retrieval
Material: Steel Usage: Warehouse Storage
Size: Customized Packing: Customers' Request
Finish: Powder Coated Color: Customized
Height: 5-27m
High Light:

U shape stacker ASRS

,

Automatic Storage and Retrieval System

,

Powder Coated ASRS Pallet Racking

Product Description

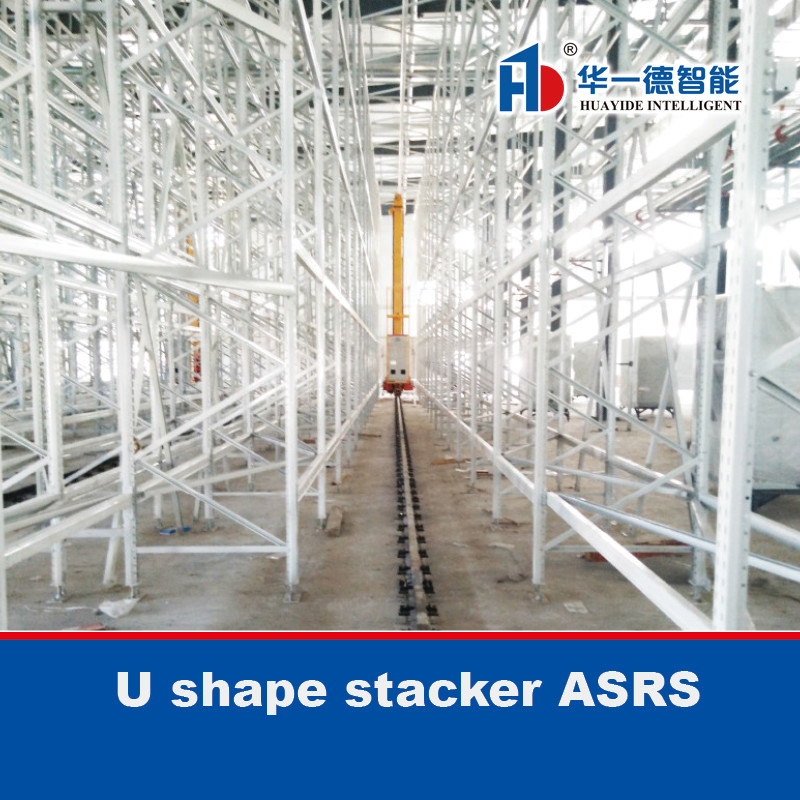

U Shape Stacker ASRS

——



U Shape Stacker ASRSU Shape Stacker ASRS

U shape stacker ASRS,Automatic Storage and Retrieval System 2







Double Deep Pallet Stacker ASRS Double Deep Pallet Stacker ASRS

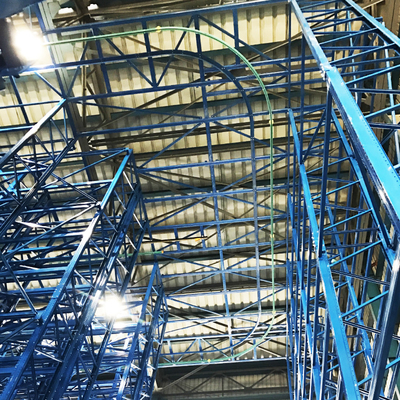

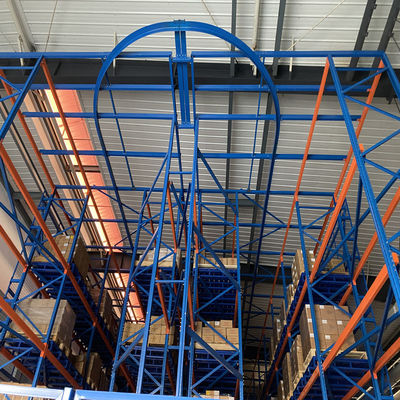

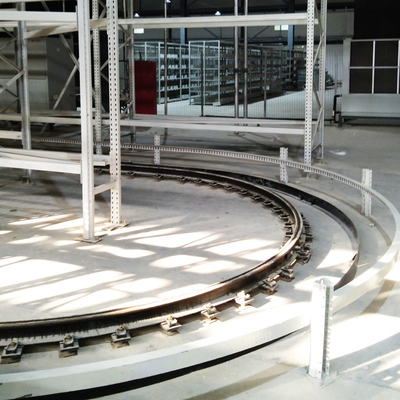

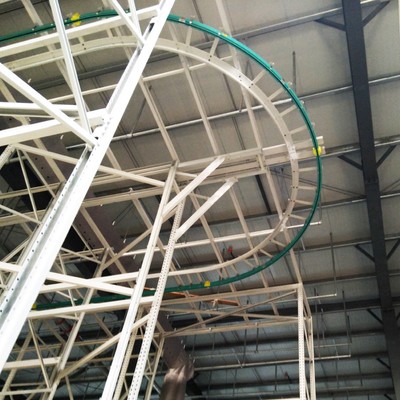

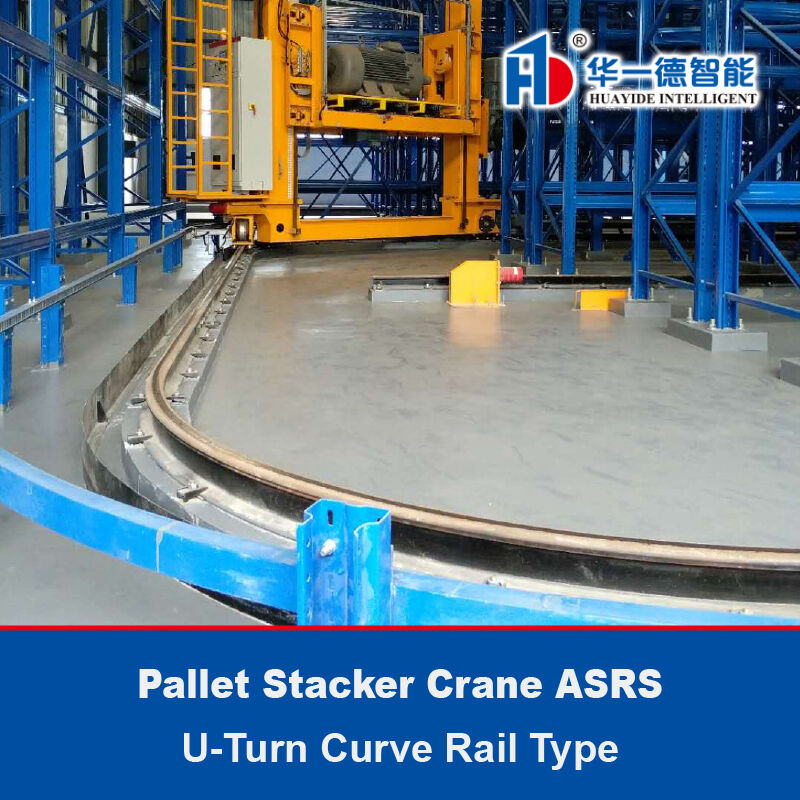

U shape stacker ASRS

Transfer in 2-3 aisles, process 4-6 rows

U shape stacker can realize the configuration requirements of one machine with multiple lanes, meet the requirements of users with large storage capacity and low storage efficiency, and reduce the cost.

It is commonly used in new energy finished product warehouse, steel industry finished product warehouse, auto parts warehouse, cold chain warehouse, etc.



Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China






CASE

Humanwell Healthcare Group

——



U shape stacker ASRS,Automatic Storage and Retrieval System 5





Solution Introduction



Humanwell Healthcare Group Co., Ltd. is a comprehensive pharmaceutical industry group integrating terminal, hospital, wholesale, fast approval, anchoring, tripartite logistics and other businesses. It is a pharmaceutical enterprise with strong production capacity, complete dosage forms, many varieties and abundant resources in Hubei Province. And it is a leading enterprise in the pharmaceutical industry in Hubei Province and one of the top 30 enterprises in China's pharmaceutical industry.



According to the needs of Humanwell Healthcare Group's business development and logistics center construction, Huayide has carried out logistics planning according to the characteristics of Humanwell Healthcare Group's logistics center information system (WMS) project and the existing construction experience. Huayide has provided Humanwell pharmaceutical with drug storage, sorting, distribution and refined GSP management. At the same time, Huayide has built a pharmaceutical logistics platform in combination with business needs to calmly deal with the three-party logistics processing. Through the unification of information platform, the standardization of logistics management and the high combination of various business forms, the logistics center has more flexibility and expansibility when serving business.



Double Deep Pallet Stacker ASRSDouble Deep Pallet Stacker ASRS



Warehousing:

Huayide directly introduces the WMS system, and divides the goods according to the owner, floor, and category. Through the system operation, the goods warehousing only need to be manually operated. It not only saves staffing, but also reduces the repetition rate of operations, thereby saving costs.



Storage:

Goods are divided into two broad categories: pharmaceuticals and non-pharmaceuticals. The form of the medicine is formal, but the batch number is complex. According to the product specification, batch number, manufacturer, and owner, the electronic supervision system is used to reduce picking errors, reduce labor costs, and increase picking efficiency. In terms of storage, Huayide has set up an automated stereo picking area, covering an area of more than 1,700 square meters, more than 20 meters high, about more than 7,000 pallets, and can store about 130,000 boxes, mainly used to store BC products. The 5 sets of stackers operate at the same time, and the handling capacity of pallets in and out per hour is about 200 pallets, which are divided into pallet picking in and out and online box picking. By controlling the online picking of varieties in the warehouse, the efficiency of entering and leaving the whole pallet is fully guaranteed. The linkage between the automated stereo warehouse and the floor is realized through automatic pallet conveying equipment, stacker equipment, roller conveying equipment and belt conveying equipment. The types of non-pharmaceuticals are complex, mainly including health care products and medical devices. non-pharmaceuticals generally have different shapes, large volumes, complex cargo space management, and large inventory volume. It is necessary to divide a large area for mixed storage according to the level of the cargo owner.



Double Deep Pallet Stacker ASRS Double Deep Pallet Stacker ASRS



Outbound:

According to the outbound path of the goods and the goods label, the outbound is carried out. For goods picking, a multi-floor picking conveyor line system is adopted to maintain the relatively independent functional distribution between floors to achieve organic connection between floors. It improves the smoothness of the traditional whole area to the outbound collection area, and also provides fast replenishment support for the zero-demolition area on different floors. The form of passing through the floor adopts the climbing perforation, which greatly reduces the cost and improves the overall economy of the project. In addition, Huayide has also introduced a sorting and confluence system. The multi-floor goods (whole pieces, review packages) are transferred to the first floor through the conveyor line and enter the lifting wheel-type sorter for confluence and collection, so as to achieve smart configuration of distribution lines. The glide path slides down to the horizontal accumulation section by gravity for the operator to carry it, which greatly saves energy consumption and reduces operating costs, and is well received by the owners.





Double Deep Pallet Stacker ASRS Double Deep Pallet Stacker ASRS

Double Deep Pallet Stacker ASRS Double Deep Pallet Stacker ASRS



Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China








Radio Shuttle Racking





U shape stacker ASRSU shape stacker ASRS

Double Deep Pallet Stacker ASRS Double Deep Pallet Stacker ASRS



Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China






Stacker Crane AS/RS

——



The stacker operates in the horizontal and vertical directions during the warehouse racking by racking and stacker equipement. According to the instructions of the computer, the goods carried by the pallets are stored in the designated goods by the motor-driven fork. Or remove the goods from the designated pallet location.





Stacker Crane AS/RS





 Product Advantages

Customized according to project production, light, heavy, single and double deep; complete categories

Representative manufacturer of domestic European structural design, stable performance of stacker, ensuring long-term reliable operation

Deepen understanding of customer business needs, focusing on optimization design



■ Characteristics

Shelf height can reach 40 meters or higher, reducing land occupation area

Automatic unmanned operation, reducing labor costs

Seamless data integration with ERP system and real-time intelligent production scheduling

Eliminate the chaos in the warehouse and reduce the difficulty of management





Automated Storage and Retrieval System · Warehouse Storage Rack · Made In China






Ensure the quality of Huayide racking products



1 The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source.
2 The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning.
3 Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf.
4 Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof.





Warehouse Storage Rack  www.heavyracking.com Warehouse Storage Rack  www.heavyracking.com



Warehouse Storage Rack  www.heavyracking.com

Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.

Welcome everyone visit and give guidance.
