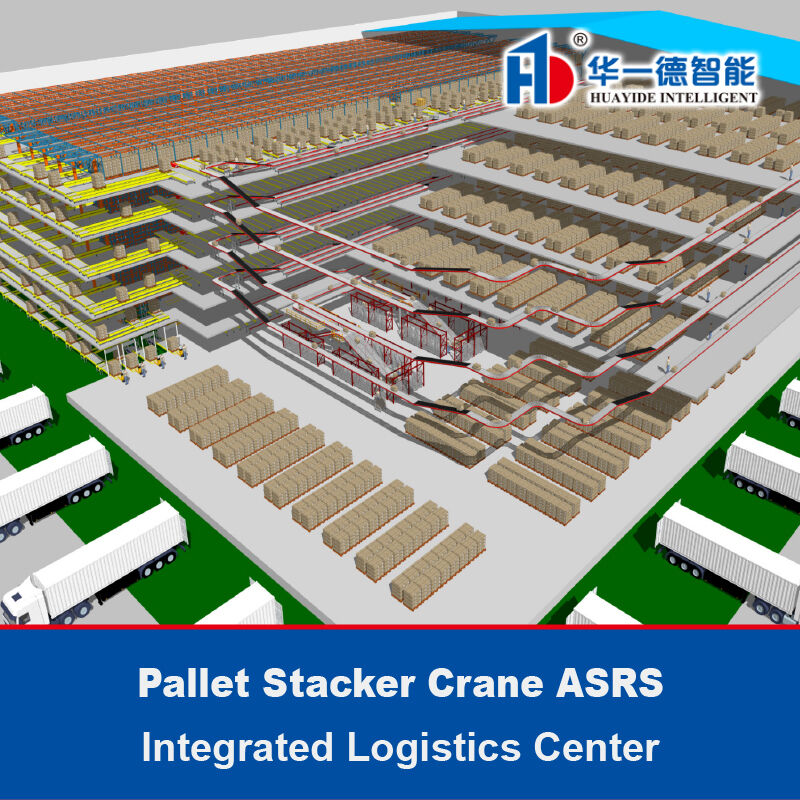

Integrated Logistics Center Pallet Stacker Crane ASRS Automatic Storage And Retrieval System
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | Integrated Logistics Center |
| Document: | Stacker Crane ASRS.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic Film Protect&Sponge |
| Delivery Time: | Negotiated |
| Payment Terms: | L/C, T/T |
| Supply Ability: | <50000 Kg |
|
Detail Information |
|||
| Name: | Integrated Logistics Center ASRS | Product Category: | Fully Automated Storage System |
|---|---|---|---|
| Loading Capacity: | Up To 1500 Kg/Pallet | Surface Treatment: | Powder Coating/Galvanized |
| Shelf Height: | Can Reach 30 Meters | Space Utilization: | Ultra-High Density Storage |
| Principal: | Fifo & Filo | ||
| Highlight: | Integrated Logistics Center,Stacker Crane ASRS,Automatic Storage And Retrieval System |
||
Product Description
ASRS

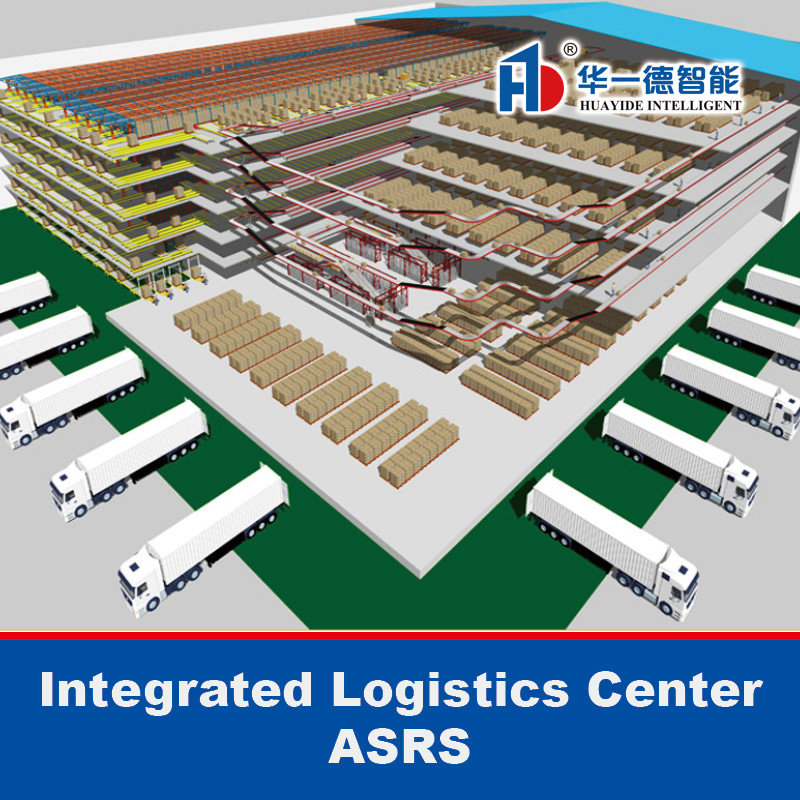

Integrated Logistics Center
——
Floor Supported Storage And Retrieval Machine
Automatic Storage And Retrieval System
The integrated logistics center is to gather more than two different types of logistics centers together to become a logistics facility with comprehensive functions and high efficiency.
The role of integrated logistics center: intensification, effective connection, support and expansion of joint transportation, improvement of logistics level, improvement of urban environment and promotion of urban economic development.
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China

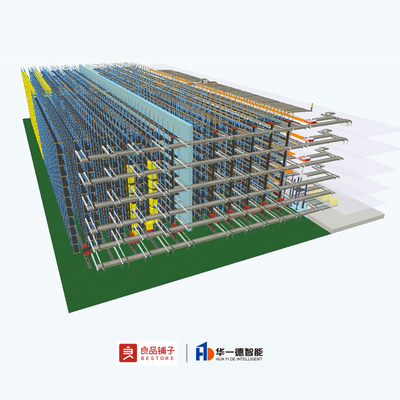

Engineering CaseⅠ
——
Huabei Bestore No. 1 logistics Center occupies an area of 15333sqm, its construction area is 46000sqm. The building has 24 meters ASRS warehouse and 5 layers building store. The whole automated system integrated by Huaruide. AS/RS consists of 10 stacker crane, 6 layers conveying system, 19200 pallet positions. In the building store, there are 5 layers dual working positions and 4 units single work position ferry cart. 6 layers 1700 pallet positions gravity sorting area. 6 layers 2500meters picking line, 1 set rapid picking line and 3 sets spiral hoist . In the entire logistics center can support 0.5 billion salves volume, 30000 pallets storage and 10000 cartons/ hour picking efficiency.
Adopting On-ground Roller Input Operation Mode
Manual Picking + High Speed Automated Picking Area
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China

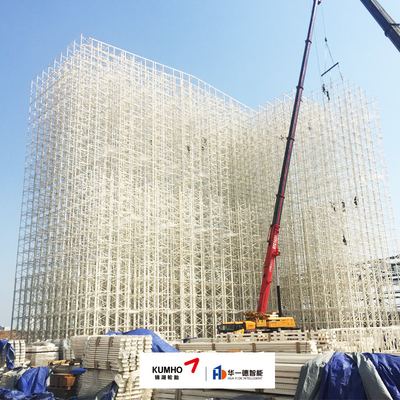

Engineering Case Ⅱ
——
The integrated logistics center is to gather more than two different types of logistics centers together to become a logistics facility with comprehensive functions and high efficiency.
The role of integrated logistics center: intensification, effective connection, support and expansion of joint transportation, improvement of logistics level, improvement of urban environment and promotion of urban economic development.
| ASRS height: 42m | Number of storage locations: 20,592 | Put into use: December 2016 |
| Main equipment: 9 stacker cranes, 1 set of circular shuttle system, 1 set of conveyor system, 1 set of shelf system, and 1 set of WMS/WCS/RFS software system. | ||
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China

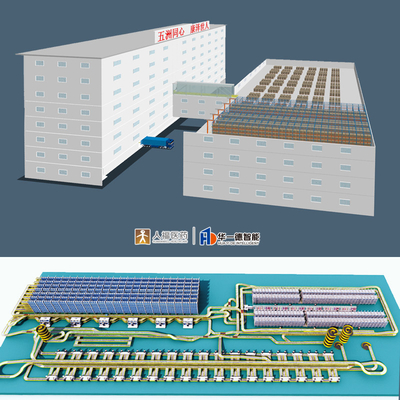

Engineering Case Ⅲ
——
| ASRS height: 7.9 m | Number of cargo spaces: 832 | Put into use: November 2017 |
| Main equipment: 2 sets of turning stacker crane systems, 1 set of sorting system, 1 set of conveying system, 1 set of shelving system, and 1set of WMS/WCS/RFS software system. | ||
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China
Product Packaging And Transportation
——
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China
Optional Supporting Equipment
——
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China
Warehouse Safety Barrier
—
Integrated Logistics Center · Automatic Storage And Retrieval System · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
