B45: Granary Grain Depot Four Way Radio Shuttle Racking ASRS pallet runner rack system 4 Way Radio Shuttle Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | ISO,CE |
| Model Number: | Four Way Radio Shuttle Racking |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000kgs |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack |
| Delivery Time: | around 15 working days |
| Supply Ability: | 600000KGS per month |
|
Detail Information |
|||
| Name: | Four Way Radio Shuttle Racking | Type: | Shuttle Robot |
|---|---|---|---|
| Type Of Storage Medium: | Pallet, Metal Cage Or Others | Shuttle Self Weight: | 280-290kg |
| Specification: | Q235 Steel | Loading Capacity: | Up To 1500 Kg/Pallet |
| Operation Temperature: | -30°C～0°C～+ 45°C | Surface Treatment: | Powder Coated |
| Highlight: | Granary ASRS,Grain Depot ASRS,pallet runner rack system |
||
Product Description

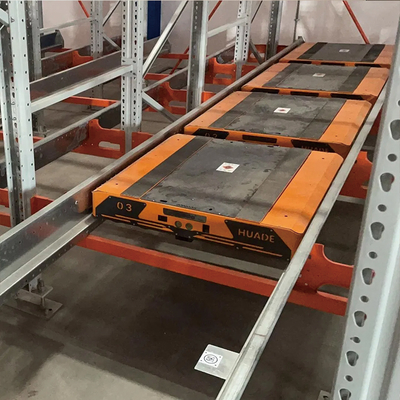

Four-way Shuttle Racking
Granary ASRS
Although there are many mature solutions for high-density, multi-depth pallet warehouse storing, like Radio Shuttle System, Stacker Crane plus Satellite System, Mother & Baby Shuttle (satellite) System, but space are still left for more specific market and industries. Since 2016, HYD team had input research and development on Four Way Pallet Shuttle for exploring more flexibility and further expansion in fully automatic pallet storing and retrieval system. 5 years past, we are proud to say that our four way shuttle had been iteratively updated to the third generation, which is faster, thinner and more accurate.
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China
Product Advantage
——
HUAYIDE latest four way shuttle transport technology (rack entry vehicle) enables these multiple deep pallets at any level can be accessed. The solution can be applied into a smaller building footprint, and in return less impact on its surrounding environment.
All system components of Four Way Shuttle ASRS are designed, engineered and manufactured by ourselves to ensure system compatibility and long useful life. Our hardware over time has resulted in enhanced safety and design plus advanced technology and functionality, providing you with a unique, automated, high density storage solution.
HUAYIDE believes that in the ASRS solution, "software defines hardware", and software determines the fluency and cooperation of hardware. Hence four way pallet shuttle system is built on our own WMS & WCS, which realizes the dynamic management of stored items in the warehouse to ensure that the physical inventory is consistent with the account. Along with real-time data transmission with ERP, WMS assesses orders, inventory, labor and material handling systems to effectively execute order fulfillment. From storage to picking and all the way through shipping, WMS determines the most productive flow and resource allocation. We also provide accurate zone visibility of downstream capacities, destination availability & each equipment status to most effectively utilize your warehouse storage space.
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China

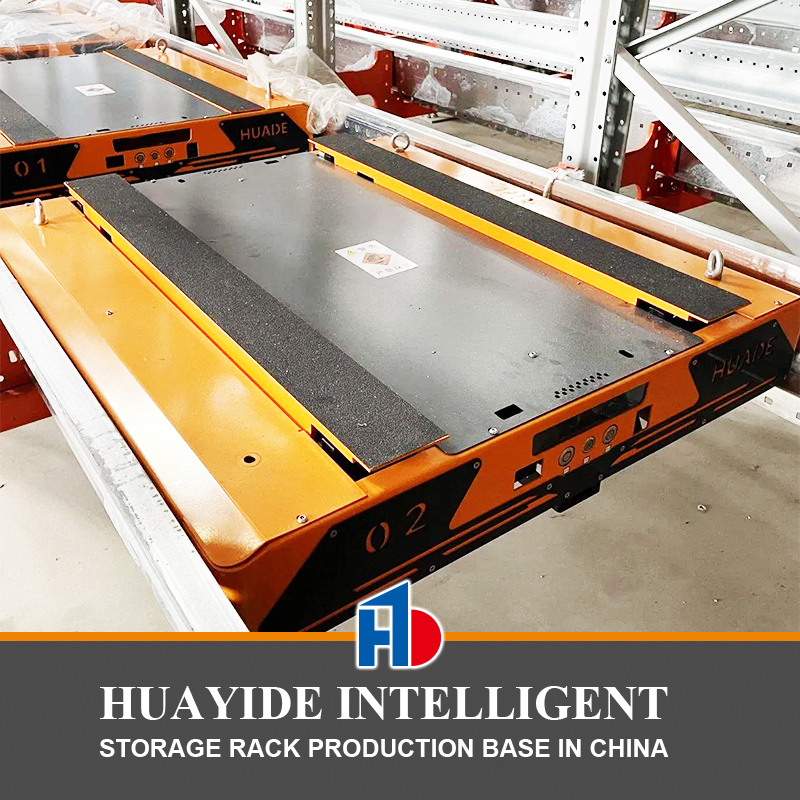

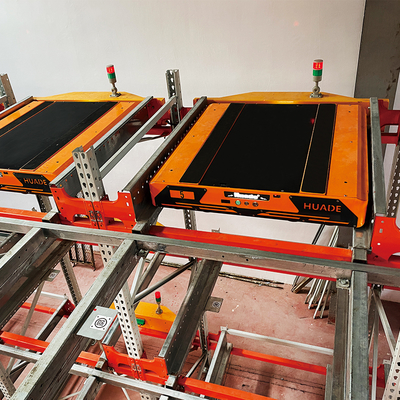

HUADE Four Way Pallet Shuttle Specification:
| ITEM | Shuttle Body (L*W*H ) | Pallet Dimension |
| Standard Shuttle Dimension | 1100L*980W*150Hmm | 1200W*1000D |
| 1200L*980W*150Hmm | 1200W*1100D | |
| 1300L*980W*150Hmm | 1200W*1200D | |
| Self Weight | 450kg | |
| Loading Capacity | 1000kg | |
| Lifting Distance | 40mm, ≤5s | |
| Working Temperature | 0-40ºC | |
| Communication Mode | Wireless AP | |
| Power Supply | lithium battery, 48V36 /45 /60AH | ≥8H continuous work |
| Driving Speed (empty) | 1.5m/s | |
| Driving Speed (load) | 1.0m/s | |
| Acceleration | 0.3m/S2 | |
| Battery Service Life | 2000 charging times | 1.5-2H charging time |
| Addressing | Laser, ±2mm |
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China

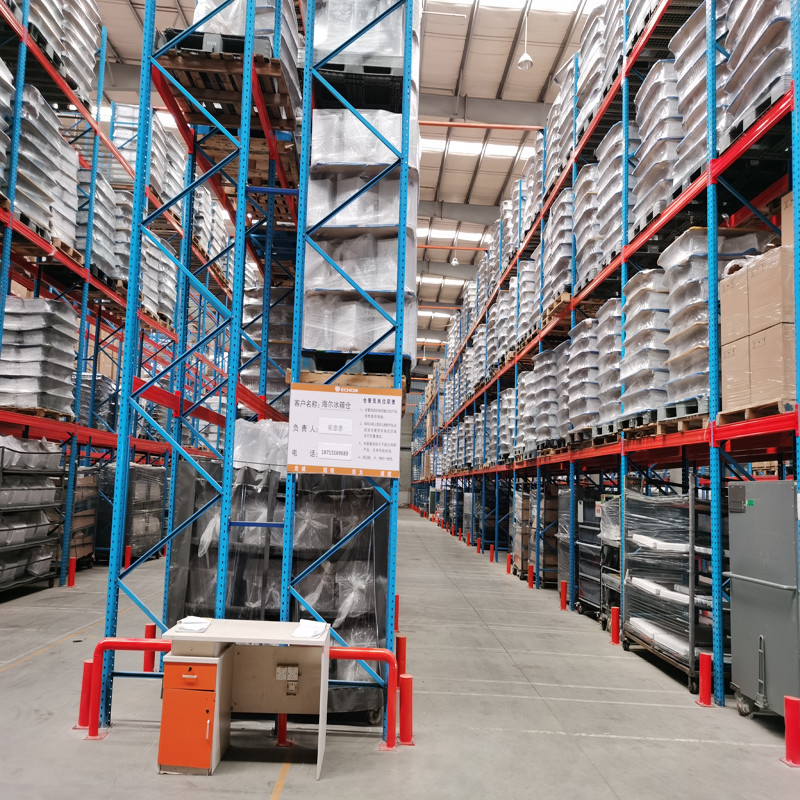

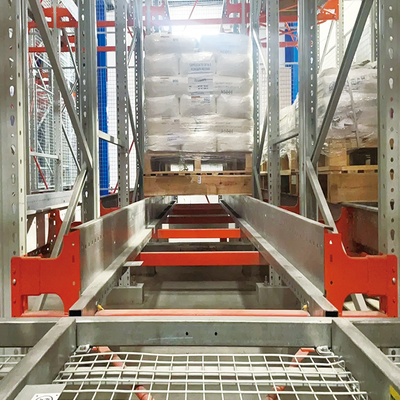

CASE
—
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China

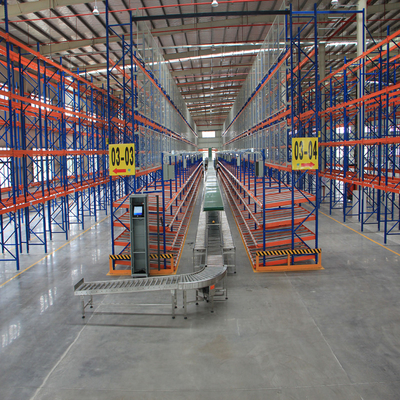

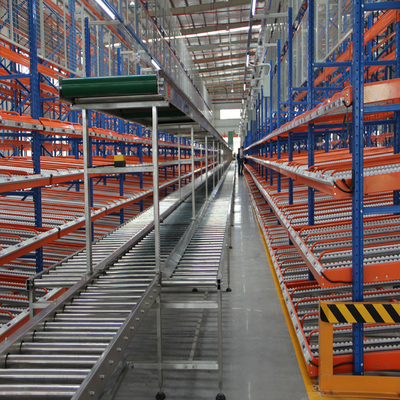

Production Scenarios
——
Four Way Radio Shuttle Cart · Warehouse Storage Rack · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
