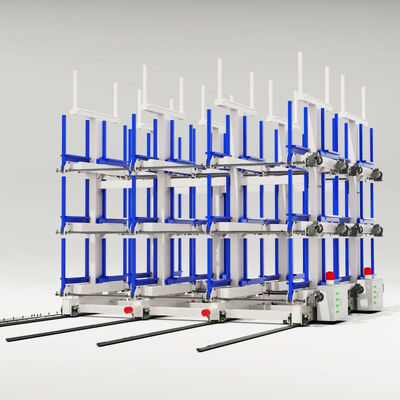

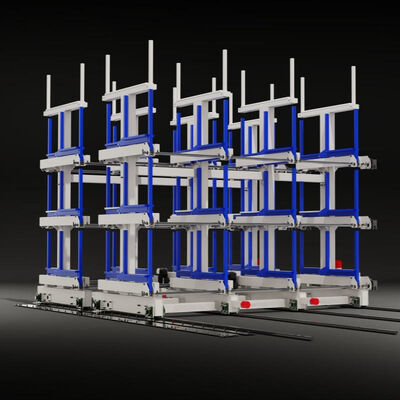

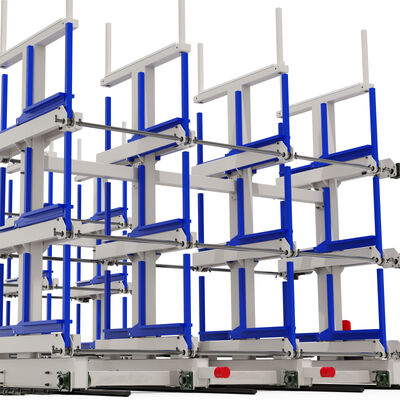

Electric Mobile Telescopic Cantilever Racking Automatic Loading and Unloading Systems For Long Products Warehouse Storage Racking
Product Details:
| Place of Origin: | China |
| Brand Name: | Huayide |
| Certification: | CE&ISO |
| Model Number: | Electric Mobile Telescopic Cantilever Racking |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD1.1~1.29/KGS |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack . |
| Delivery Time: | 10-20 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 900000KGS PER Month |
|
Detail Information |
|||
| Material: | Steel | Specification: | 6000mm/9000mm/12000mm |
|---|---|---|---|
| Number Of Floor: | Customized | Load Single Side Per Layer: | 3T/5T |
| Mode Of Movement: | Linear Guide Rail + Chain | Vertical Lifting Speed: | 9m/min |
| Inlet And Outlet Speed: | 12m/min | Plate Support: | Optional Selection |
| Highlight: | Electric Mobile Cantilever Racking,Heavy Duty Racking,Warehouse Storage Racking |
||
Product Description

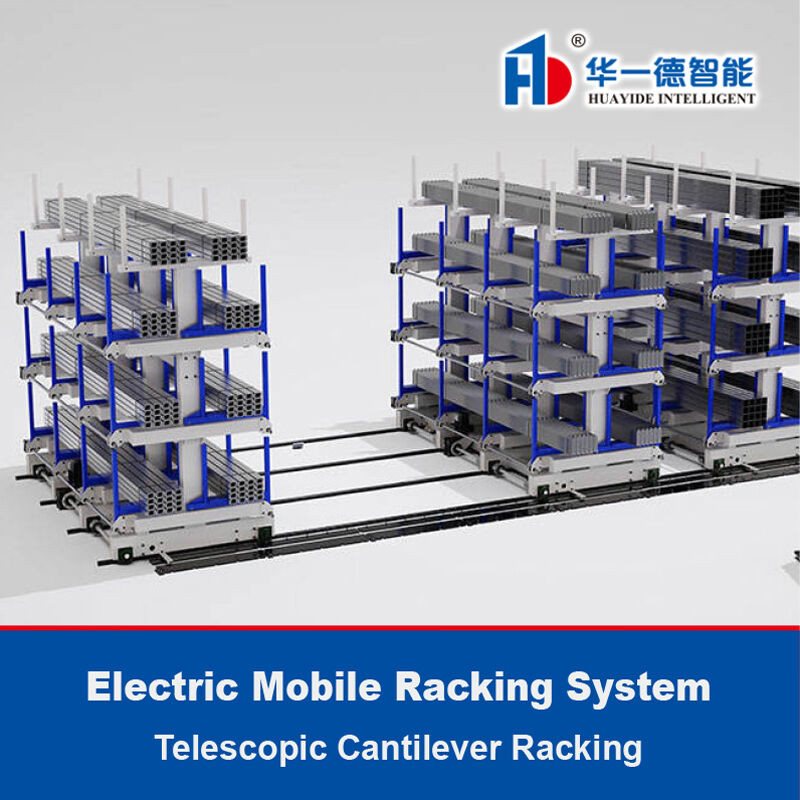

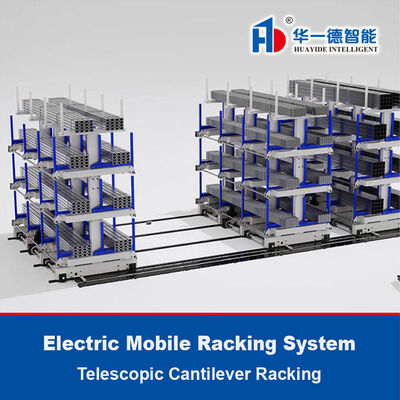

Electric Mobile Racking
—
Telescopic Cantilever Racking
Product Advantages
—
1. Rail-type telescopic cantilever shelves share a single ground rail,only one aisle is needed between the shelves for loading and unloading .
2. Suitable for storing long materials ,pipes,profiles,wires,bars and irregular goods.
3. Ground rail design features stable struture,good load-bearing capacity,and high space utilization.
4. Particularly suitable for warehouses with limited space and low height,easy to manage,wide field of view,and higher utilization rate than ordinary shelves.
Electric Mobile Telescopic Cantilever Racking · Made In China
Specification
—
|
Specifications |
Load (single layer) |
Size |
Layers |
Overall dimensions |
|
HYD6053D |
3t |
6m |
4+1(Bilateral assistance) |
6435x3340x1750mm |
|
HYD9055S |
5t |
9m |
4+1(Unilateral assistance) |
9435x3340x1550mm |
|
HYD9055D |
5t |
9m |
4+1(Bilateral assistance) |
9435x3340x1750mm |
|
HYD12055D |
5t |
12m |
4+1(Bilateral assistance) |
12435x3340x1750mm |
|
Note: Both manual and electric can be customized, and the load-bearing capacity, length, number of layers, and layer height can be customized. |
||||
Electric Mobile Telescopic Cantilever Racking · Made In China
Electric Mobile Telescopic Cantilever Racking · Made In China
Electric Mobile Telescopic Cantilever Racking · Made In China
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large steel group of high quality carbon steel, durable and strong, to ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding joint has good cracking resistance, small welding deformation, beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional personnel with professional technology and cut by professional equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal, phosphating, powder, and then in high temperature oven baking molding, wear-resistant, rust proof. |
Our factory has a product exhibition hall and on-site demonstration of vertical warehouse.
Welcome everyone visit and give guidance.
