IOS14001 Electrostatic Spray Gravity Pallet Racking 1000kg Per Pallet
Product Details:
| Place of Origin: | Anhui |
| Brand Name: | Hua Yide |
| Certification: | ISO & CE |
| Model Number: | Gravity Pallet Racking |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000kg |
|---|---|
| Price: | can be negotiable |
| Packaging Details: | Plastic banding+Stretch film wrapped,easy loading and unloading with standard forklift truck or pallet jack |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 600000 kg per month |
|
Detail Information |
|||
| Material: | Cold-rolled Steel ,steel | Type: | Gravity Flow Pallet Rack |
|---|---|---|---|
| Loading Weight: | 100 To 1000kg Per Pallet | Structure: | Assembled Freely |
| Feature: | Corrosion Protection | Packing: | Plastic Film Protection |
| Welding: | Weld For Automatic Welding | Certification: | CE/IOS9001/IOS14001 |
| Name: | Warehouse Rack Type Gravity Flow Pallet Racking And Shelving | HS CODE: | 73089000 |
| Highlight: | IOS14001 Gravity Pallet Racking,Gravity Pallet Racking 1000kg Per Pallet,gravity flow pallet rack 1000kg Per Pallet |
||
Product Description

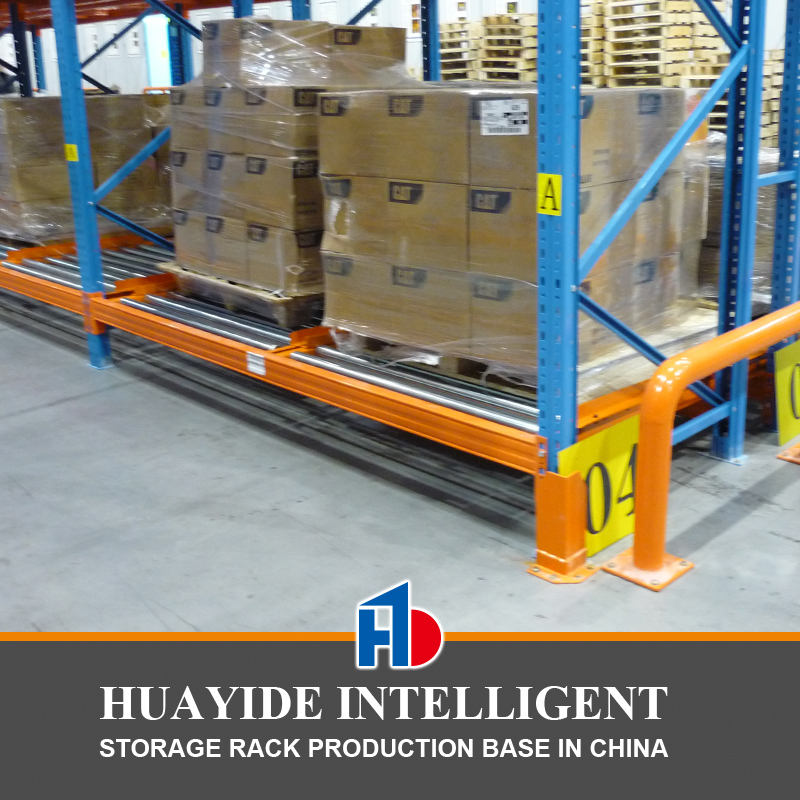

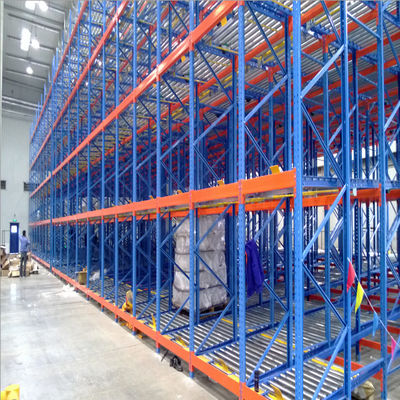

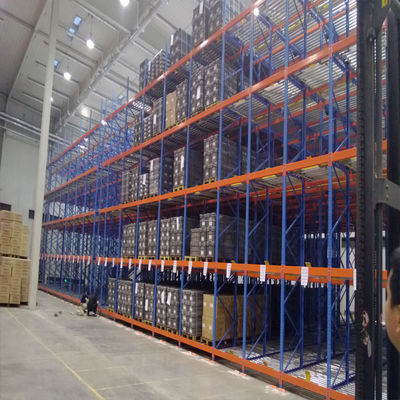

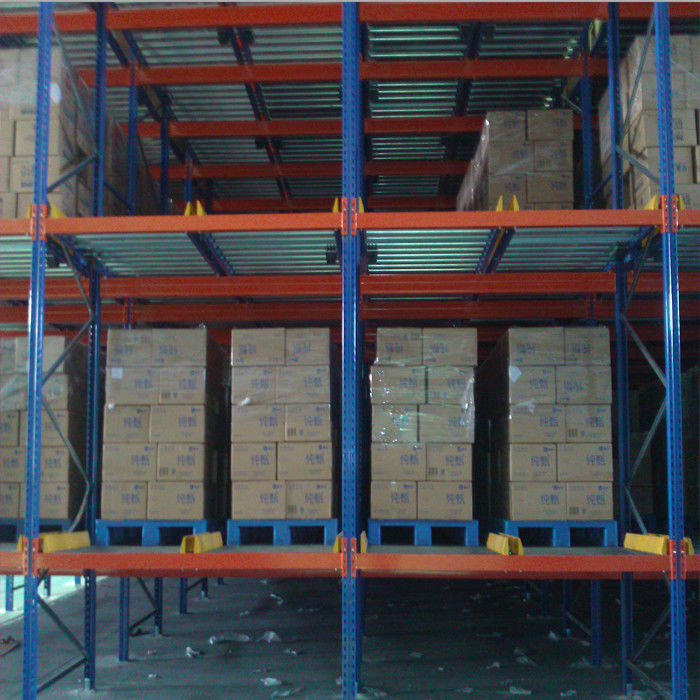

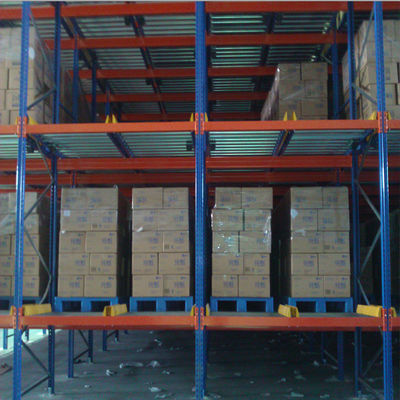

Warehouse Live Storage Gravity Pallet Flow FIFO Racking Systems Vertical Roller racking Racking
Pallet flow racking is also called gravity flow racking or live rack.Below information may help you better understand the pallet flow racking and may eliminate your doubt.
1. How many parts pallet flow racking has?

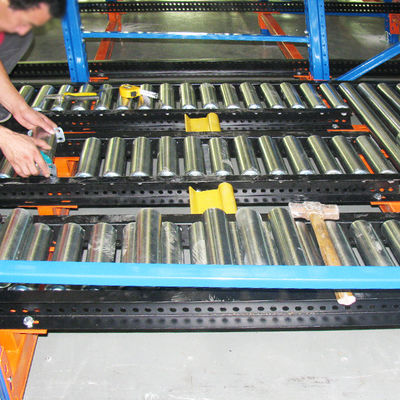

Main parts include upright frame, beam, spacer, roller, damper, separator, roller support rail, rail tie pallet guide plate.Optional part include frame protector, upright protector, forklift stopper.
2. How to control speed of pallet when it work on pallet flow racking?
The speed is controled by damper,when the speed is fast than needed,fasten the damper screw, then you will get speed suit.
3. What is the load it can carry?
Usually the load for one pallet is within 1500kgs.
4. Will the pallet diflect when it flow down?
No,it will not.Debugging will eliminate the situation.
5. How long the pallet flow racking could be?
For the time being, the longest we did is 20m, if you need longer,we don't think there is problem.
6. What is the characteristics of pallet flow racking?
- Very high density storage capability
- Goods first in,first out
- Convenient
- Suitable for goods in small species and large quantity.Usually one tunnel for one goods type.
- High cost
7. How can i know which pallet flow racking size suit?
The rack is customized according to client's needs.You just let us know the following information.
- Palletized product size and forklift entry side
- Maximum weight of palletized product
- Available storage area
- Forklift reach height
- Other special requirement
8. Does pallet flow racking has any requirement on pallet structure?
Yes.Steel and plastic pallet suit better,wooden pallet is also ok. Pallet base should easily flow down without obstruction.
| product name | warehouse rack type gravity flow pallet racking and shelving |
| Material | cold-rolled steel ,steel |
| height of rack | customized |
| loading capacity of layer | 200-1000kg/layer |
| Feature | corrosion protection |
| surface treatment | Electrostatic Spray/powder coated or galvanised |
| applied scope | machinery manufacturing industry and building materials market |
Features about gravity flow racking:

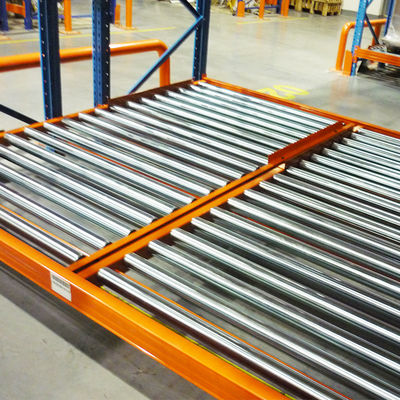

Roller design, the goods slides down driven by gravity
Separation structure positioned at the end of rack, for easy retrieval of pallet
First In First Out(FIFO)
Reduced aisle space
Very high storage density, high space utilization
Fast and quick access to products stored
Easy visibility and an ergonomic picking interface which saves unloading time and increasing picking accuracy
Versatile — Well-suited to refrigerator or freezer storage applications
Minimal maintenance, stable and reliable
Reduced damage rate cause by forklift
FAQ:
1. Q: What's your trading terms?
1) Payment terms: T/T 30% deposit after order confirmed, 70% balance paid against bill of lading.
2) Lead time: normally in 20-25 days after deposit received.
3) Sample policy: samples are always available for each model. Samples can be ready in 7-15 days once payment received.
4) Shipping port: Shanghai / Nanjing Port
2. Q: What is your service?
1) Your inquiry related to our products or price will be replied in 12 hours.
2) Well-trained and experienced staffs to answer all your inquiries in fluent English.
3) OEM & ODM, any your customized racking we can help you to design product.
4) We have very experienced professional engineers to make best solutions.
3. Q: Do you have any reference for assembling the products ?

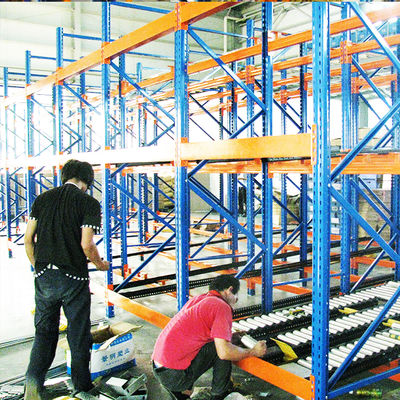

Yes, we offer assembly manual and we can provide you instructor engineer to your warehouse if needed.
4. Q: What's the international trading process?
Design drawing → Confirm drawing → Quotation → PI → Confirm PI → Arrange 30% deposit → Manufacture → QC inspect → Pay balance →Shipping.
5. Q: What's your advantage?
1) rush order we can fast delivery.
2) factory direct sale competitive price.
3) experienced professional engineers.
6. Q: How does charge tooling fee (cost of opening new mold)?
For the production of necessary tooling requirement, charges the cost before the first order for opening new mold, and the cost will be partially or fully refunded after certain quantity of orders.
7. Q: What is your online contact ?
Mobile/wechat/whatsapp : 008615856992259
