2000mm Length Display Steel Plate Medium Duty Shelving For Pharmacy Shop
Product Details:
| Place of Origin: | Anhui |
| Brand Name: | HYD |
| Certification: | CE & ISO |
| Model Number: | HYD-LS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 30-60 per set |
| Packaging Details: | Plastic banding+Stretch film wrapped |
| Delivery Time: | 20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Material: | Steel / Q235 / Q345 | Usage: | Pharmacy Storage |
|---|---|---|---|
| Loading Capacity: | 100-300kgs | Color: | Ral Color System |
| Finish: | Powerder Coated | Feature: | Storage Shelving |
| Size: | Customized | HS Code: | 73089000 |
| Highlight: | Pharmacy Shop Medium Duty Shelving,2000mm Length Medium Duty Shelving,2000mm Length Display Racks |
||
Product Description
2000mm Length Display Racks Steel Plate Medium Duty Shelving For Pharmacy Shop
Medium duty shelving composed of column pieces, beams, laminates,step beam or angle iron welded beam,steel panel or wire decking panel or wooden panel.
1. Column plate: two columns, horizontal support, diagonal support, etc.; The assembly structure is simple, convenient, economical and beautiful;
2. Beam: by the left and right column clamp and beam rod welding, beam using ladder pipe; The column clamp is formed by integral stamping; The beam and the column piece are connected by the column card, and the safety pin is equipped to ensure the safety performance of the shelf. In structure, the beam has the characteristics of light weight, large bearing capacity and beautiful appearance;
3. Laminate: composed of panel, reinforcement (brace), head three parts; The three parts are processed by spot welding, and the solder joint is beautiful and smooth;
4, The laminates can be up and down every /50mm up and down free adjustment. The uniform bearing capacity of each layer is generally not more than 200-600kg per layer;
55 Profile Longspan shelving Specificatons
Easy to dismantle and assemble without any nuts & bolts and tools
Bolt Free medium rack is structured to enable 250~400kg load per layer . Height could be easily adjusted by 50mm in pitch .
|
Size :L×W(mm) |
Height(mm) |
Loading KG/layer shelf thickness:40mm |
|
1200×470 |
1500~2400 |
300 |
|
1200×600 |
1500~2400 |
350 |
|
1200×720 |
1500~2400 |
350 |
|
1200×920 |
1500~2400 |
450 |
|
1500×600 |
1500~2400 |
300 |
|
1500×1180 |
1500~2400 |
450 |
|
1800×470 |
1500~2400 |
250 |
|
1800×720 |
1500~2400 |
250 |
|
1800×1180 |
1500~2400 |
400 |
|
surface treatment |
powder coated |
|
|
upright profile |
55 profile , 50mm pitch |
|
60 Profile Longspan shelving Specificatons
|
Frame Width(mm) |
Frame Height(mm) |
Beam Length(mm) |
|
400 |
1800 |
800 |
|
450 |
2000 |
1000 |
|
500 |
2500 |
1200 |
|
600 |
3000 |
1500 |
|
700 |
3500 |
1800 |
|
800 |
4000 |
2000 |
|
900 |
4500 |
2300 |
|
1000 |
5000 |
2500 |
|
Surface Treatment: Powder Coating |
||
Feature
1. Can be customized to well fit your storage area.
2. Bolted frame and plug-in beam .
3. Powder coated anti-corrossion surface last for 5 years.
4. Elegant and compact out-shape.
5. Loading weight: 100kg to 600kg per layer

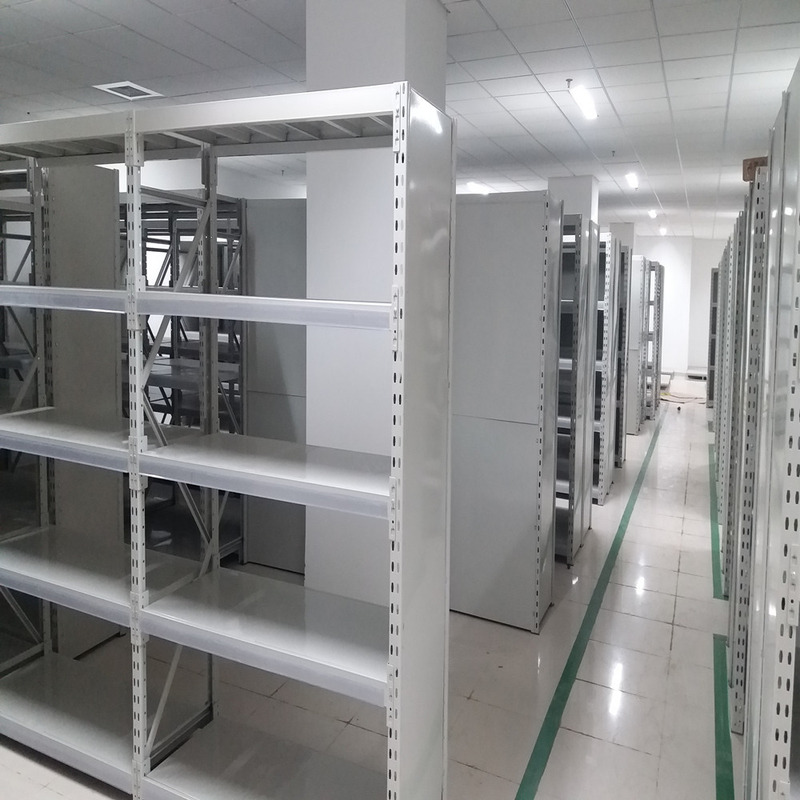

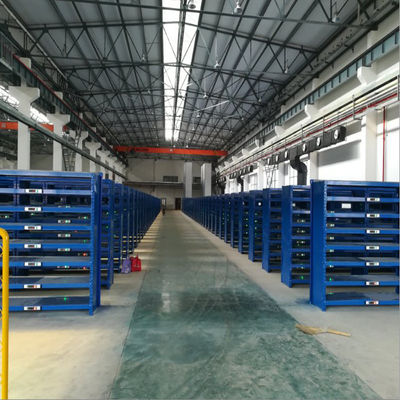

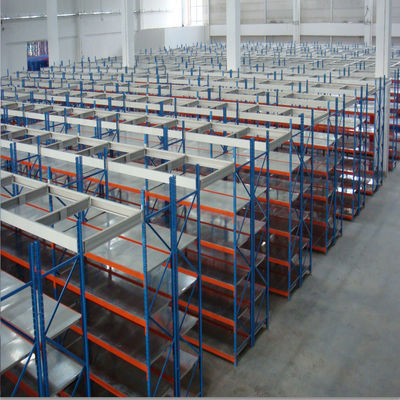

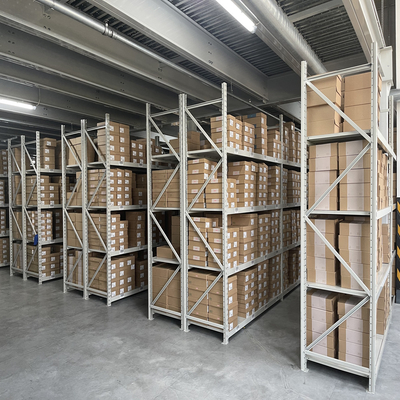

Pictures as below
